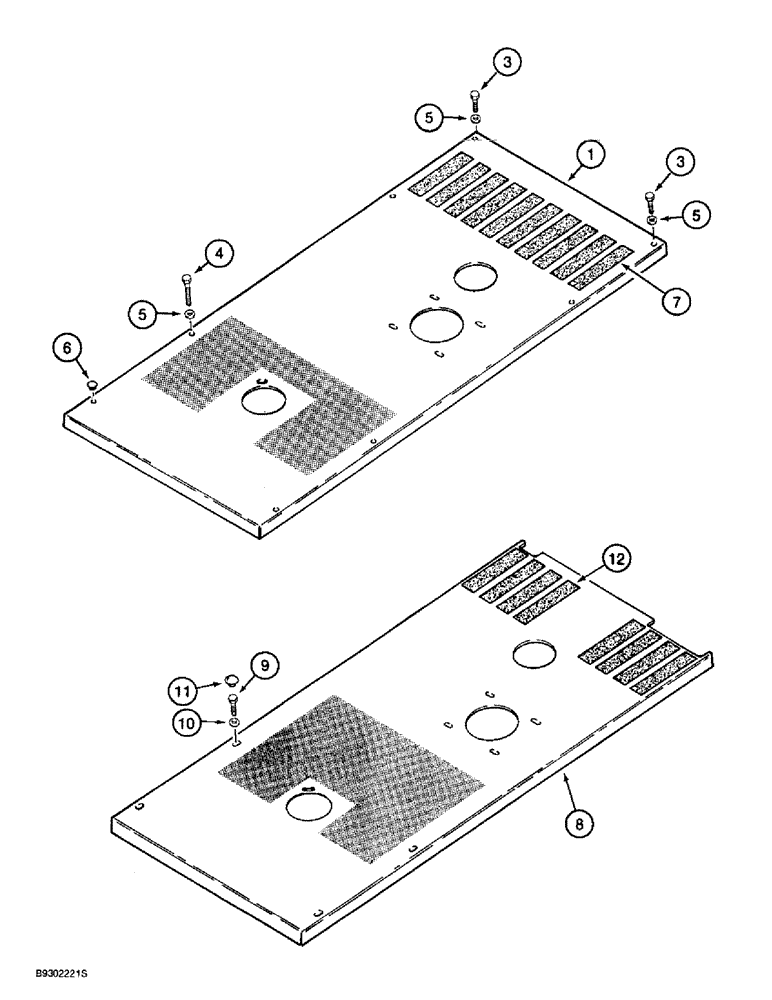

Запчасти Case 721B (9-030) - HOOD, MODELS WITHOUT AIR CONDITIONING (09) - CHASSIS/ATTACHMENTS

1

L128279

HOOD

- engine top, use on units without air conditioning, brown

1шт.

1

194198A1

HOOD ASSY.

HOOD - engine top, use on units without air conditioning, tan

1шт.

3

426-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

- hex, 3/8 NC x 1-1/2 inch, grade 8

2шт.

4

113-250

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5, Full Thd

6шт.

5

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

- flat, 13/32 x 1-1/16 x 3/32 inch, hardened

8шт.

6

353-413

PLUG,Dome, 1.187" hole, Nylon

- button, 1-3/16 inch

8шт.

7

D55216

PAD,2" x 9"

PAD - anti-skid, upper hood, front

10шт.

8

L128281

HOOD

- engine top, use on units with air conditioning, brown

1шт.

8

193191A1

HOOD ASSY.

HOOD - engine top, use on units with air conditioning, tan

1шт.

9

113-250

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5, Full Thd

Models w/ air conditioning Hex, 3/8"-16 x 2 1/2", G5, Full Thd

4шт.

10

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

- flat, 13/32 x 1-1/16 x 3/32 inch, hardened, models w/air conditioning

4шт.

11

353-413

PLUG,Dome, 1.187" hole, Nylon

- button, 1-3/16 inch, models w/ air conditioning

4шт.

12

D55216

PAD,2" x 9"

PAD - anti-skid, upper hood, front, models w/ air conditioning

8шт.
