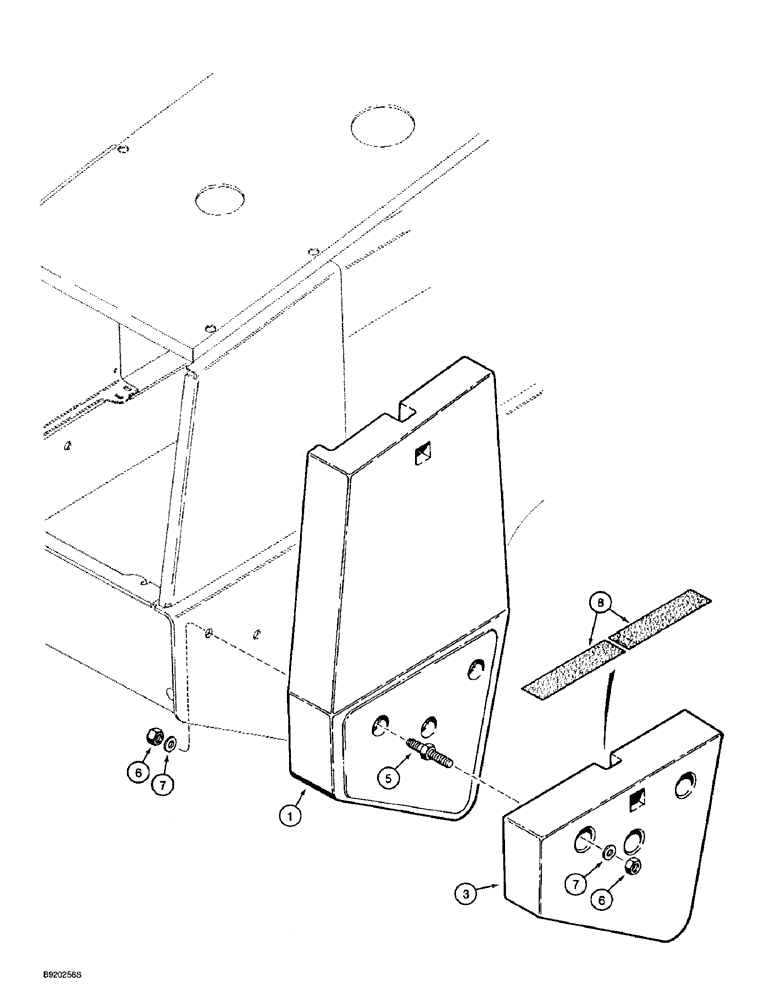

Запчасти Case 721B (9-026) - COUNTERWEIGHTS, 3400 POUND TOTAL WEIGHT (09) - CHASSIS/ATTACHMENTS

1

L125464

BALANCER

COUNTERWEIGHT - 1200 pound, right-hand rear

1шт.

2

L125465

BALANCER

COUNTERWEIGHT - 1200 pound, left-hand rear, not shown

1шт.

3

L125468

BALANCER

COUNTERWEIGHT - 500 pound, right-hand rear

1шт.

4

L125469

BALANCER

COUNTERWEIGHT - 500 pound, left-hand rear, not shown

1шт.

5

L129901

STUD

- threaded, replaces L125463

6шт.

6

429-1016

NUT,1"-8, G8

- hex, 1 inch NC, grade 8

12шт.

7

496-21106

WASHER,1 1/16" x 2" x .209", HDN

- flat, 1-1/16 x 2 x 13/64 inch, Hardened

12шт.

8

S243101

WEAR PAD

PAD - anti-skid, cut from S84068 bulk trim, see below

4шт.

S84068

ADHESIVE STRIP

TRIM - bulk, 18288 mm (720 inch) long, Serial Range: cut-length

1шт.
