(9-024) - COUNTERWEIGHTS, 2400 POUND TOTAL WEIGHT

Запчасти Case 721B (9-024) - COUNTERWEIGHTS, 2400 POUND TOTAL WEIGHT (09) - CHASSIS/ATTACHMENTS

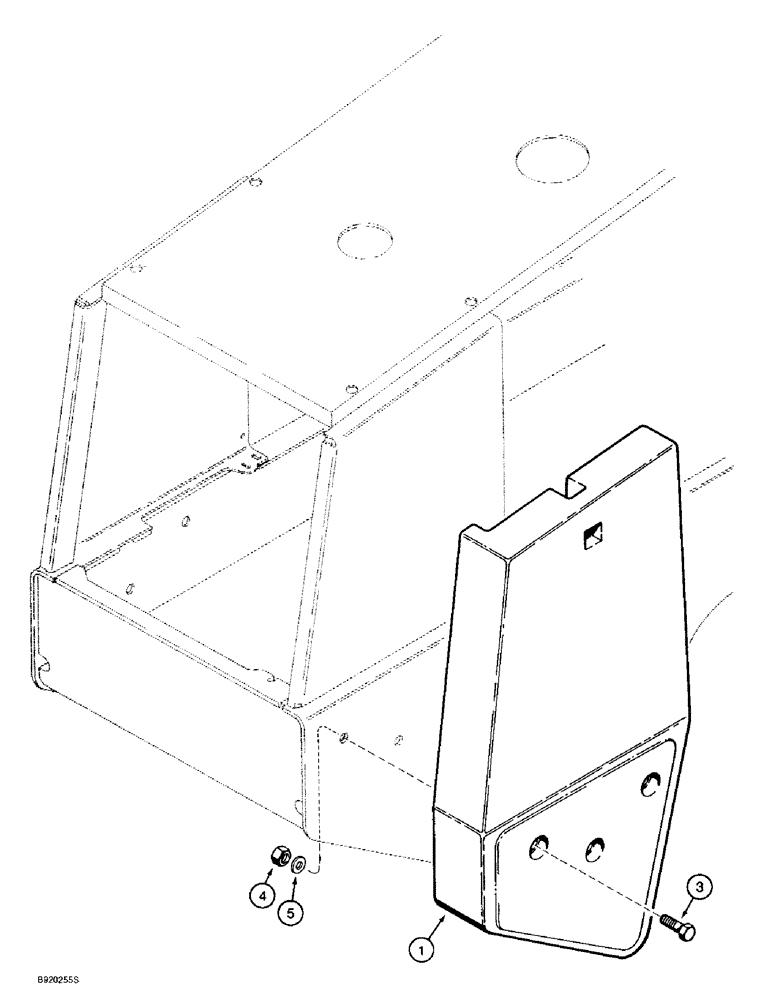

Схема запчастей Case 721B - (9-024) - COUNTERWEIGHTS, 2400 POUND TOTAL WEIGHT (09) - CHASSIS/ATTACHMENTS
4
3
1
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

L125464

BALANCER

COUNTERWEIGHT - 1200 pound, right-hand rear

1шт.

2

L125465

BALANCER

COUNTERWEIGHT - 1200 pound, left-hand rear, not shown

1шт.

3

326-1652

BOLT,Hex, 1" - 8 x 3-1/4", Gr 8

6шт.

4

429-1016

NUT,1"-8, G8

- hex, 1 inch NC, grade 8

6шт.

5

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- flat, special, 1-1/16 x 1-7/8 x 9/64 inch

6шт.
