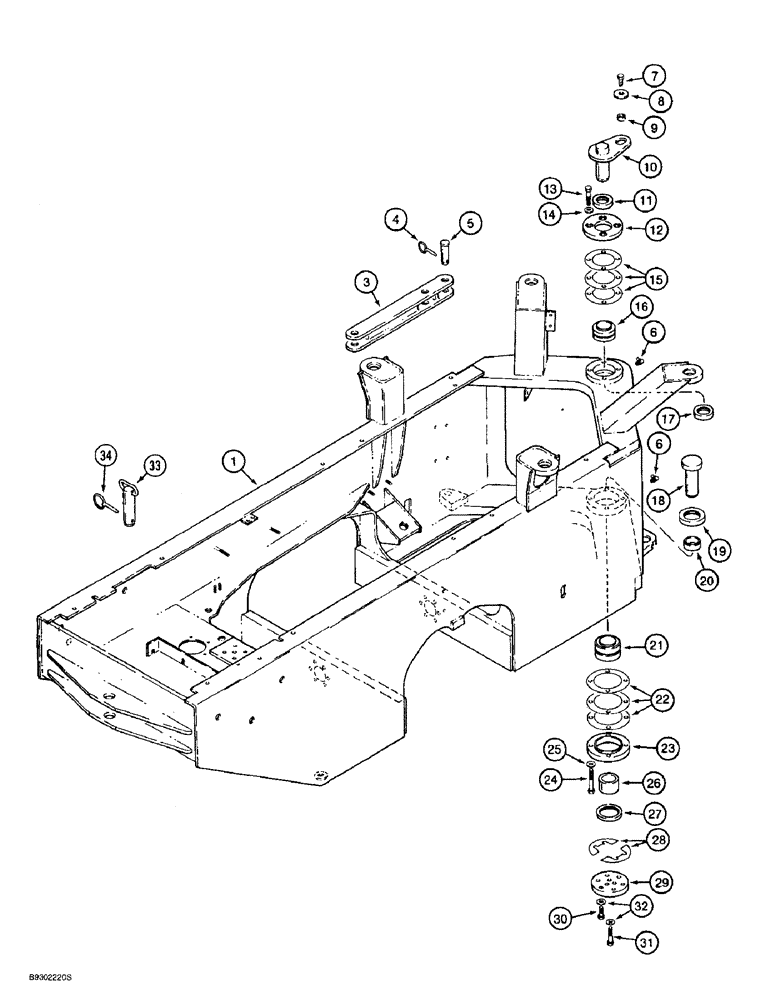

Запчасти Case 721B (9-022) - REAR FRAME AND PIVOT (09) - CHASSIS/ATTACHMENTS

1

108213A2

CHASSIS

FRAME - rear, includes fuel tank, Serial Range: -JEE0053200

1шт.

2

246429A1

FRAME - rear, includes fuel tank, not shown, Start Serial: JEE0043200

1шт.

3

L124505

PITMAN ASSY.

LINK - transport/service

1шт.

4

A30338

PIN

- lock

2шт.

5

A164277

PIN,31.75mm OD x 107.95mm L

- lock, transport/service link

2шт.

6

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

7

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

1шт.

8

496-81025

WASHER,21/32" x 2 1/2" x .188", HDN

1шт.

9

L125100

SPACER,17.48mm ID x 31.75mm OD x 14.3mm Thk

- 14.3 mm (9/16 inch), upper pin

1шт.

10

L118861

HANDLED SHAFT

PIN - upper pivot

1шт.

11

L118973

SEAL,57.15mm ID x 89.03mm OD x 12.7mm Thk

- upper, upper articulation plate

1шт.

12

L118901

COVER

RETAINER - upper pivot

1шт.

13

426-848

BOLT,Hex, 1/2" - 13 x 3", Gr 8

- hex, 1/2 NC x 3 inch, grade 8

4шт.

14

496-21053

WASHER,17/32" x 1 1/16" x .134"

4шт.

15

L118987

SHIM,0.1mm Thk

Upper pivot 0.1mm Thk

1шт.

15

L119202

SHIM,0.25mm Thk

Upper pivot 0.25mm Thk

1шт.

15

L118986

SHIM,0.5mm Thk

Upper pivot 0.5mm Thk

1шт.

16

L118856

TAPERED BEARING,57.15mm ID x 100mm OD x 42mm W

BEARING - tapered roller

1шт.

17

L126169

SEAL,57.15mm ID x 89.03mm OD x 12.7mm Thk

- upper, upper articulation plate

1шт.

18

L118857

PIVOT PIN,63.48mm OD x 191.75mm L

PIN - lower pivot

1шт.

19

L118978

SEAL,79.38mm ID x 108.05mm OD x 12.7mm Thk

- upper, lower pivot

1шт.

20

L118862

SPACER,63.55mm ID x 79.4mm OD x 28.6mm L

- upper, lower pivot bearing

1шт.

21

L118868

TAPERED BEARING,63.51mm ID x 122.24mm OD x 76.71mm W

BEARING - lower pivot

1шт.

22

L118990

SHIM,124mm ID x 190mm OD x 0.11mm Thk

Lower pivot 0.1mm Thk

1шт.

22

L119203

SHIM,124mm ID x 190mm OD x 0.28mm Thk

- 0.25 mm thick, lower pivot

1шт.

22

L118989

SHIM,124mm ID x 190mm OD x 0.54mm Thk

Lower pivot 0.5mm Thk

1шт.

23

L118902

COVER

RETAINER - lower pivot

1шт.

24

426-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 8

- hex, 1/2 NC x 4-1/2 inch, grade 8

4шт.

25

496-21053

WASHER,17/32" x 1 1/16" x .134"

4шт.

26

L118858

SPACER,63.54mm ID x 79.4mm OD x 56.45mm L

- lower, lower pivot bearing

1шт.

27

L126168

SEAL,79.38mm ID x 108.05mm OD x 11.89mm Thk

- lower, lower pivot

1шт.

28

L118983

SHIM,90mm ID x 160mm OD x 0.11mm Thk

One half, Lower plate 0.1mm Thk

1шт.

28

L118980

SHIM,90mm ID x 160mm OD x 0.28mm Thk

One half, Lower plate 0.25mm Thk

1шт.

28

L118982

SHIM,90mm ID x 160mm OD x 0.54mm Thk

One half; Lower plate 0.5mm Thk

1шт.

29

L128375

PLATE

- lower pin, lower pin

1шт.

30

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

- hex, 1/2 NC x 1-1/2 inch, grade 8

6шт.

31

426-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 8

- hex, 1/2 NC x 2-1/2 inch, grade 8

3шт.

32

496-21053

WASHER,17/32" x 1 1/16" x .134"

SPACER - 13 x 25 x 28 mm

9шт.

33

L104989

STOP

PIN - drawbar, if used

1шт.

34

D33805

PIN

- locking, if used

1шт.
