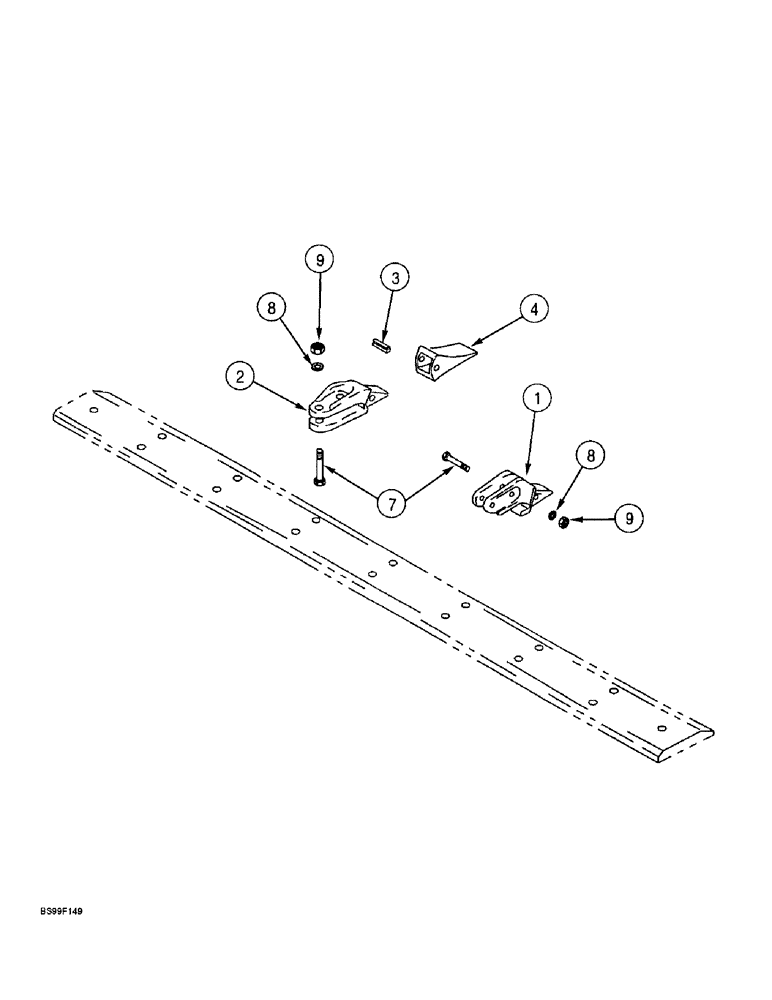

Запчасти Case 721B (9-021A) - LOADER BUCKET TEETH (ESCO), Z-BAR LOADER, 1.9 C.M.(2.5 C.Y.), 2.1 C.M.(2.75 C.Y,) AND CLAM BUCKETS (09) - CHASSIS/ATTACHMENTS

254819A1

TOOTH

ASSEMBLY - bucket, center, marked ESCO, Includes: Ref. 1 - 6

7шт.

For H and L teeth see figures 9-16 - 9-20. ESCO and H and L teeth should not be mixed on the same bucket.

1шт.

254818A1

TOOTH

ASSEMBLY - bucket, corner, marked ESCO, Includes: Ref. 1 - 6

2шт.

For H and L teeth see figures 9-16 - 9-20. ESCO and H and L teeth should not be mixed on the same bucket.

1шт.

1

NSS

NOT SOLD SEPARAT

SHANK - bucket, corner

1шт.

2

NSS

NOT SOLD SEPARAT

SHANK - bucket, center

1шт.

3

254815A1

PIN

- flex, point retaining

1шт.

4

254820A1

TOOTH

POINT - tooth, standard

1шт.

5

254822A1

TOOTH

POINT - tooth, abrasion, not shown

1шт.

6

254823A1

BUCKET TOOTH

POINT - tooth, penetration, not shown

1шт.

7

426-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 8

18шт.

8

496-11081

WASHER,13/16" x 1 1/2" x .134", HDN

Flat 13/16" x 1 1/2" x .134", HDN

18шт.

9

425-1612

NUT,3/4"-10, G5, Hvy

Hex 3/4"-10, G5, Hvy

18шт.
