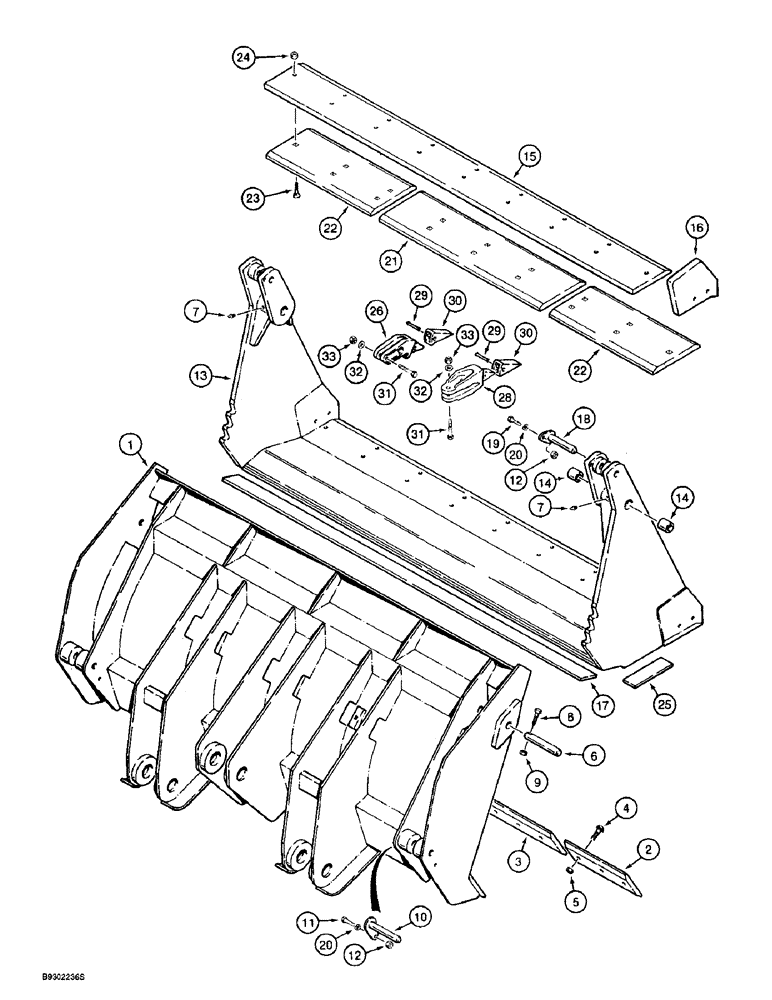

Запчасти Case 721B (9-020) - AUXILIARY BUCKET, Z-BAR LOADER (09) - CHASSIS/ATTACHMENTS

L127210

BUCKET

ASSEMBLY - clam, order from Machinery Parts List, 1.9 cubic meter, (2.5 cubic yard), includes Ref. 1 - 15 on figure 8-18, Includes: Ref. 1 - 1 - 20

1шт.

See figure 8-18 for auxiliary bucket hydraulics and figure 8-56 for the auxiliary cylinder assembly.

1шт.

1

NSS

NOT SOLD SEPARAT

BLADE - bucket

1шт.

2

S300145

EDGE, CUTTING

EDGE - cutting, outer

2шт.

3

S300772

EDGE, CUTTING

EDGE - cutting, center

1шт.

4

20-21232

PLOW BOLT,#3, 3/4" - 10 x 2", Gr 8

BOLT, PLOW, 3/4"-10 x 2", G8, Full Thd

17шт.

5

329-1012

NUT,3/4"-10, G8

17шт.

6

S300141

PIVOT PIN

PIN, PIVOT -, Serial Range: Clam-blade

2шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

8

426-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 8

2шт.

9

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

10

S300143

PIN

- Mounting, lower

2шт.

11

326-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

2шт.

12

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

13

181806A1

CLAW

CLAM ASSEMBLY - bucket

1шт.

14

S300154

BUSHING

- clam

4шт.

15

S300774

EDGE, CUTTING

EDGE - cutting, clam, weld on, front

1шт.

16

S300157

EDGE, CUTTING

BRACE - corner

2шт.

17

S300773

LARGE PLATE

PLATE - compaction, rear

1шт.

18

S301631

PIN

- mounting, upper, replaces S300142

2шт.

19

426-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

- hex, 1/2 NC x 1-1/4 inch, grade 8

2шт.

20

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

21

L127038

EDGE, CUTTING

EDGE - cutting, center, bolt on, bucket wear plates

1шт.

22

L127429

EDGE, CUTTING

EDGE - cutting, bolt-on cutting edge & bucket wear plates

2шт.

23

L127054

PLOW BOLT,#3, Dome Hd, 3/4" - 10 x 3", Gr 8

BOLT - plow, 3/4 NC x 3 inch, grade 8, bolt-on cutting edge & bucket wear plates

16шт.

24

429-1012

NUT,3/4"-10, G8

- hex, 3/4 inch NC, grade 8, bolt-on cutting edge & bucket wear plates

16шт.

25

L129482

LARGE PLATE

PLATE - wear, bolt-on cutting edge & bucket wear plates

5шт.

L126938

TOOTH

ASSEMBLY - bolt-on cutting edge & bucket wear plates, Includes: Ref.

2шт.

For ESCO teeth see figure 9-21A. ESCO teeth and H and L teeth should not be mixed on the same bucket.

1шт.

L129666

TOOTH

ASSEMBLY - bucket, center, marked H and L, if used, Includes: Ref. 26 - 30

7шт.

For ESCO teeth see figure 9-21A. ESCO teeth and H and L teeth should not be mixed on the same bucket.

1шт.

26

NSS

NOT SOLD SEPARAT

TOOTH - bucket, corner

1шт.

28

NSS

NOT SOLD SEPARAT

TOOTH - bucket, center

1шт.

29

L32090

PIN

PIN - flex, point retaining, bucket teeth

1шт.

30

D55468

TOOTH

- tooth, standard forged, bucket

1шт.

31

326-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 8

Bucket teeth Hex, 3/4"-10 x 3 1/2", G8

18шт.

32

496-11081

WASHER,13/16" x 1 1/2" x .134", HDN

Flat, Bucket teeth 13/16" x 1 1/2" x .134", HDN

18шт.

33

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

Bucket teeth 3/4"-10, G5, Hvy

18шт.
