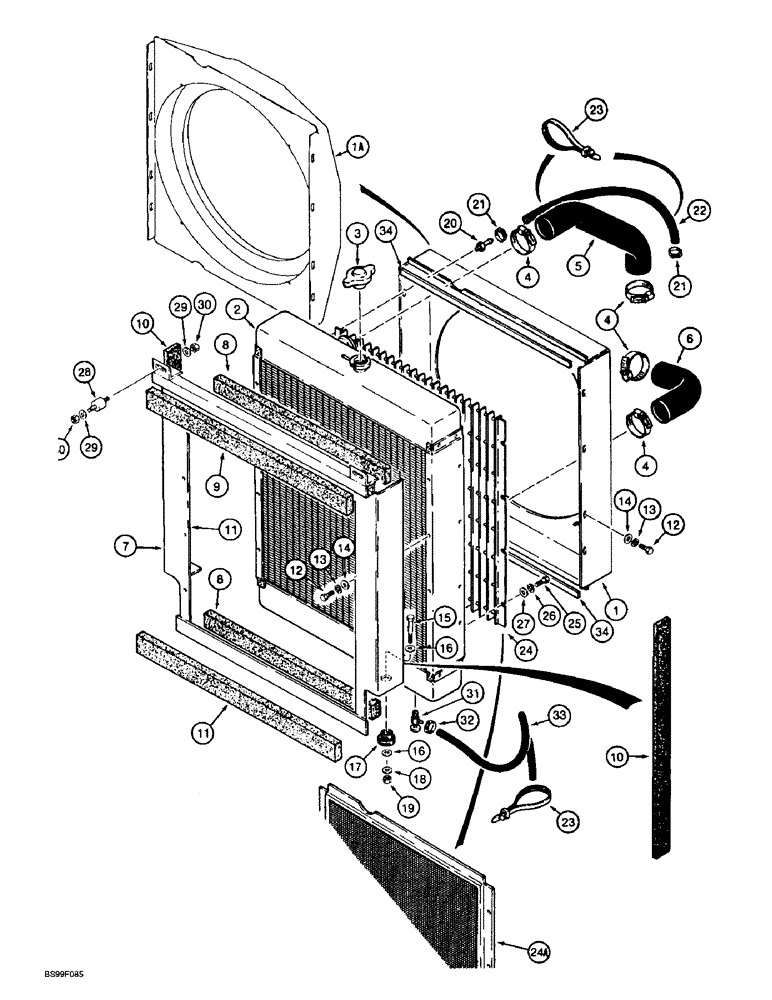

Запчасти Case 721B (2-04) - RADIATOR AND RADIATOR MOUNTING (02) - ENGINE

1

A190621

SHROUD

- radiator

1шт.

1a

246598A1

SHROUD

- radiator, Start Serial: JEE0052300

1шт.

2

133080A2

RADIATOR

- engine cooling, standard, if used

1шт.

2

131230A2

RADIATOR

- engine cooling, armor core, if used

1шт.

3

A170241

RADIATOR CAP

CAP, RADIATOR, Filler, 15 psi

1шт.

4

214-3148

HOSE CLAMP,2-1/4" - 3-1/8", HD Worm

CLAMP - adj, 2-1/4 - 3-1/8 inch dia

4шт.

5

L125159

RADIATOR HOSE,56.80 mm ID x 380.00 mm, SAE 20R4 Class SC or D-1

Formed 56.80 mm ID x 380.00 mm, SAE 20R4 Class SC or D-1

1шт.

6

L127973

RADIATOR HOSE,56.80 mm ID x 180.00 mm, SAE 20R4 Class C or D-1

- Formed 56.80 mm ID x 180.00 mm, SAE 20R4 Class C or D-1

1шт.

7

111133A1

SUPPORT

- radiator

1шт.

8

L127665

SEAL

- adhesive backed, 676 mm (26-5/8 inch) long, upper and lower support

2шт.

9

L128306

SEALING STRIP,50mm W x 765mm L x 38mm Thk

- adhesive backed, 765 mm (30-1/8 inch) long, upper

1шт.

10

L127666

SEALING STRIP,25mm W x 787mm L x 25mm Thk

- adhesive backed, 787 mm (31 inch) long, support sides

2шт.

11

L128353

FOAM INSULATION,61mm W x 765mm L x 10mm Thk

- adhesive backed, 765 mm (30-1/8 inch) long, lower

1шт.

12

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, full threads, 8 - 1.25 x 20 mm

16шт.

13

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

16шт.

14

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32") 5/16"

16шт.

15

426-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 8

- hex, 1/2 NC x 2-1/2 inch, grade 8

2шт.

16

495-81239

WASHER,17/32" x 2 1/4" x .180"

- flat, 17/32 x 2-1/4 x 3/16 inch

4шт.

17

L46821

SHOCK ABSORBER

INSULATOR - rubber mount

2шт.

18

187563A1

SPACER

- 13 x 25 x 28 mm

2шт.

19

231-1448

NUT,1/2"-13, GB

- hex, self-locking, 1/2 inch NC

2шт.

20

217-151

FITTING,3/8" Hose Barb x 1/4" Male NPTF

Adapter - straight 3/8" Hose X 1/4" NPTF Beaded

1шт.

21

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

CLAMP, HOSE, , Adj. #06, .44/.78 Type F Worm

2шт.

22

A161557

HOSE,9.60 mm ID x 558.80 mm, SAE 20R3

- Air vent, Radiator 9.60 mm ID x 558.80 mm, SAE 20R3

1шт.

23

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

24

L128092

SCREEN

- sand, grille, if used

1шт.

24a

A189215

SCREEN

- sand, honeycomb, if used

1шт.

25

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm

8шт.

26

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

8шт.

27

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

8шт.

28

L127163

BOLT

MOUNT - isolation

2шт.

29

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

- flat, 13/32 x 1-1/16 x 3/32 inch, hardened

4шт.

30

131-206

NUT,3/8"-16

NUT - heavy hex, self-locking, 3/8 inch NC

4шт.

31

A27862

COCK, DRAIN

VALVE - drain, radiator

1шт.

32

A171099

HOSE CLAMP,13.2mm - 15.4mm

CLAMP - spring-type

1шт.

33

D71599

HOSE,6.40 mm ID x 1016.00 mm, SAE 30R6 or SAE 30R7

FUEL HOSE, , Cut From A21561 Hose, See Below 6.40 mm ID x 1016.00 mm, SAE 30R6 or SAE 30R7

1шт.

34

120112A1

INSULATOR,30mm W x 725mm L x 10mm Thk

- shroud, upper and lower

2шт.

A21561X

HOSE,6.35mm ID x 7620mm L

- bulk, 6 (1/4) x 13 (1/2) x 7620 mm (300 inch) long

1шт.
