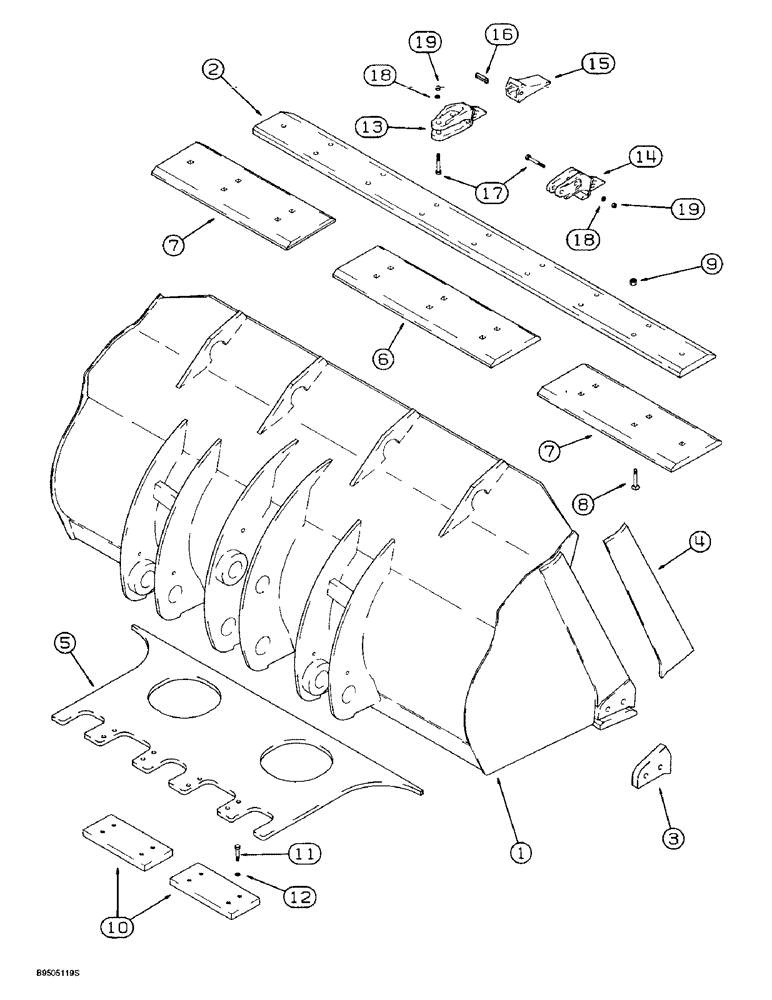

Запчасти Case 721B (9-017A) - LOADER BUCKETS AND CUTTING EDGES, 2.50 AND 2.75 CUBIC YARD, Z BAR LOADER (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
130257A1
BUCKET
ASSEMBLY loader, 1.9 cubic meter (2.50 cubic yard), order from Machinery Price List, Includes: Ref. 1 - 5
1шт.
1
NSS
NOT SOLD SEPARAT
BUCKET - loader
1шт.
2
L127427
EDGE, CUTTING
EDGE - cutting, bucket, weld-on
1шт.
3
115620A1
EDGE
EDGE - cutting, bucket corner, weld-on
2шт.
4
130253A1
EDGE
EDGE - cutting, bucket side, weld-on
2шт.
5
130256A1
PLATE
PLATE - wear
1шт.
112094A1
BUCKET
BUCKET ASSEMBLY loader, 2.1 cubic meter (2.75 cubic yard), order from Machinery Price List, Includes: Ref. 1 - 5
1шт.
1
NSS
NOT SOLD SEPARAT
BUCKET - loader, 2.1 cubic meter (2.5 cubic yard) bucket
1шт.
2
L127427
EDGE, CUTTING
EDGE - cutting, bucket, weld-on, 2.1 cubic meter (2.5 cubic yard) bucket
1шт.
3
115620A1
EDGE
EDGE - cutting, 2.1 cubic meter (2.5 cubic yard) bucket
2шт.
4
112100A1
EDGE
EDGE - cutting, 2.1 cubic meter (2.5 cubic yard) bucket
2шт.
5
112104A1
LARGE PLATE
PLATE, LARGE PLATE - wear, bolt-on, 130257A1 or 112094A1 Bucket
1шт.
6
L127038
EDGE, CUTTING
EDGE - cutting, center, bolt-on, 130257A1 or 112094A1 Bucket
1шт.
7
L127429
EDGE, CUTTING
EDGE - cutting, bolt-on, 130257A1 or 112094A1 Bucket
2шт.
8
L127054
PLOW BOLT,#3, Dome Hd, 3/4" - 10 x 3", Gr 8
BOLT - plow, 3/4 NC x 3 inch, grade 8, bolt-on, 130257A1 or 112094A1 Bucket
16шт.
9
429-1012
NUT,3/4"-10, G8
hex, NC, bolt-on, 130257A1 or 112094A1 Bucket
16шт.
10
131994A1
PLATE
PLATE - wear, bolt-on, 130257A1 or 112094A1 Bucket
2шт.
11
426-1024
BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8
Bolt-on, 130257A1 or 112094A1 Bucket
8шт.
12
T53567
BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk
WASHER - flat, special, hardened, bolt-on, 130257A1 or 112094A1 Bucket
8шт.
130257A1
BUCKET
BUCKET - bolt-on, cutting edge, see Refs 6-12, bucket teeth 130257A1 or 112094A1
1шт.
112094A1
BUCKET
BUCKET - bolt-on, cutting edge, see Refs 6-12, bucket teeth 130257A1 or 112094A1
1шт.
L129666
TOOTH
TOOTH ASSEMBLY - bucket teeth 130257A1 or 112094A1, Includes: Ref. 13 - 16
7шт.
For ESCO teeth see figure 9-21A. ESCO teeth and H and L teeth should not be mixed on the same bucket.
1шт.
L126938
TOOTH
TOOTH ASSEMBLY - bucket teeth 130257A1 or 112094A1, Includes: Ref. 13 - 16
2шт.
13
NSS
NOT SOLD SEPARAT
SHANK - bucket, center, 130257A1 or 112094A1
1шт.
14
NSS
NOT SOLD SEPARAT
SHANK - bucket,130257A1 or 112094A1
1шт.
15
D55468
TOOTH
POINT - tooth, standard forged, bucket teeth 130257A1 or 112094A1
1шт.
16
L32090
PIN
PIN - flex, point retaining, bucket teeth 130257A1 or 112094A1
1шт.
17
326-1256
BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 8
Bucket teeth 130257A1 or 112094A1
18шт.
18
496-11081
WASHER,13/16" x 1 1/2" x .134", HDN
Bucket teeth 130257A1 or 112094A1
18шт.
19
129-593
NUT,Hvy Hex, 3/4" - 10, Gr 5
Bucket teeth 130257A1 or 112094A1
18шт.
Выбрано товаров: 31
