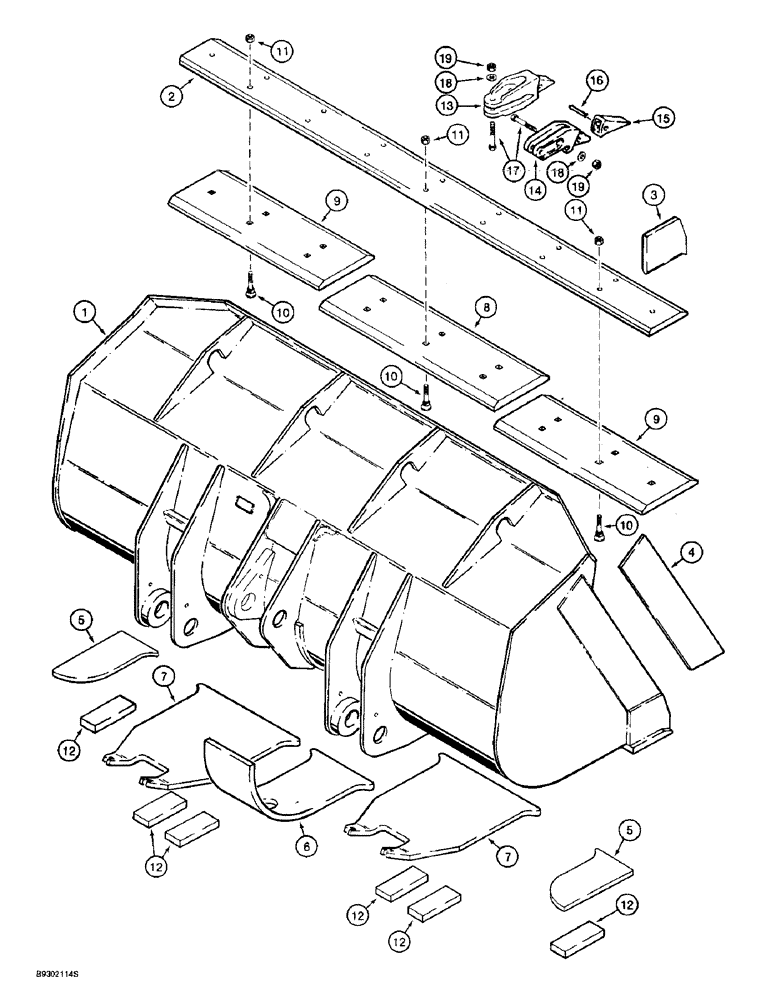

Запчасти Case 721B (9-016) - LOADER BUCKET AND CUTTING EDGES, 2.5 & 2.75 CUBIC YARD BUCKETS, Z BAR LOADER (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
L127460
BUCKET
ASSEMBLY - loader, 1.9 cubic meter (2.5 cubic yard), order from machinery price list, Includes: Ref. 1 - 7
1шт.
1
NSS
NOT SOLD SEPARAT
BUCKET - loader
1шт.
2
L127427
EDGE, CUTTING
EDGE - cutting, bucket, weld-on
1шт.
3
L126115
EDGE, CUTTING
EDGE - cutting, bucket corner, weld-on
2шт.
4
L127472
EDGE, CUTTING
EDGE - cutting, bucket side, weld-on
2шт.
5
L127468
LARGE PLATE
PLATE, LARGE PLATE - wear, outer
2шт.
6
L127470
STIFFENER
PLATE - wear, center
1шт.
7
L127469
LARGE PLATE
PLATE, LARGE PLATE - wear, bucket ear
2шт.
L126850
BUCKET
ASSEMBLY - loader, 2.1 cubic meter (2.75 cubic yard), order from machinery price list, Includes: Ref. 1 - 7
1шт.
1
NSS
NOT SOLD SEPARAT
BUCKET - loader, 2.1 cubic meter (2.5 cubic yard) bucket
1шт.
2
L127427
EDGE, CUTTING
bucket, weld-on, 2.1 cubic meter (2.5 cubic yard) bucket
1шт.
3
L126115
EDGE, CUTTING
bucket corner, weld-on, 2.1 cubic meter (2.5 cubic yard) bucket
2шт.
4
L126133
EDGE, CUTTING
bucket side, weld-on, 2.1 cubic meter (2.5 cubic yard) bucket
2шт.
5
L125741
LARGE PLATE
PLATE, LARGE PLATE - wear, outer, 2.1 cubic meter (2.5 cubic yard) bucket
2шт.
6
L127049
STIFFENER
PLATE - wear, center, 2.1 cubic meter (2.5 cubic yard) bucket
1шт.
7
L126129
LARGE PLATE
PLATE, LARGE PLATE - wear, bucket ear, 2.1 cubic meter (2.5 cubic yard) bucket
2шт.
8
L127038
EDGE, CUTTING
EDGE - cutting, center, bolt-on, for L127460 and L126850 buckets
1шт.
9
L127429
EDGE, CUTTING
EDGE - cutting, bucket corner, bolt on, for L127460 and L126850 buckets
2шт.
10
L127054
PLOW BOLT,#3, Dome Hd, 3/4" - 10 x 3", Gr 8
BOLT - plow, 3/4 NC x 3", Grade 8, bolt-on, for L127460 and L126850 buckets
16шт.
11
429-1012
NUT,3/4"-10, G8
hex, NC, bolt-on, for L127460 and L126850 buckets
16шт.
12
L128081
LARGE PLATE
PLATE, LARGE PLATE - wear, bolt-on, for L127460 and L126850 buckets
6шт.
L126938
TOOTH
ASSEMBLY - bucket corner, marked L & H, if used, for L127460 and L126850 buckets, Includes: Ref. 13 - 16
2шт.
For ESCO teeth see figure 9-21A. ESCO and H and L teeth should not be mixed on the same bucket.
1шт.
L129666
TOOTH
ASSEMBLY - bucket corner, marked L & H, if used, for L127460 and L126850 buckets, Includes: Ref. 13 - 16
7шт.
For ESCO teeth see figure 9-21A. ESCO and H and L teeth should not be mixed on the same bucket.
1шт.
13
NSS
NOT SOLD SEPARAT
SHANK - bucket, corner, for L126938 tooth assembly, bucket teeth L127460 and L126850 buckets
1шт.
14
NSS
NOT SOLD SEPARAT
SHANK - bucket, corner, for L12666 tooth assembly, bucket teeth L127460 and L126850 buckets
1шт.
15
L32090
PIN
PIN - flex, point retaining, bucket teeth L127460 and L126850 buckets
1шт.
16
D55468
TOOTH
POINT - tooth, standard forged, bucket teeth L127460 and L126850 buckets
1шт.
17
326-1256
BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 8
Bucket teeth L127460 and L126850 buckets
18шт.
18
496-11081
WASHER,13/16" x 1 1/2" x .134", HDN
Bucket teeth L127460 and L126850 buckets
18шт.
19
129-593
NUT,Hvy Hex, 3/4" - 10, Gr 5
Bucket teeth L127460 and L126850 buckets
18шт.
Выбрано товаров: 32
