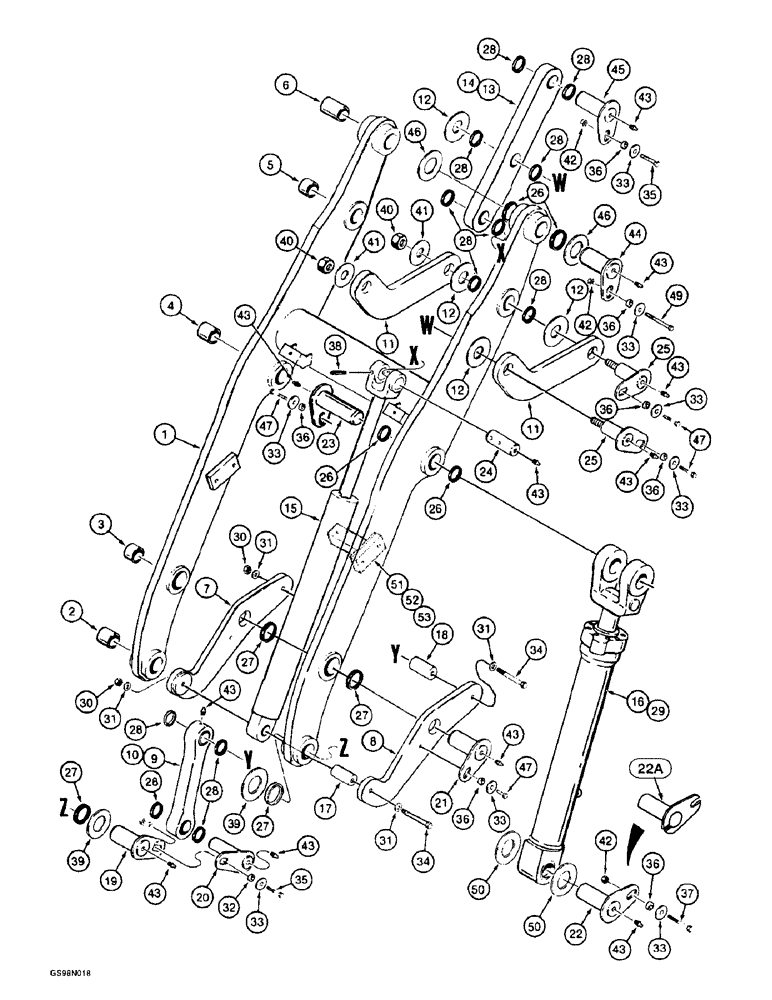

Запчасти Case 721B (9-012) - LOADER LIFT FRAME AND LINKAGE, XT LOADER (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
111724A1
ROCKER ARM
FRAME ASSEMBLY - loader lift, Includes: Ref. 1 - 6
1шт.
1
NSS
NOT SOLD SEPARAT
FRAME - loader lift
1шт.
2
L127014
BUSHING,82.73mm ID x 95.38mm OD x 82mm L
- loader lift frame, at chassis
2шт.
3
111721A1
BUSHING
- loader lift frame
2шт.
4
125306A1
BUSHING
- tube
2шт.
5
111722A1
BUSHING,63.7mm ID x 76.33mm OD x 47mm L
- loader lift frame, replaces 116975A1
2шт.
6
111723A1
BUSHING,76.38mm ID x 89.03mm OD x 50mm L
- loader lift frame
4шт.
7
112263A1
LINK
BELLCRANK - left-hand
2шт.
8
112542A1
LINK
BELLCRANK - right-hand
2шт.
112337A1
LINK,614.15mm L
ASSEMBLY - anchor, Includes: Ref. 9 and 10
2шт.
9
NSS
NOT SOLD SEPARAT
LINK - anchor
1шт.
10
111722A1
BUSHING,63.7mm ID x 76.33mm OD x 47mm L
- bellcrank, replaces 116975A1
2шт.
11
116985A1
LOWER LINK
LINK - guide, left-hand and right-hand
4шт.
12
116893A1
WASHER,65mm ID x 152mm OD x 3.5mm Thk
- hardened
8шт.
116973A1
LINK ASSY.
LINK ASSEMBLY - bucket dump, Includes: Ref. 13 and 14
2шт.
13
NSS
NOT SOLD SEPARAT
LINK - bucket dump
1шт.
14
111722A1
BUSHING,63.7mm ID x 76.33mm OD x 47mm L
- loader bucket dump link, replaces 116975A1
3шт.
15
112551A1
JACK BODY
CYLINDER ASSEMBLY - 114 (4-1/2) ID x 1001 mm (39-13/32 inch) stroke, bucket tilt, parts list figure 8-54
2шт.
16
REF
INSTRUCTION
CYLINDER ASSEMBLY - 127 (5) ID x 834 mm (32-13/16 inch) stroke, right-hand lift, see figures 8-11A, 8-50, and 8-51A for correct assembly and components
1шт.
17
L104342
PIN
- pivot, bellcrank
2шт.
18
112600A1
PIVOT PIN
anchor link
2шт.
19
L118674
PIVOT PIN
PIN - pivot, 255 mm long, lift arm
2шт.
20
112596A1
PIVOT PIN
anchor link
2шт.
21
112604A1
PIVOT PIN
bellcrank
2шт.
22
L128351
PIVOT PIN
PIN - pivot, 249 mm long, lift cylinder, no longer used, order 225775A1, Ref. 22A
2шт.
22a
225775A1
PIVOT PIN
PIN - pivot, bucket
2шт.
23
L127118
HANDLED SHAFT
PIN - pivot, 229 mm long, lift arm
2шт.
24
118563A1
PIN,63.34mm OD x 174mm L
- pivot, tilt cylinder
2шт.
25
116954A1
HANDLED SHAFT
PIN - pivot, guide link
4шт.
26
L128724
SEAL
- pin
8шт.
27
L128725
SEAL,82.55mm ID x 95.38mm OD x 7.9mm Thk
- pin
8шт.
28
113624A1
SEAL,63.5mm ID x 76.2mm OD x 7.9mm Thk
- pin
24шт.
29
REF
INSTRUCTION
CYLINDER ASSEMBLY - 127 (5) ID x 834 mm (32-13/16 inch) stroke, left-hand lift, see figures 8-11A, 8-50, and 8-51A for correct assembly and components
1шт.
30
129-593
NUT,Hvy Hex, 3/4" - 10, Gr 5
4шт.
31
D34666
WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk
- flat, special, 3/4 inch
8шт.
32
122297A1
SPACER
- pin mounting
2шт.
34
426-12120
BOLT,Hex, 3/4" - 10 x 7-1/2", Gr 8
- hex, 3/4 NC x 7-1/2 inch, grade 8
4шт.
35
426-1040
BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8
- hex, 5/8 NC x 2-1/2 inch, grade 8
4шт.
36
L125100
SPACER,17.48mm ID x 31.75mm OD x 14.3mm Thk
- 14.3 mm (9/16 inch)
14шт.
37
426-1036
BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8
- hex, 5/8 NC x 2-1/4 inch, grade 8
2шт.
38
38-33264
PIN,12.7mm OD x 101.6mm L, Coiled
2шт.
39
L129131
WASHER,83.8mm ID x 152mm OD x 3.02mm Thk
- flat, special
4шт.
40
131-53
NUT,1 1/2"-12
NUT - thin hex, self-locking, 1-1/2-12 inch
4шт.
41
117025A1
WASHER,40mm ID x 127mm OD x 6.35mm Thk
- hardened
4шт.
42
231-14410
NUT,5/8"-11, GB
NUT, LOCK, 5/8"-11, GB
6шт.
43
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease, straight, 1/8 PT x 21/32 inch
22шт.
44
113893A1
PIN,76.05mm OD x 246mm L
- lift arm tip
2шт.
45
113952A1
PIN,63.34mm OD x 203mm L
- dump link tip
2шт.
46
L118835
WASHER,77.5mm ID x 152mm OD x 3.5mm Thk
- flat, 77.5 x 152 x 3.5 mm
4шт.
47
426-1024
BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8
8шт.
49
426-1052
BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 8
- hex, 5/8 NC x 3-1/4 inch, grade 8
2шт.
50
L127108
WASHER,77.5mm ID x 152mm OD x 2.5mm Thk
- flat, 77.5 x 152 x 2.5 mm
4шт.
51
L126511
SUPPORT
BRACKET - mounting, hose and tube
1шт.
52
426-616
BOLT,Hex, 3/8" - 16 x 1", Gr 8
2шт.
53
492-11038
LOCK WASHER,3/8"
2шт.
Выбрано товаров: 56
