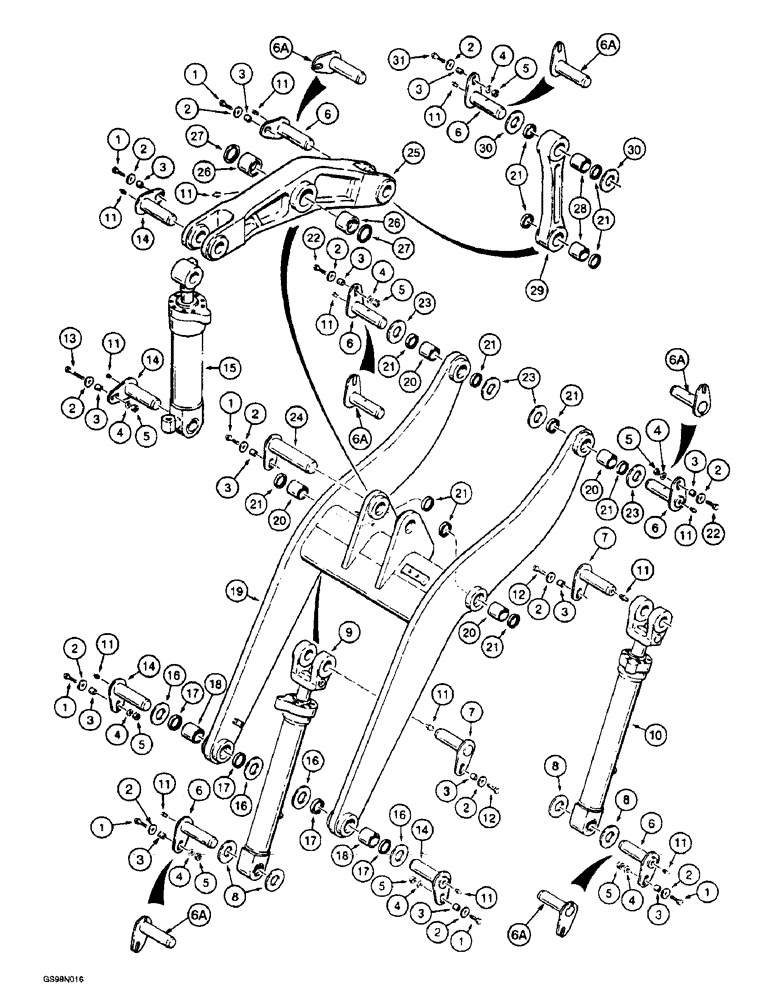

Запчасти Case 721B (9-010) - LOADER LIFT FRAME, Z-BAR LOADER (09) - CHASSIS/ATTACHMENTS

1

426-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

- hex, 5/8 NC x 2-1/4 inch, grade 8

7шт.

2

496-81025

WASHER,21/32" x 2 1/2" x .188", HDN

13шт.

3

L125100

SPACER,17.48mm ID x 31.75mm OD x 14.3mm Thk

- 14.3 mm (9/16 inch)

13шт.

4

495-21069

WASHER,5/8"

- flat, 11/16 x 1-3/4 x 9/64 inch, if used

8шт.

5

131-219

LOCK NUT

NUT - hex, self-locking, 5/8 inch NC

8шт.

6

L128351

PIVOT PIN

PIN - pivot, 249 mm long, no longer used, order 225775A1 pin, Ref. 6A

6шт.

6a

225775A1

PIVOT PIN

PIN - pivot, bucket

6шт.

7

L127118

HANDLED SHAFT

PIN - pivot, 229 mm long

2шт.

8

L127108

WASHER,77.5mm ID x 152mm OD x 2.5mm Thk

- flat, 77.5 x 152 x 2.5 mm

4шт.

9

REF

INSTRUCTION

CYLINDER ASSEMBLY - 127 (5) ID x 834 mm (32-13/16 inch) stroke, left-hand, see figures 8-11A, 8-50, and 8-51A for correct assembly and components

1шт.

10

REF

INSTRUCTION

CYLINDER ASSEMBLY - 127 (5) ID x 834 mm (32-13/16 inch) stroke, right-hand, see figures 8-11A, 8-50 and 8-51A for correct assembly and components

1шт.

11

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

13шт.

12

426-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

2шт.

13

426-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 8

- hex, 5/8 NC x 4 inch, grade 8

1шт.

14

L118674

PIVOT PIN

PIN - pivot, 255 mm long

4шт.

15

1980347C4

CYLINDER ASSY.

CYLINDER ASSEMBLY - 165 (6-1/2) ID x 544 mm (21-7/16 inch) stroke, bucket tilt, parts list figure 8-52

1шт.

16

L129131

WASHER,83.8mm ID x 152mm OD x 3.02mm Thk

- flat, special

4шт.

17

L128725

SEAL,82.55mm ID x 95.38mm OD x 7.9mm Thk

- loader lift, Serial Range: frame-chassis

4шт.

121479A1

ARM/LIFTING DEVICE

FRAME ASSEMBLY - loader lift, replaces L126785 frame, Includes: Ref. 18 - 20

1шт.

18

L127014

BUSHING,82.73mm ID x 95.38mm OD x 82mm L

- loader lift frame, at chassis

2шт.

19

NSS

NOT SOLD SEPARAT

FRAME - loader lift

1шт.

20

L127015

BUSHING,76.38mm ID x 89.03mm OD x 82mm L

- loader lift frame, at lift cylinder and bucket

4шт.

21

L128724

SEAL

- wiper

12шт.

22

426-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

- hex, 5/8 NC x 2-1/2 inch, grade 8

2шт.

23

L118835

WASHER,77.5mm ID x 152mm OD x 3.5mm Thk

- flat, 77.5 x 152 x 3.5 mm

1шт.

24

L118672

PIVOT PIN

PIN - pivot, 345 mm long

1шт.

232194A1

LINKAGE YOKE

BELLCRANK ASSEMBLY - loader bucket, replaces L126716, Includes: Ref. 25 and 26

1шт.

25

NSS

NOT SOLD SEPARAT

BELLCRANK - loader bucket

1шт.

26

L118709

BUSHING,95.42mm ID x 111.25mm OD x 82mm L

- Bellcrank

2шт.

27

L118750

SEAL,92.71mm ID x 111.25mm OD x 7.95mm Thk

- wiper, bellcrank pivot

2шт.

L118759

PITMAN ASSY.

LINK ASSEMBLY - bucket dump

1шт.

28

L127015

BUSHING,76.38mm ID x 89.03mm OD x 82mm L

- bucket dump link

2шт.

29

NSS

NOT SOLD SEPARAT

LINK - loader bucket dump

1шт.

30

L118835

WASHER,77.5mm ID x 152mm OD x 3.5mm Thk

- flat, 77.5 x 152 x 3.5 mm

2шт.

31

426-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

- hex, 5/8 NC x 2-1/2 inch, grade 8

1шт.
