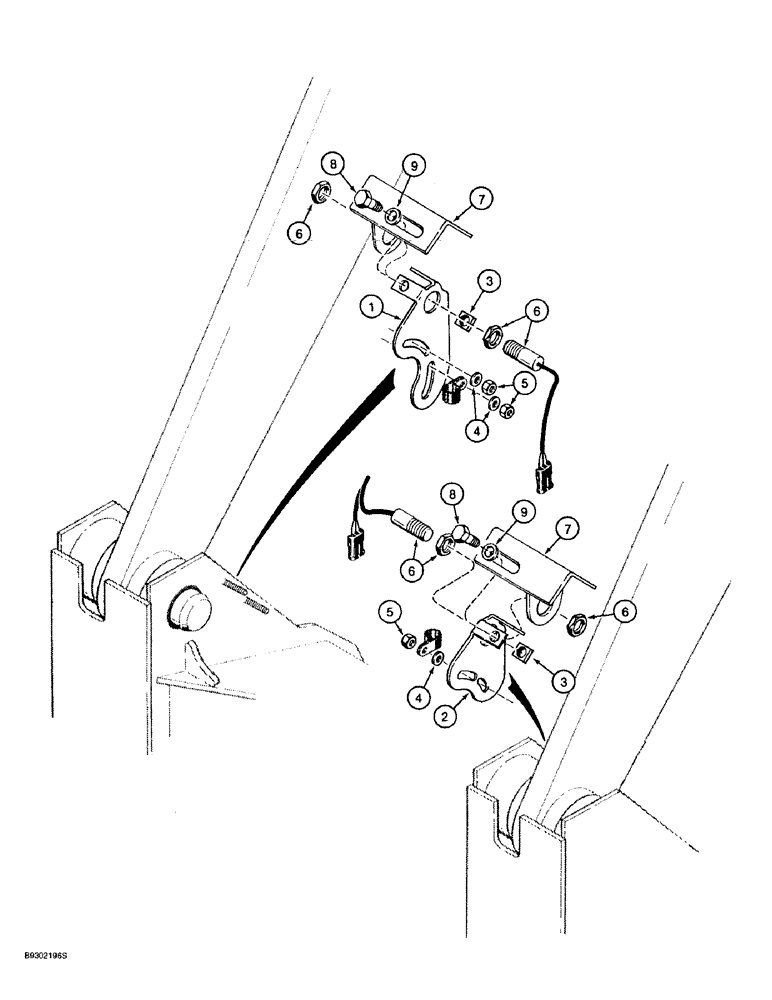

Запчасти Case 721B (9-008) - LOADER BUCKET HEIGHT CONTROL AND, RETURN-TO-TRANSPORT, XT LOADER (09) - CHASSIS/ATTACHMENTS

1

115677A1

LARGE PLATE

PLATE - mounting, proximity switches, left-hand

1шт.

2

115678A1

LARGE PLATE

PLATE - mounting, proximity switch, right-hand

1шт.

3

131-856

SPRING NUT,Ret, J, 3/8"-16

NUT, Ret, J, 3/8"-16

4шт.

4

496-41041

WASHER,13/32" x 1 1/8" x .134"

- flat, 13/32 x 1-1/8 x 9/64 inch, hardened

4шт.

5

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC

4шт.

6

1546498C1

SWITCH

- proximity, includes nuts, height control and, Serial Range: return-transport

2шт.

7

116212A1

COVER

- proximity switches

2шт.

8

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

- hex, 3/8 NC x 3/4 inch, grade 8

4шт.

9

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

4шт.
