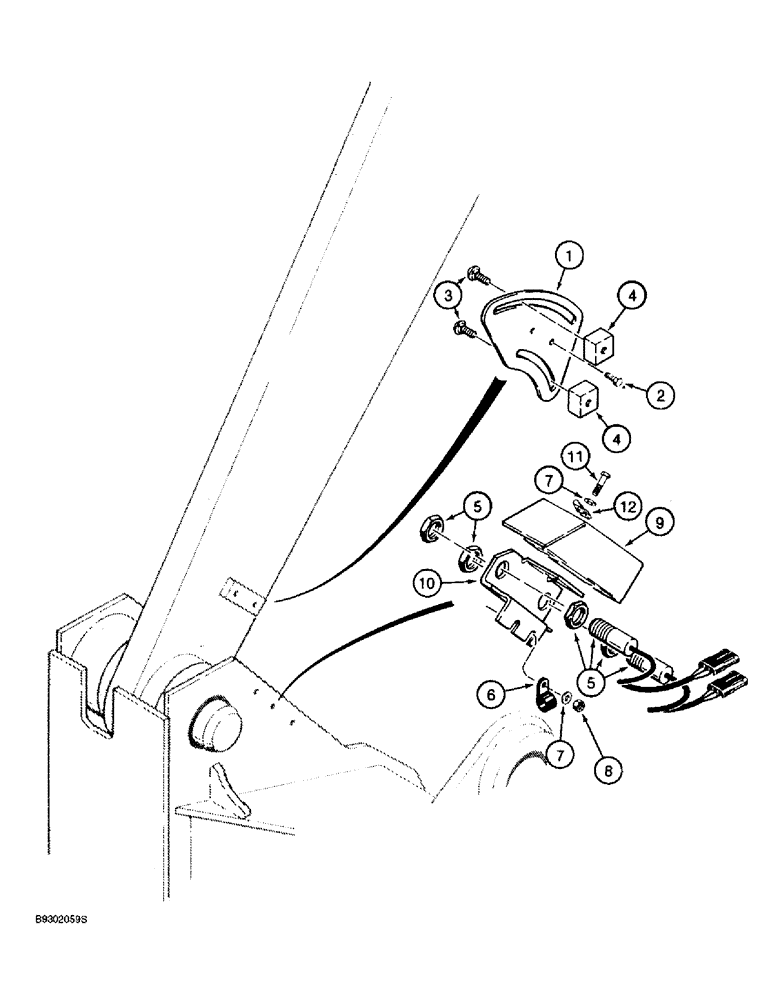

Запчасти Case 721B (9-006) - LOADER BUCKET HEIGHT CONTROL AND, RETURN-TO-TRANSPORT, Z-BAR LOADER (09) - CHASSIS/ATTACHMENTS

1

L124660

PLATE

- mounting, actuator switches

1шт.

2

413-68

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

2шт.

3

411-816

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1", G2

2шт.

4

L125976

SWITCH

ACTUATOR - switch, proximity

2шт.

5

1546498C1

SWITCH

- proximity, includes nuts, height control and, Serial Range: return-transport

2шт.

6

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

1шт.

7

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

4шт.

8

231-1406

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

2шт.

9

L125258

COVER

- proximity switches

1шт.

10

L128899

SUPPORT

BRACKET - mounting, proximity switches

1шт.

11

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

- hex, 3/8 NC x 3/4 inch, grade 8

2шт.

12

131-856

SPRING NUT,Ret, J, 3/8"-16

NUT, Ret, J, 3/8"-16

2шт.
