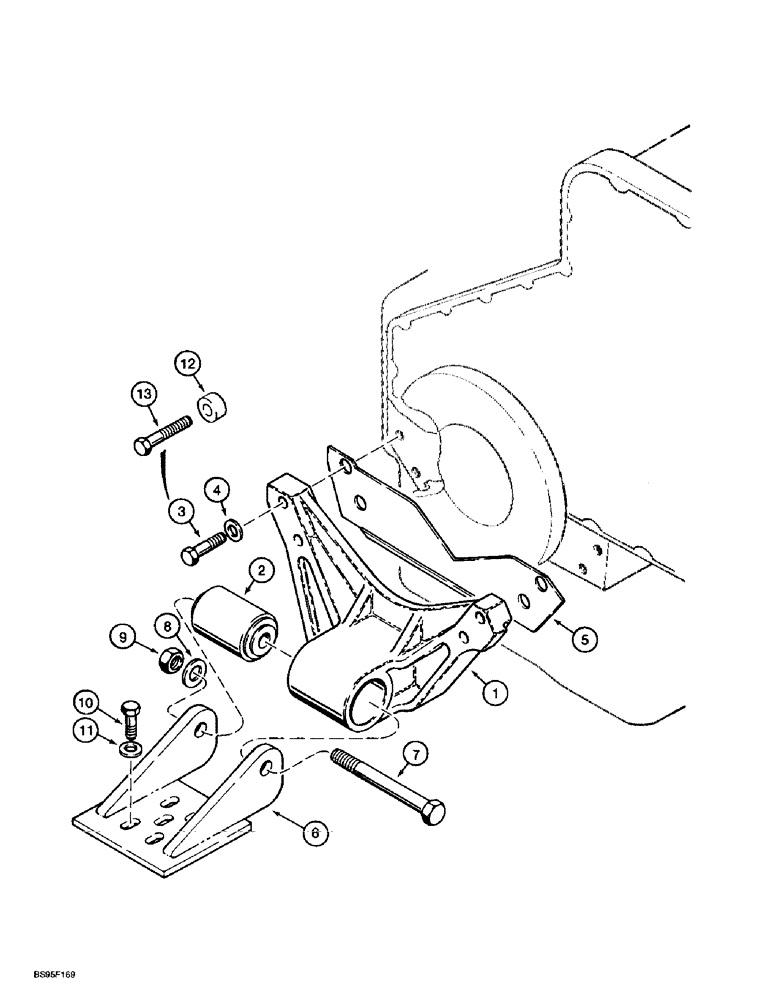

Запчасти Case 721B (2-02) - ENGINE MOUNT AND RELATED PARTS (02) - ENGINE

L127732

SUPPORT

ASSEMBLY - engine, front, Includes: Ref. 2 and 3

1шт.

1

J914117

SUPPORT

- engine

1шт.

2

L124020

SHOCK ABSORBER

SPACER - engine mount to support, phosphate coated

1шт.

3

814-12085

BOLT,Hex, M12 x 1.75 x 85mm, Cl 8.8

used with L125932 plate, Ref. 5

4шт.

4

496-21053

WASHER,17/32" x 1 1/16" x .134"

used with L125932 plate, Ref. 5

4шт.

5

L125932

LARGE PLATE

PLATE - formed, no longer used, order Ref. 12 and 13

1шт.

6

L128273

SUPPORT

MOUNT - engine

1шт.

7

426-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 8

- hex, 3/4 NC x 6 inch, grade 8

1шт.

8

496-81000

WASHER,25/32" x 1 3/8" x .134", HDN

- flat, 25/32 x 1-3/8 x 1/8 inch, hardened

1шт.

9

131-1400

LOCK NUT,Jam, 3/4"-16

NUT - heavy hex, self-locking, 3/4 inch NC

1шт.

10

426-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

- hex, 1/2 NC x 1-1/4 inch, grade 8

5шт.

11

496-21053

WASHER,17/32" x 1 1/16" x .134"

5шт.

12

187563A1

SPACER

- 13 x 25 x 28 mm, replaces L125932 plate, Ref. 5

4шт.

13

828-12110

BOLT,Hex, M12 x 1.75 x 110mm, Cl 10.9

- hex, 12 - 1.75 x 110 mm, class 10.9, Used with 187563A1 spacer, Ref. 12

4шт.
