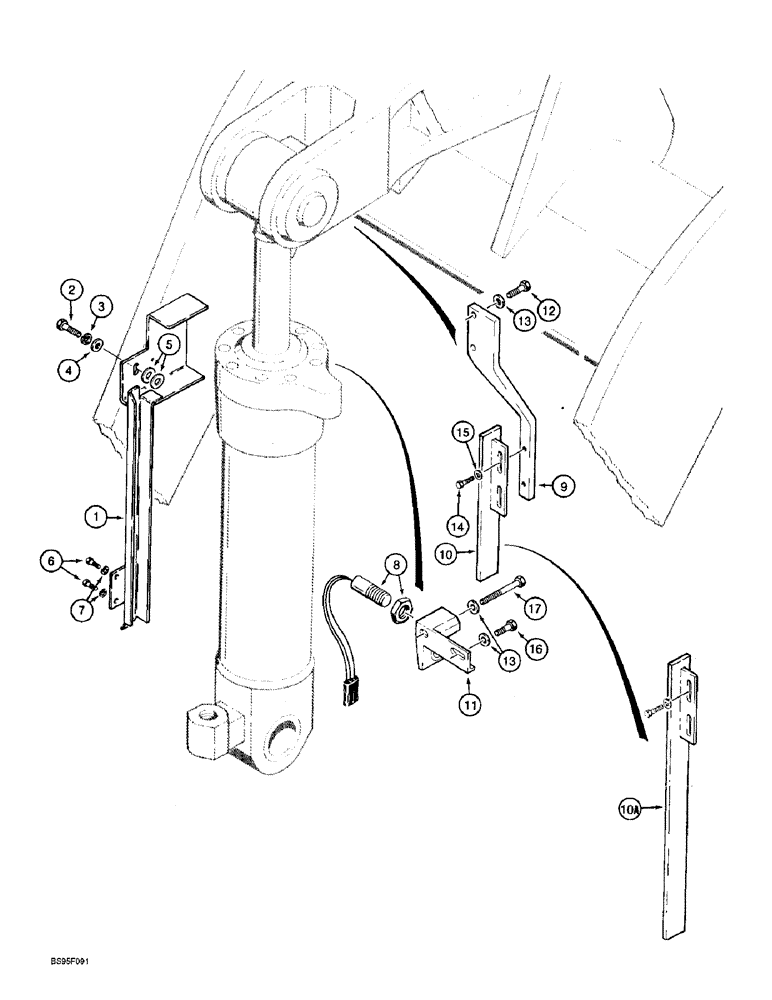

Запчасти Case 721B (9-002) - LOADER BUCKET RETURN-TO-DIG, Z-BAR LOADER (09) - CHASSIS/ATTACHMENTS

1

L127182

PROTECTOR

GUARD - harness, return-to-dig

1шт.

2

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

- hex, 1/2 NC x 1-1/2 inch, grade 8

1шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

4

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 7/64 inch

1шт.

5

95-81162

WASHER,0.56" ID x 1.88" OD x 0.13" Thk

- flat, 9/16 x 1-7/8 x 1/8 inch

2шт.

6

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

- hex, 3/8 NC x 3/4 inch, grade 8

2шт.

7

492-11038

LOCK WASHER,3/8"

2шт.

8

1546497C1

SWITCH

- proximity, return-to-dig

1шт.

9

L128809

SUPPORT

BRACKET - return-to-dig

1шт.

10

L128837

SUPPORT

BAR - sensing, return-to-dig, models with standard reach

1шт.

10a

L303368

INDICATOR

BAR - sensing, return-to-dig, models with extended reach

1шт.

11

L125983

SUPPORT

BRACKET - mounting, proximity switch

1шт.

12

426-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

- hex, 1/2 NC x 1-1/4 inch, grade 8

2шт.

13

187563A1

SPACER

- 13 x 25 x 28 mm

4шт.

14

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

2шт.

15

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

- flat, 13/32 x 1-1/16 x 3/32 inch, hardened

2шт.

16

426-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

- hex, 1/2 NC x 1 inch, grade 8

1шт.

17

426-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 8

1шт.
