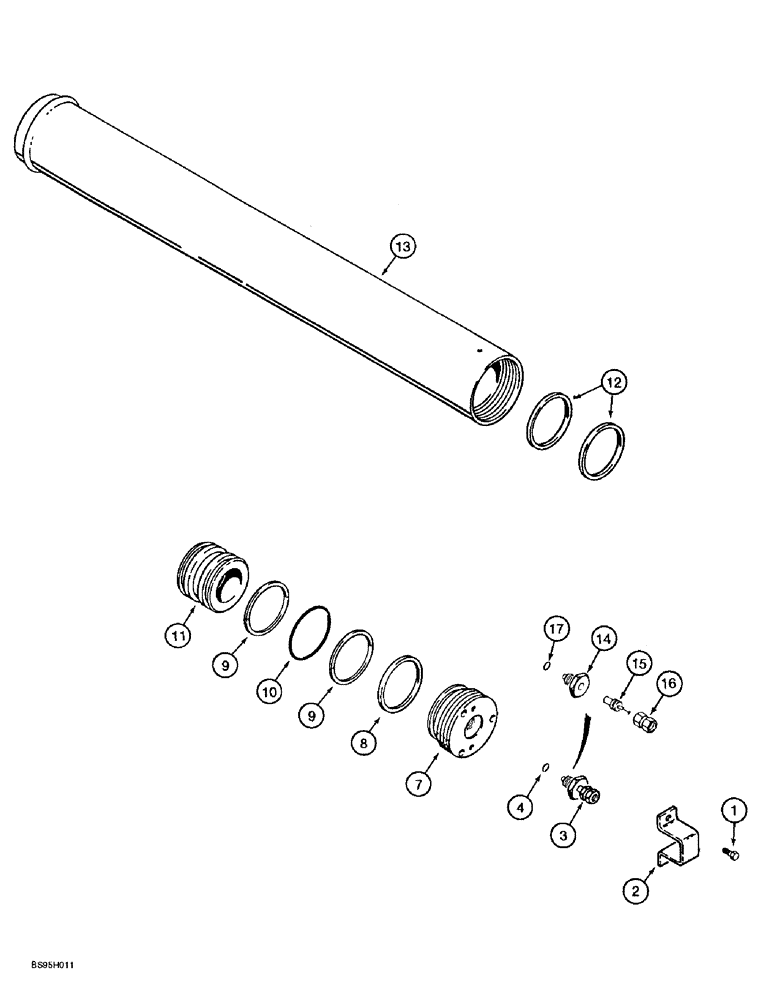

Запчасти Case 721B (8-104) - ACCUMULATOR ASSEMBLY, RIDE CONTROL (08) - HYDRAULICS

130354A1

ACCUMULATOR

ASSEMBLY - see figure 8-74 for mounting, Includes: Ref. 1 - 17

1шт.

1

S301367

SCREW

- special, bracket

2шт.

2

1341920C1

PROTECTOR

GUARD - valve, repaces S301366

1шт.

3

179066A1

VALVE

- gas, no longer available, order 192900A1 valve assembly below, Includes: Ref. 4

1шт.

4

1978158C1

O-RING

- valve, valve

1шт.

7

179065A1

CAP

GLAND - accumulator, Includes: Ref. 8 - 10

1шт.

8

NSS

NOT SOLD SEPARAT

RING - seal, gland

1шт.

9

NSS

NOT SOLD SEPARAT

RING - backup, piston O-ring

2шт.

10

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

11

S301364

PISTON

- accumulator

1шт.

12

S301365

RING

- wear, teflon, piston

2шт.

13

NSS

NOT SOLD SEPARAT

TUBE - accumulator

1шт.

192900A1

VALVE

ASSEMBLY - accumulator charging, Includes: Ref. 14 - 17

1шт.

14

NSS

NOT SOLD SEPARAT

VALVE - accumulator charging

1шт.

15

1978143C1

PISTON

CORE - valve

1шт.

16

1978144C1

CAP

- valve

1шт.

17

1978158C1

O-RING

- valve

1шт.

1341919C1

SEAL KIT

KIT - seal, accumulator, includes Ref. 4, 8 - 10 and 16

1шт.
