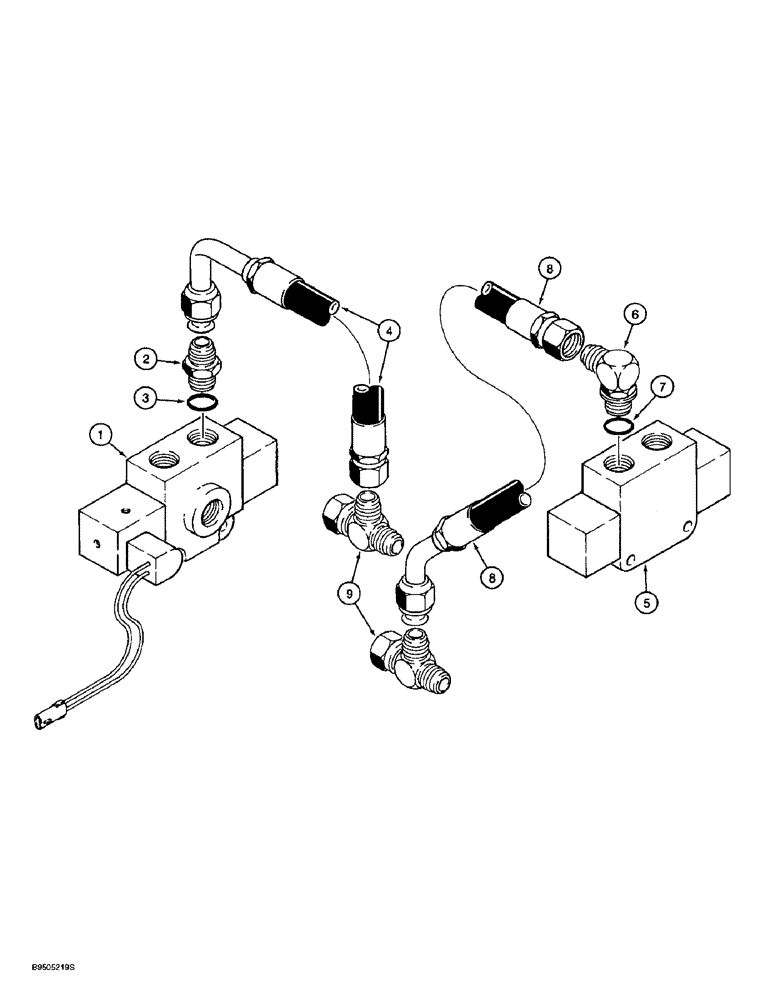

Запчасти Case 721B (8-098) - RIDE CONTROL HYDRAULIC CIRCUIT, MASTER AND DIRECTIONAL VALVES TO LIFT TUBES (08) - HYDRAULICS

1

107866A1

VALVE

ASSEMBLY - master directional, with electrical connector, parts list figure 8-100

1шт.

2

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 inch flare x O-ring boss, Incl. Ref. 3

1шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Boss end

1шт.

4

132977A1

HOSE ASSY.

HOSE - 510 mm (20 inch) long, to right-hand rod end cylinder tube

1шт.

See figure 8-10 for lift tubes used on models with ride control.

1шт.

5

106488A1

VALVE

ASSEMBLY - directional control, parts list figure 8-102

2шт.

6

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, 1-1/16-12 inch flare x adj., O-ring boss, Incl. Ref. 7

1шт.

7

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

8

132979A1

HOSE ASSY.

HOSE - 400 mm (15-3/4 inch) long, directional valve to right-hand closed end cylinder tube

1шт.

See figure 8-10 for lift tubes used on models with ride control.

1шт.

9

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

2шт.

See figure 8-10 for lift tubes used on models with ride control.

1шт.
