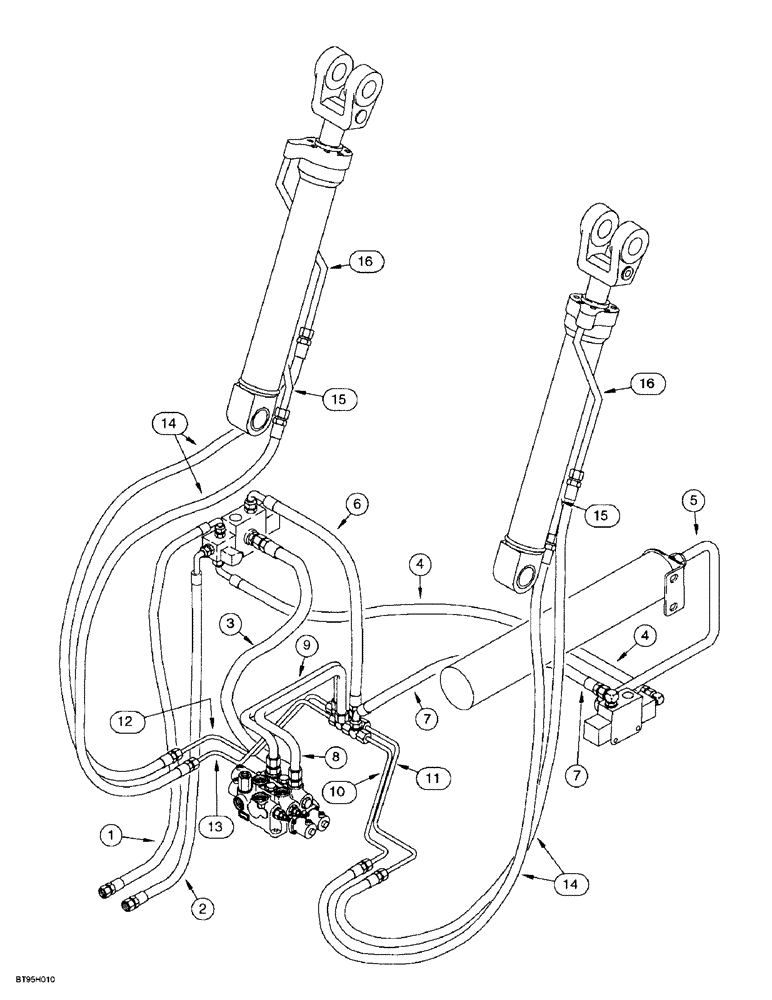

Запчасти Case 721B (1-34) - PICTORIAL INDEX, RIDE CONTROL HYDRAULIC CIRCUIT, Z-BAR OR XT LOADER (00) - PICTORIAL INDEX

1

Hose, master directional, Serial Range: valve-8-95

1шт.

pilot controller and pressure

1шт.

reducing sequence valve

1шт.

2

Hose, master directional, Serial Range: valve-8-95

1шт.

hydraulic controller return line

1шт.

3

Hose, master directional, Serial Range: valve-8-95

1шт.

loader control valve end cover

1шт.

4

Hose, master directional, Serial Range: valve-8-97

1шт.

directional valve

1шт.

5

Tube, directional, Serial Range: valve-8-97

1шт.

accumulator

1шт.

6

Hose, master directional, Serial Range: valve-8-99

1шт.

right-hand rod end cylinder tube

1шт.

7

Hose, directional, Serial Range: valve-8-99

1шт.

right-hand closed end cylinder tube

1шт.

8

Tube, at loader control, Serial Range: valve-8-11

1шт.

closed end of cylinders

1шт.

9

Tube, at loader control, Serial Range: valve-8-11

1шт.

rod end of cylinders

1шт.

10

Tube, at tee to hose to right-hand 8-11

1шт.

lift cylinder closed end

1шт.

11

Tube, at tee to hose to right-hand 8-11

1шт.

lift cylinder rod end

1шт.

12

Tube, at tee to hose to left-hand 8-11

1шт.

lift cylinder rod end

1шт.

13

Tube, at tee to hose to hose 8-11

1шт.

left-hand lift cylinder closed end

1шт.

14

Hose, tubes to cylinder tubes 8-11

1шт.

15

Tube, hose to cylinder closed end 8-11

1шт.

16

Tube, hose to cylinder rod end 8-11

1шт.
