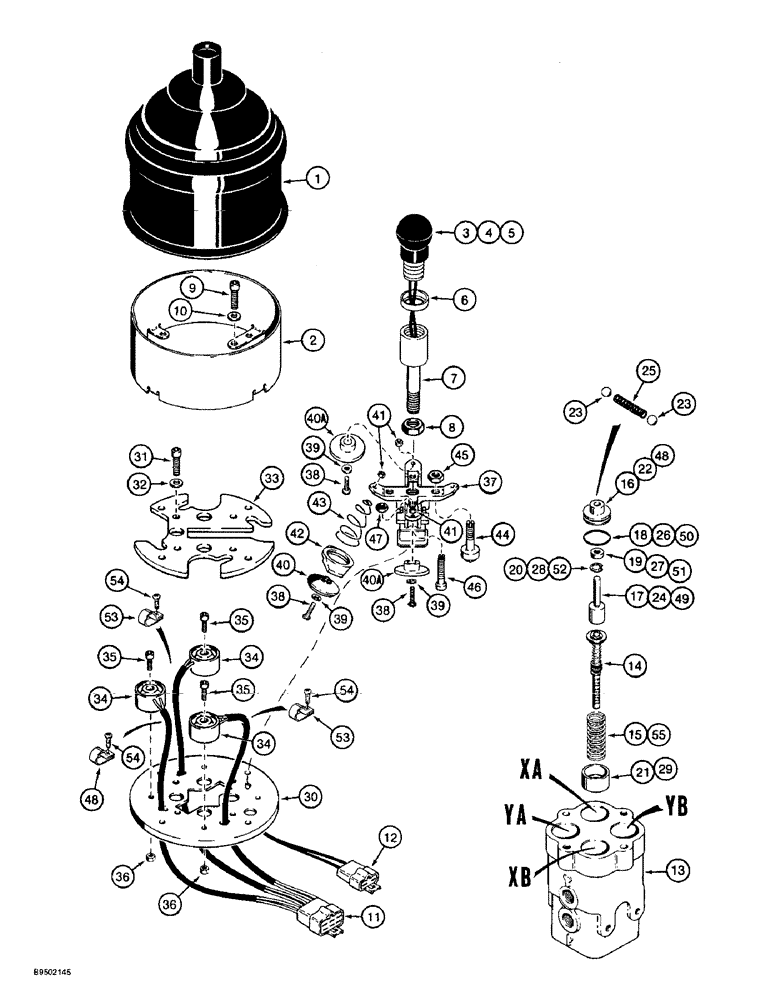

Запчасти Case 721B (8-080) - SINGLE LEVER REMOTE CONTROL VALVE - 109508A1 (08) - HYDRAULICS

109508A1

VALVE

ASSEMBLY - control, single lever remote, Includes: Ref. 1 - 55

1шт.

109508A1R

REMAN-HYD VALVE

Reman ASSEMBLY - control, single lever remote, Includes: Ref. 1 - 55

1шт.

109508A1C

CORE-VALVE HYD

Return Number

1шт.

1

120519A1

BOOT

- dust

1шт.

2

120533A1

CLAMP

COLLAR - control valve

1шт.

120562A1

LEVER

KNOB ASSEMBLY - control lever, Includes: Ref. 3 - 5

1шт.

3

120590A1

LEVER

HOUSING - knob

1шт.

4

120591A1

IGNITION SWITCH

SWITCH - push button

1шт.

5

120592A1

BOOT

- switch

1шт.

6

120560A1

WASHER

WASHER - boot

1шт.

7

120521A1

LEVER

- control

1шт.

8

429-108

NUT,1/2"-13, G8

- hex, 1/2 inch NC, grade 8

1шт.

9

361-31012

HEX SOC SCREW,#10 - 24 x 3/4"

BOLT - hex socket, No. 10 NC x 3/4 inch

2шт.

10

1978189C1

WASHER

- flat, special, 17/64 x 1/2 x 1/32 inch

2шт.

11

449797C1

CONTACT HOUSING,Male, 6 Pole

CONNECTOR - magnetic coil, 6 contact

1шт.

12

872290R1

ELEC CONNECTOR,Male

CONNECTOR - magnetic coil, 2 contact

1шт.

120518A1

VALVE

ASSEMBLY - remote control, Includes: Ref. 13 - 55

1шт.

13

NSS

NOT SOLD SEPARAT

HOUSING - control valve

1шт.

14

1971884C1

SPOOL

ASSEMBLY - remote control valve, valve ports XA, XB, YA, and YB

4шт.

15

1978191C1

SPRING

- spool, valve ports YA and YB

2шт.

109753A1

PLUNGER

ASSEMBLY - control valve, valve ports XB and YA Inc. 16-21

2шт.

16

1978195C1

GUIDE

- valve, 1/2 inch long

2шт.

17

109765A1

PLUNGER

- valve, 1 inch long stem

2шт.

18

238-5021

O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro

-021, 70 Duro, .926" ID x .070" Thk

2шт.

19

N14759

SEAL,11.68mm ID x 13.46mm OD x 3.38mm Thk

- U-cup, plunger

2шт.

20

100-2150

SNAP RING,0.50", Int, #50

Ring, Snap, , Plunger 0.50", Int, #50

2шт.

21

1978192C1

RACE

SLEEVE - spool, valve ports XB, YA, and YB

3шт.

120639A1

PLUNGER

ASSEMBLY - control valve, with feel, valve port XA, Includes: Ref. 22 - 29

1шт.

22

1978195C1

GUIDE

- valve, 1/2 inch long

1шт.

23

211-1004

BALL,3.17mm OD, Gr 24

2шт.

24

120647A1

PLUNGER

- valve

1шт.

25

120582A1

SPRING

- plunger

1шт.

26

238-5021

O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro

-021, 70 Duro, .926" ID x .070" Thk

1шт.

27

N14759

SEAL,11.68mm ID x 13.46mm OD x 3.38mm Thk

- U-cup, plunger

1шт.

28

100-2150

SNAP RING,0.50", Int, #50

Ring, Snap, , Plunger 0.50", Int, #50

1шт.

29

120583A1

OIL SEAL

SLEEVE - spool

1шт.

30

1978196C1

LARGE PLATE

PLATE - plastic, lower

1шт.

31

361-31012

HEX SOC SCREW,#10 - 24 x 3/4"

BOLT - hex socket, No. 10 NC x 3/4 inch

2шт.

32

1978189C1

WASHER

- flat, special, 17/64 x 1/2 x 1/32 inch

2шт.

33

1978197C1

LARGE PLATE

PLATE - metal, upper

1шт.

34

109713A1

ELEC. TERMINAL PIN

COIL - magnetic

3шт.

35

461-3108

HEX SOC SCREW,#10 - 24 x 1/2"

BOLT - hex socket, No. 10 NC x 1/2 inch

3шт.

36

225-14110

NUT,#10-24

3шт.

122452A1

SUPPORT

ARMATURE ASSEMBLY - control valve, Includes: Ref. 37 - 47

1шт.

37

1978199C1

CAM

PIVOT - armature

1шт.

38

182-87

SCREW,Slotted Pan Hd, #8-32 X 5/8"

- machine, pan head slotted, No. 8 x 5/8 inch

3шт.

39

111248A1

SEALING WASHER

- special, disc alignment

3шт.

40

121563A1

TAPPET

DISC - armature, electromagnet

1шт.

40a

120704A1

DISC

- armature, electromagnet

1шт.

41

225-14108

NUT,#8-32

- hex, No. 8 NC

3шт.

42

122459A1

CLAMP

COLLAR - armature

1шт.

43

1978202C1

SPRING

- armature

1шт.

44

1978203C1

SCREW

ACTUATOR - spool, large

2шт.

45

425-155

JAM NUT,Jam, 5/16"-24, G5

- hex, jam, 5/16 inch NF

2шт.

46

1978204C1

SCREW

ACTUATOR - spool, small

2шт.

47

425-144

JAM NUT,Jam, 1/4"-20, G5

- hex, jam, 1/4 inch NC

2шт.

1971896C1

PLUNGER

ASSEMBLY - control valve, valve port YB, Includes: Ref. 48 - 52

1шт.

48

1978193C1

GUIDE

- valve, 5/8 inch long

1шт.

49

109765A1

PLUNGER

- valve, 1 inch long stem

1шт.

50

238-5021

O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro

-021, 70 Duro, .926" ID x .070" Thk

1шт.

51

N14759

SEAL,11.68mm ID x 13.46mm OD x 3.38mm Thk

- U-cup, plunger

1шт.

52

100-2150

SNAP RING,0.50", Int, #50

Ring, Snap, , Plunger 0.50", Int, #50

1шт.

53

109769A1

CLAMP

- P-type

3шт.

54

440-1104

SCREW,Cross Pan Hd, #10-24 x 1/4"

- machine, pan Phillips, No. 10 NC x 1/4 inch

3шт.

55

120567A1

SPRING

- centering, valve ports XA and XB

2шт.
