(8-078) - REMOTE LOADER CONTROL CIRCUIT, RETURN TO HYDRAULIC RESERVOIR & PRESSURE REDUCING VALVE

Запчасти Case 721B (8-078) - REMOTE LOADER CONTROL CIRCUIT, RETURN TO HYDRAULIC RESERVOIR & PRESSURE REDUCING VALVE (08) - HYDRAULICS

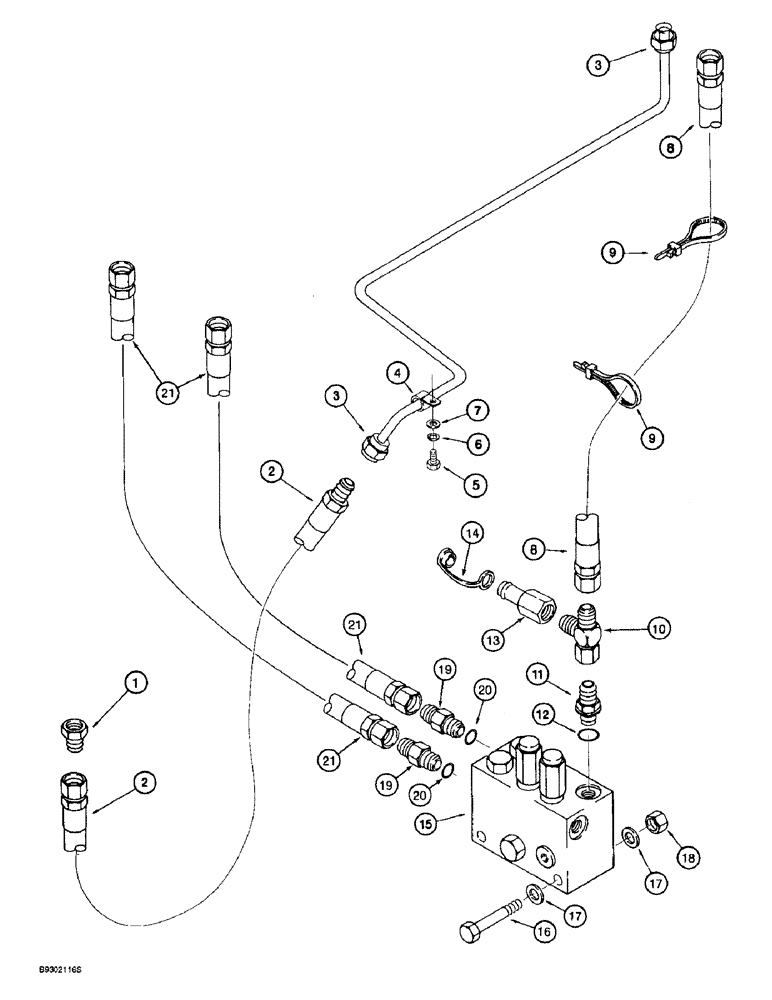

Схема запчастей Case 721B - (8-078) - REMOTE LOADER CONTROL CIRCUIT, RETURN TO HYDRAULIC RESERVOIR & PRESSURE REDUCING VALVE (08) - HYDRAULICS
15
20
17
11
21
9
3
12
2
14
19
7
21
9
16
8
20
6
4
19
10
3
18
21
2
13
1
8
5
17
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

218-786

REDUCER,37 Degree, 3/4"-16, Fem x 9/16"-18 Male

ADAPTER - reducing, 3/4-16 female str thread x 9/16-18 flare

1шт.

2

L124336

HOSE

- 600 mm (23-5/8 inch) long, tube to hydraulic reservoir

1шт.

3

L126571

PIPE,9.52 mm OD

TUBE - hose separator to hose at hydraulic reservoir

1шт.

4

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

1шт.

5

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

1шт.

6

492-11038

LOCK WASHER,3/8"

1шт.

7

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

1шт.

8

109056A1

HOSE ASSY.

HOSE - 645 mm (25-3/8 inch) long, to pressure reducing valve

1шт.

9

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

10

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

- swivel, 9/16-18 inch flare branch x flare x swivel

1-2шт.

Two Ref. 10 tees are used in this area on XT loaders, see figures 8-24 and 8-26, Ref. 4. One tee is used on Z-Bar loaders.

1шт.

11

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss, Incl. Ref. 12

1шт.

13

101792A1

COUPLING

- quick disconnect

1шт.

14

H434163

DUST CAP

CAP - dust

1шт.

15

108525A3

VALVE

ASSEMBLY - pressure reducing, parts list figure 8-92

1шт.

16

426-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 8

- hex, 3/8 NC x 3-1/2 inch, grade 8

2шт.

17

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

4шт.

18

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC

2шт.

19

218-5089

HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB

ADAPTER - straight, 7/16-20 flare x 9/16-18 inch O-ring boss, Incl. Ref. 20

2шт.

20

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

21

109795A1

HOSE

- 580 mm (22-7/8 inch) long, pressure reducing valve to hydraulic pump

2шт.

12

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
