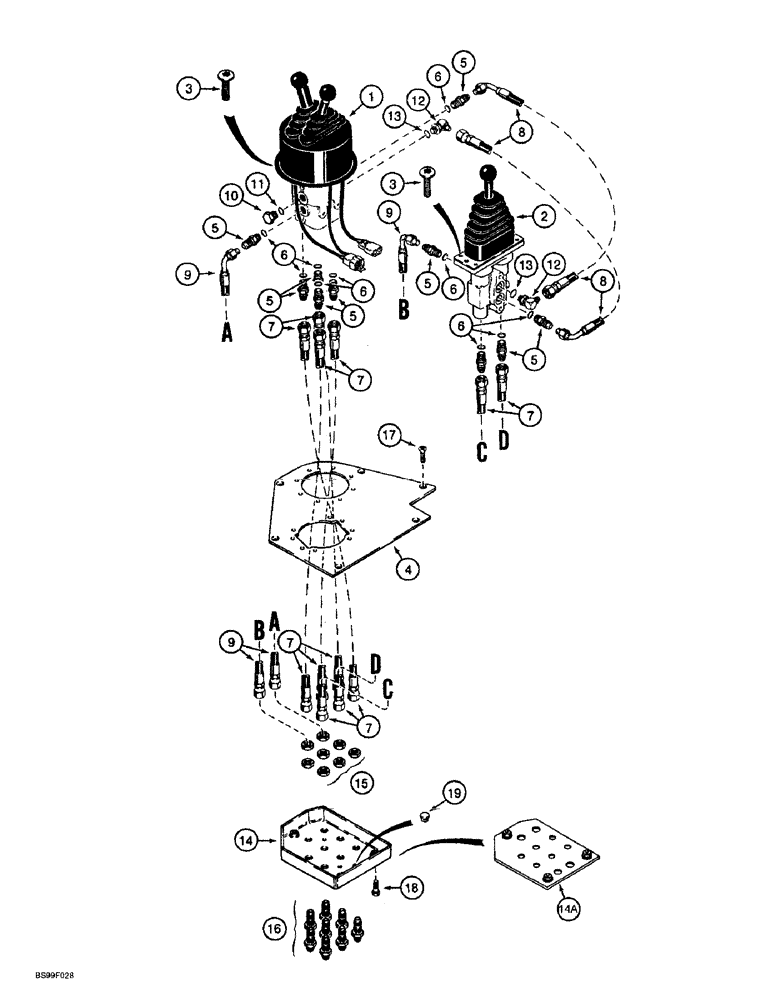

Запчасти Case 721B (8-070) - REMOTE LOADER CONTROL CIRCUIT, THREE LEVERS WITH THREE SPOOL VALVE (08) - HYDRAULICS

1

109509A1

LEVER ASSY & KNOB

VALVE ASSEMBLY - control, dual lever remote, parts list figure 8-84 and 8-86

1шт.

2

L123917

VALVE

ASSEMBLY - remote, single lever, auxiliary, parts list figure 8-88

1шт.

3

140-114

SCREW,Cross Pan Hd, 1/4" - 20 x 1"

Cross Pan Hd, 1/4"-20 NC x 1"

8шт.

4

1339947C1

LARGE PLATE

PLATE - mounting, remote controls

1шт.

5

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss, Incl. Ref. 6

10шт.

7

1339965C1

HOSE,9.53mm ID x 419.1mm L, SAE 100R1

- 419 mm (16-1/2 inch) long, remote controls to loader control valve

6шт.

8

1339963C1

HOSE ASSY.

HOSE - 305 mm (12 inch) long, auxiliary remote control to dual lever remote control

2шт.

9

1339964C1

HOSE,9.53mm ID x 501.7mm L, SAE 100R1

- 502 mm (19-7/8 inch) long, adapter at remote controls to pressure reducing valve

2шт.

10

76349

PLUG,9/16" - 18 ORB

Incl. Ref. 11 Hex Hd, 9/16"-18 ORB

1шт.

12

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x adj. O-ring boss, Includes: Ref. 13

2шт.

14

1339969C1

LARGE PLATE

SEPARATOR - hose, loader control, if used

1шт.

14a

137716A2

LARGE PLATE

SEPARATOR - hose, loader control, if used

1шт.

15

218-1254

LOCK NUT,Blkhd, 9/16"-18

NUT - hex, lock, bulkhead, 9/16 inch NF

8шт.

16

218-673

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

ADAPTER - straight, 9/16-18 inch flare x bulkhead flare

8шт.

17

43-12512

SCREW,Cross Flat Hd, 1/4"-20 x 3/4"

- machine, flat Phillips, 1/4 NC x 3/4 inch

6шт.

18

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 6 - 1.0 x 25 mm

3шт.

19

353-406

PLUG,Dome, .625" hole, Nylon

- button, 5/8 inch

2шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

11

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

13

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
