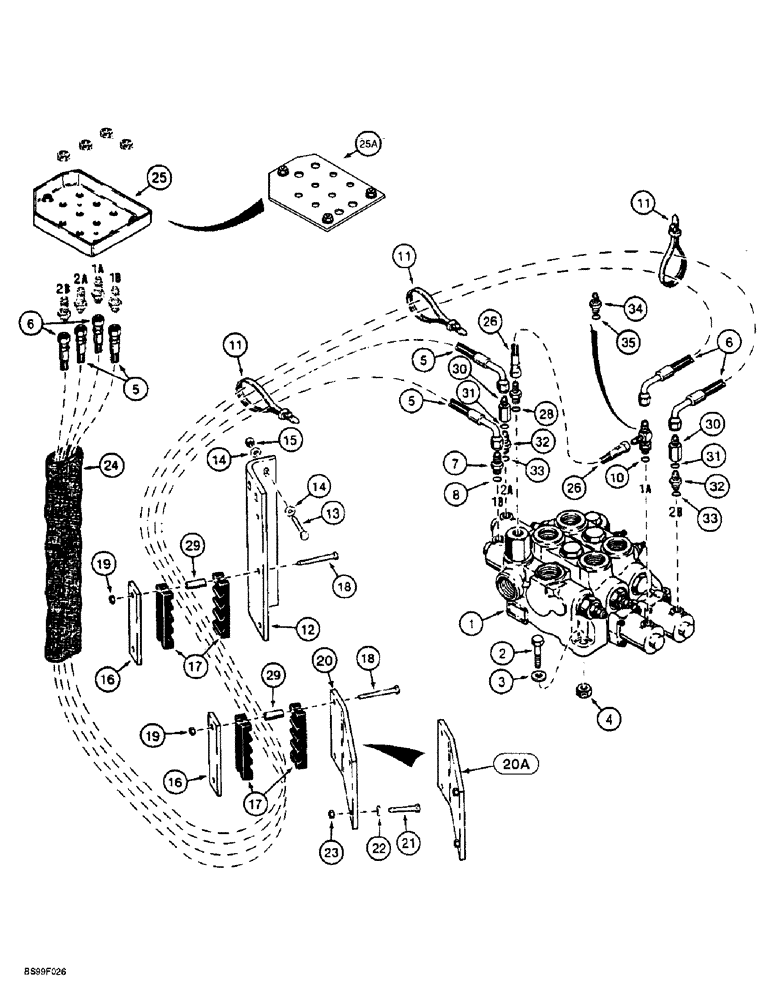

Запчасти Case 721B (8-066) - REMOTE LOADER CONTROL CIRCUIT, HOSE SEPARATOR TO TWO SPOOL VALVE (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - control, see figure 8-6 or 8-7A for the correct assembly

1шт.

2

326-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

3шт.

3

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 7/64 inch

3шт.

4

231-1448

NUT,1/2"-13, GB

- hex, self-locking, 1/2 inch NC

3шт.

5

L124308

HOSE,9.53mm ID x 2210mm L, SAE 100R3

- 2210 mm (87 inch) long, hose separator to ports 1B and 2A

2шт.

6

L124310

HOSE

- 3200 mm (126 inch) long, hose separator to ports 1A and 2B

2шт.

7

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss, at port 1B, Incl. Ref. 8

1шт.

9

L124527

TEE

- special, at port 1A, Z-Bar loader, Includes: Ref. 10

1шт.

11

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

12

114654A1

BRACKET

- mounting, bolts to front chassis

1шт.

13

426-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

- hex, 3/8 NC x 1-3/4 inch, grade 8

3шт.

14

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

6шт.

15

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC

3шт.

16

L124270

LARGE PLATE

PLATE - mounting, bracket

2шт.

17

L124271

FIXING BRACKET

CLAMP - rubber, hose retaining

4шт.

18

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

4шт.

19

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC

4шт.

20

L119099

BRACKET

- mounting, bolts to rear frame, no longer available, order 235246A1

1шт.

20a

235246A1

BRACKET

- control hose, replaces L119099 bracket

1шт.

21

426-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

- hex, 3/8 NC x 1-3/4 inch, grade 8

2шт.

22

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

23

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC

2шт.

24

S120426

TUBE

GUARD - hose protector

1шт.

25

1339969C1

LARGE PLATE

SEPARATOR - hose, loader control, if used

1шт.

25a

137716A2

LARGE PLATE

SEPARATOR - hose, loader control, if used

1шт.

26

L128977

TUBE ASSY.

HOSE - 510 mm (20 inch) long, inlet and outlet section to tee at port 1A, Z-Bar loader

1шт.

27

L129691

FITTING

ADAPTER - straight, flow reducing, Z-Bar loader, Includes: Ref. 28

1шт.

29

L126936

SPACER

- 34 mm long

4шт.

L110143

VALVE

- check, Includes: Ref. 30 - 33

2шт.

30

NSS

NOT SOLD SEPARAT

BODY - check valve

1шт.

32

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss, Incl. Ref. 33

1шт.

34

218-5029

HYD CONNECTOR,9/16" - 18 Male JIC x 9/16" - 18 Male ORB

CONNECTOR, HYD, , Adapter, O-ring boss, at port 1A, XT loader, Includes: Ref. 35 9/16"-18, 37º x 9/16"-18, Pipe

1шт.

8

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

10

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

28

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

31

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

33

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

35

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
