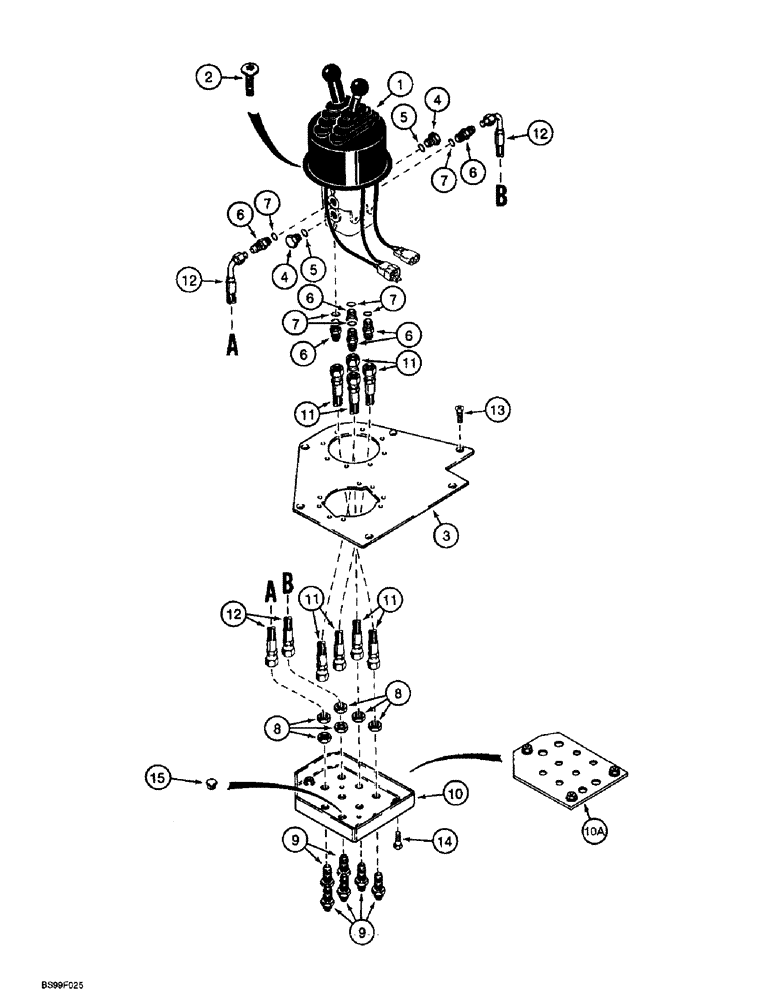

Запчасти Case 721B (8-064) - REMOTE LOADER CONTROL CIRCUIT, DUAL LEVER WITH TWO SPOOL VALVE (08) - HYDRAULICS

1

109509A1

LEVER ASSY & KNOB

VALVE ASSEMBLY - control, dual lever remote, parts list figure 8-84 and 8-86

1шт.

2

140-114

SCREW,Cross Pan Hd, 1/4" - 20 x 1"

Cross Pan Hd, 1/4"-20 NC x 1"

4шт.

3

1339947C1

LARGE PLATE

PLATE - mounting, remote control

1шт.

4

76349

PLUG,9/16" - 18 ORB

Incl. Ref. 5 Hex Hd, 9/16"-18 ORB

2шт.

6

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss, Incl. Ref. 7

6шт.

8

218-1254

LOCK NUT,Blkhd, 9/16"-18

NUT - hex, lock, bulkhead, 9/16 inch NF

6шт.

9

218-673

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

ADAPTER - straight, 9/16-18 inch flare x bulkhead flare

6шт.

10

1339969C1

LARGE PLATE

SEPARATOR - hose, loader control, if used

1шт.

10a

137716A2

LARGE PLATE

SEPARATOR - hose, loader control, if used

1шт.

11

1339965C1

HOSE,9.53mm ID x 419.1mm L, SAE 100R1

- 419 mm (16-1/2 inch) long, remote control to hose separator

4шт.

12

1339964C1

HOSE,9.53mm ID x 501.7mm L, SAE 100R1

- 502 mm (19-7/8 inch) long, remote control to hydraulic reservoir to pressure reducing valve

2шт.

13

43-12512

SCREW,Cross Flat Hd, 1/4"-20 x 3/4"

- machine, flat Phillips, 1/4 NC x 3/4 inch

6шт.

14

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 6 - 1.0 x 25 mm

3шт.

15

353-406

PLUG,Dome, .625" hole, Nylon

- button, 5/8 inch

4шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

7

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
