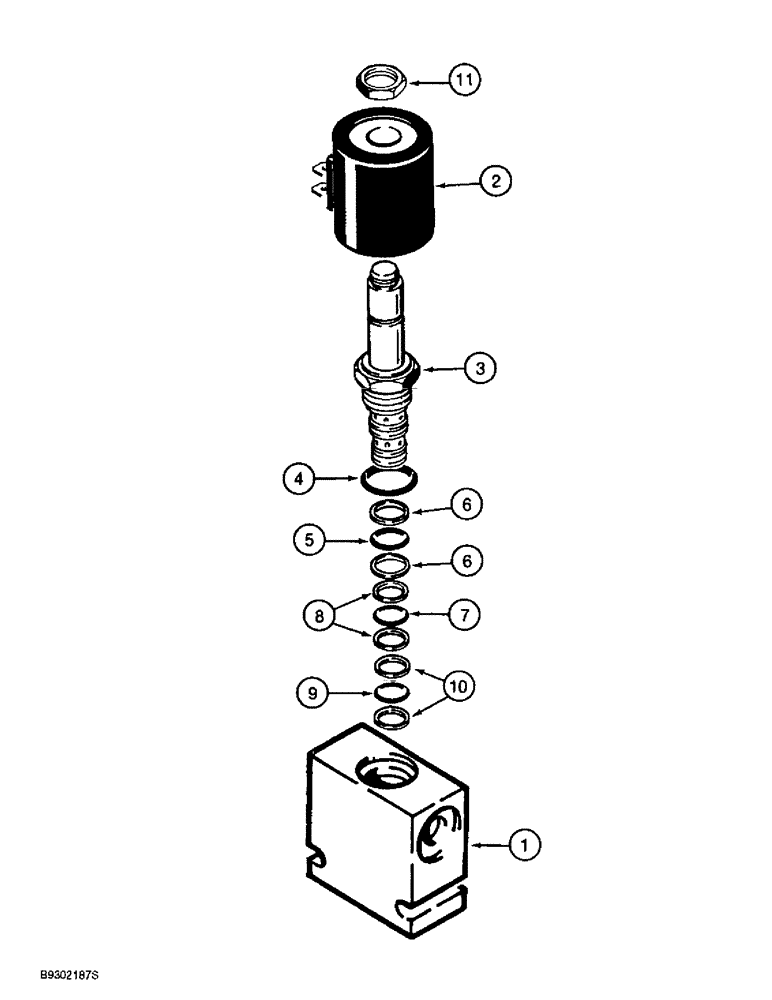

Запчасти Case 721B (8-060) - COUPLER LOCKING SOLENOID VALVE (08) - HYDRAULICS

118857A1

VALVE

ASSEMBLY - solenoid, Includes: Ref. 1 - 11

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

124637A1

SOLENOID

Includes 124639A1 Seal Kit; Assembly No Longer Includes 124638A1 Solenoid, Purchase Separately

1шт.

2

124638A1

SOLENOID

- valve

1шт.

3

NSS

NOT SOLD SEPARAT

CARTRIDGE - valve

1шт.

124639A1

SEAL KIT

KIT - seal, Includes: Ref. 4 - 10

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING - upper

1шт.

5

NSS

NOT SOLD SEPARAT

O-RING - position 1

1шт.

6

NSS

NOT SOLD SEPARAT

RING - backup, position 1

2шт.

7

NSS

NOT SOLD SEPARAT

O-RING - position 2

1шт.

8

NSS

NOT SOLD SEPARAT

RING - backup, position 2

2шт.

9

NSS

NOT SOLD SEPARAT

O-RING - position 3

1шт.

10

NSS

NOT SOLD SEPARAT

RING - backup, position 3

2шт.

11

NSS

NOT SOLD SEPARAT

NUT - hex, special

1шт.
