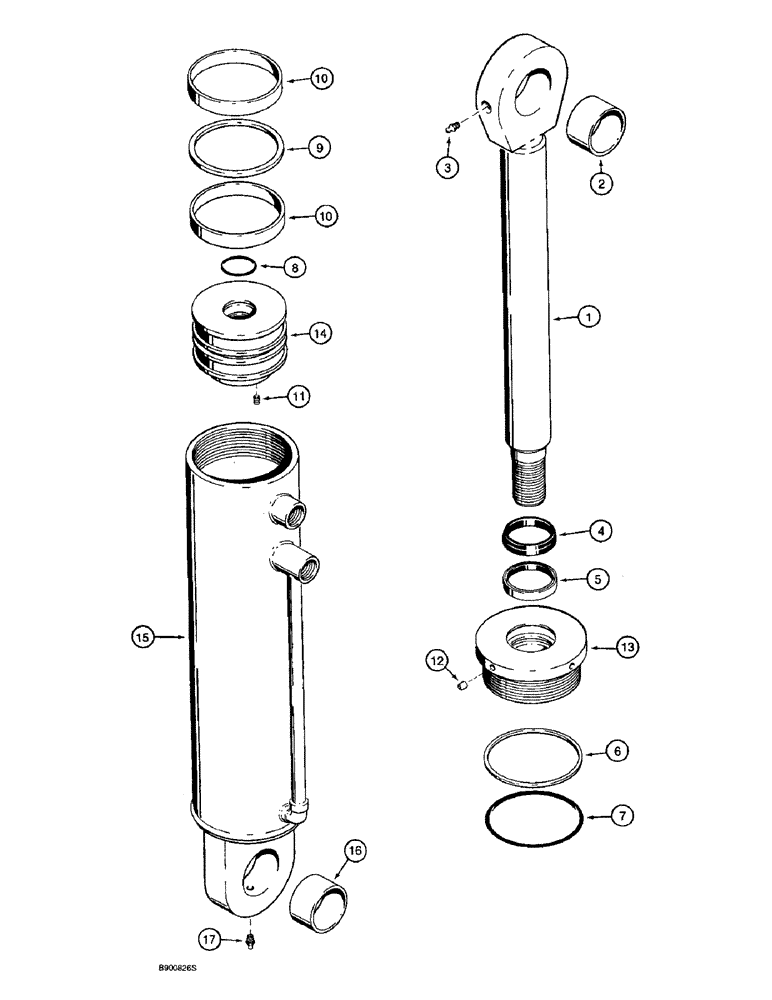

Запчасти Case 721B (8-056) - LOADER AUXILIARY CYLINDER, Z-BAR LOADER (08) - HYDRAULICS

S301431

CYLINDER ASSY.,Double Acting, 50.8mm Rod, 254mm Stroke

CYLINDER ASSEMBLY - 102 (4) ID x 254 mm (10 inch) stroke, Includes: Ref. 1 - 17

2шт.

See figure 8-18 for the auxiliary bucket hydraulics and figure 9-20 for the auxiliary bucket and cylinder mounting pins.

1шт.

1

S301440

PISTON ROD

ROD ASSEMBLY - piston, Includes: Ref. 2 and 3

1шт.

2

S300154

BUSHING

- rod

1шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

S301442

SEAL KIT

KIT - seal, Includes: Ref. 4 - 12

1шт.

4

NSS

NOT SOLD SEPARAT

WIPER - rod

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL - U-cup, rod

1шт.

6

NSS

NOT SOLD SEPARAT

RING - backup, gland, outer

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING - gland, outer

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING -, Serial Range: rod-piston

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

10

NSS

NOT SOLD SEPARAT

RING - wear, piston

2шт.

11

NSS

NOT SOLD SEPARAT

SCREW - set, piston retaining

1шт.

12

NSS

NOT SOLD SEPARAT

PIN - thread locking, gland, 1/4 x 3/16 inch long

1шт.

13

S301441

GLAND

- cylinder

1шт.

14

S301438

PISTON

- cylinder

1шт.

15

S301439

HYD CYL SLEEVE

TUBE - cylinder, Includes: Ref. 16 and 17

1шт.

16

S300154

BUSHING

- tube

1шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.
