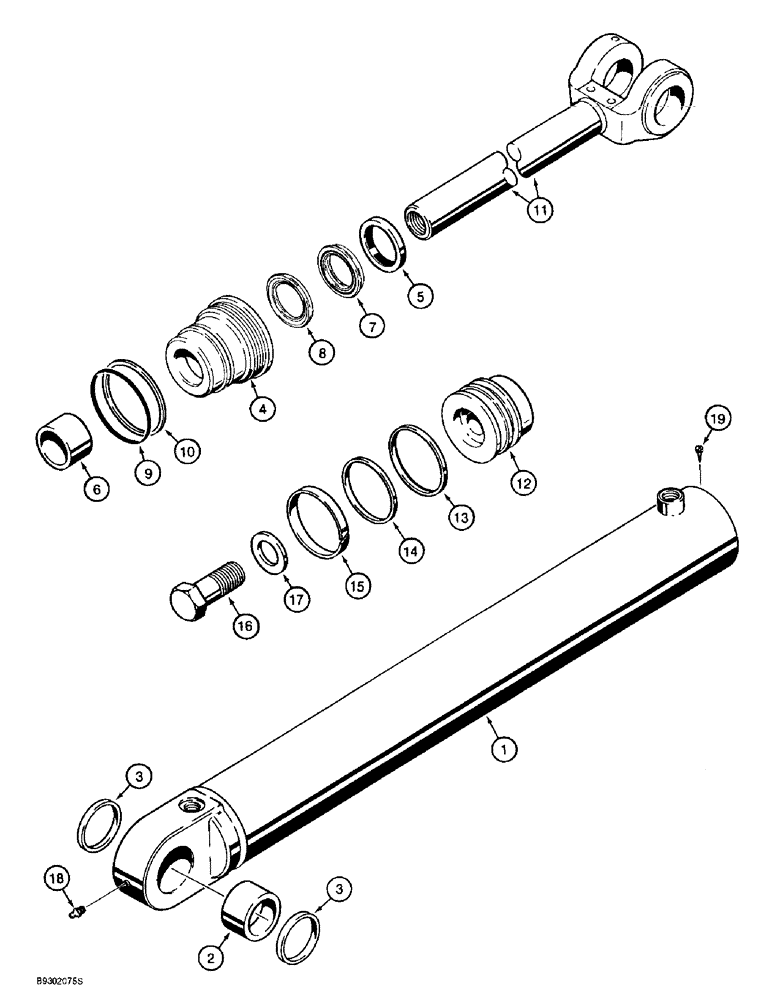

Запчасти Case 721B (8-054) - BUCKET CYLINDERS, XT LOADER (08) - HYDRAULICS

112551A1

JACK BODY

CYLINDER ASSEMBLY - 114 (4-1/2) ID x 1001 mm (39-13/32 inch) stroke, Includes: Ref. 1 - 19

2шт.

1

112015A1

TUBE,114.17 mm ID, 1238.8 mm Length

ASSEMBLY - cylinder, Includes: Ref. 2 and 3

1шт.

2

G100495

BUSHING,51.13mm ID x 63.63mm OD x 45.72mm L

- tube

1шт.

3

1280600C1

SEAL,50.77mm ID x 63.5mm OD x 7.92mm Thk

- tube eye

2шт.

NSS

NOT SOLD SEPARAT

GLAND ASSEMBLY - cylinder, Includes: Ref. 4 - 10

1шт.

4

1978121C2

GLAND

- cylinder

1шт.

5

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

WIPER - piston rod, outer

1шт.

Part of Seal Kit, P/N 1543279C1

1шт.

6

G102426

BUSHING,57.15mm ID x 60.22mm OD x 37.85mm L

- Center

1шт.

Part of Seal Kit, P/N 1543279C1

1шт.

1542877C1

SEAL KIT,57.2mm Rod

KIT - seal, NSS, Includes: Ref. 7 and 8

1шт.

Part of Seal Kit, P/N 1543279C1

1шт.

7

1542929C1

SEAL,2.778mm OD

- rod, NSS, order 1543279C1 seal kit, shown below

1шт.

Part of Seal Kit, P/N 1543279C1

1шт.

8

1542928C1

SEAL,2.275" ID

- buffer, NSS, order 1543279C1 seal kit, shown below

1шт.

Part of Seal Kit, P/N 1543279C1

1шт.

9

238-5243

O-RING,0.139" Thk x 4.11" ID, -243, Cl 5, 75 Duro

- 4-1/4 ID x 1/8 inch wide

1шт.

Part of Seal Kit, P/N 1543279C1

1шт.

10

G109300

RING,113.46mm ID x 118.97mm OD x 1.17mm Thk

- backup, gland O-ring

1шт.

Part of Seal Kit, P/N 1543279C1

1шт.

11

112019A1

PISTON ROD

ROD - piston, 57 mm (2-1/4 inch) diameter

1шт.

12

1986543C1

PISTON

- cylinder

1шт.

13

G101994

SEAL,RECTANGULAR, 111.02mm ID x 115.75mm OD x 6.96mm Thk

- piston

1шт.

Part of Seal Kit, P/N 1543279C1

1шт.

14

G101995

SEALING RING,Square, 5.28mm Thk x 100.71mm ID

RING - backup, piston seal

1шт.

Part of Seal Kit, P/N 1543279C1

1шт.

15

G101996

WEAR RING,4.5" OD x 0.75" Thk

RING - wear, piston

1шт.

Part of Seal Kit, P/N 1543279C1

1шт.

16

28-2052

BOLT,Hex, 1-1/4" - 12 x 3-1/4", Gr 8

- hex, 1-1/4 NF x 3-1/4 inch, grade 8

1шт.

17

G104989

WASHER,34.29mm ID x 60.3mm OD x 4.78mm Thk

- flat, hardened, special

1шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

19

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex hd, No. 8 x 3/8 "

1шт.

1543279C1

SEAL KIT

KIT - seal, includes Ref. 5 - 10 and 13 - 15

1шт.
