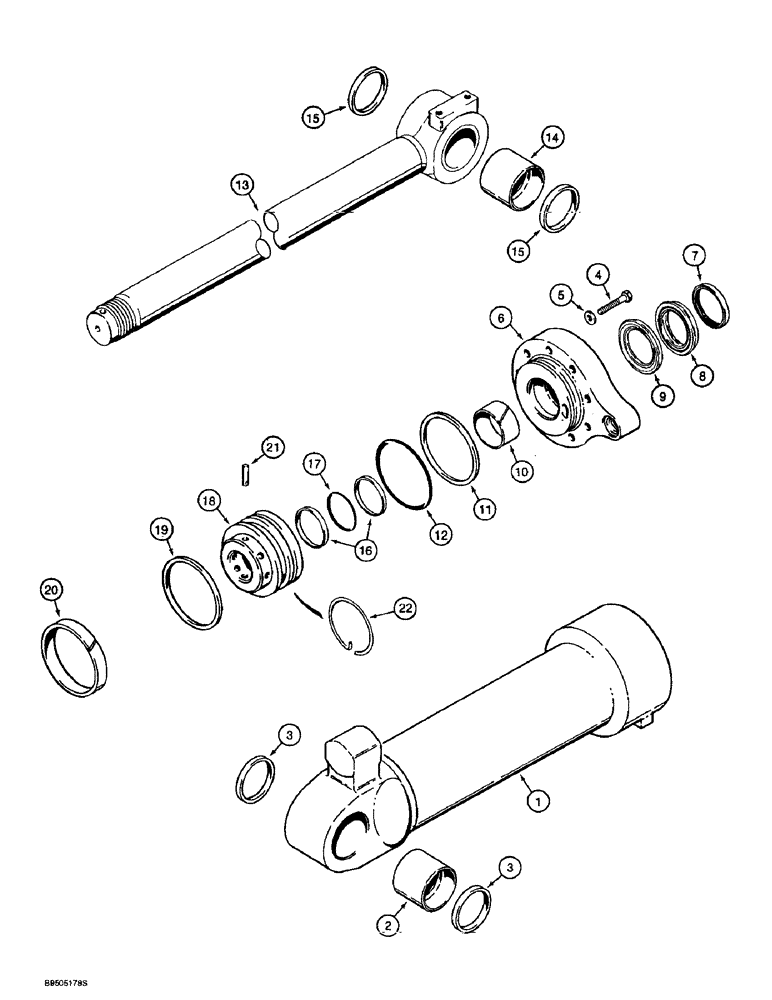

Запчасти Case 721B (8-053A) - BUCKET CYLINDER - 125873A1, Z-BAR LOADER WITH EXTENDED REACH (08) - HYDRAULICS

125873A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 165 (6-1/2) ID x 544 mm (21-7/16 inch) stroke, Includes: Ref. 1 - 22

1шт.

1

1343668C2

HYD CYL SLEEVE

TUBE - cylinder, Includes: Ref. 2

1шт.

2

L127014

BUSHING,82.73mm ID x 95.38mm OD x 82mm L

- tube

1шт.

3

L104363

WIPER SEAL

- tube eye

2шт.

4

28-1048

BOLT,Hex, 5/8" - 18 x 3", Gr 8

- hex, 5/8 NF x 3 inch, grade 8

9шт.

5

S92353

WASHER

- flat, 41/64 x 1-5/16 x 1/4 inch, hardened

9шт.

NSS

NOT SOLD SEPARAT

GLAND ASSEMBLY - cylinder, Includes: Ref. 6 - 12

1шт.

6

1543091C1

GLAND

- cylinder

1шт.

7

D95148

WIPER SEAL

WIPER - seal

1шт.

Part of Seal Kit, P/N 1543303C1

1шт.

1542881C1

SEAL KIT

KIT - seal, NSS, order 1543303C1, Includes: Ref. 8 and 9

1шт.

Part of Seal Kit, P/N 1543303C1

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL - rod, NSS, order 1543303C1 seal kit

1шт.

9

NSS

NOT SOLD SEPARAT

SELA - buffer, NSS, order 1543303C1 seal kit

1шт.

10

G102429

BUSHING,76.2mm ID x 79.27mm OD x 37.85mm L

-, Serial Range: gland-rod

1шт.

Part of Seal Kit, P/N 1543303C1

1шт.

11

G110421

BACK-UP RING,151.81mm ID x 160.95mm OD x 1.9mm Thk

RING - backup, gland O-ring

1шт.

Part of Seal Kit, P/N 1543303C1

1шт.

12

238-5360

O-RING,0.21" Thk x 5.85" ID, -360, Cl 5, 75 Duro

1шт.

Part of Seal Kit, P/N 1543303C1

1шт.

13

L302890

PISTON ROD

ROD - piston, 76 mm (3 inch) diameter, Includes: Ref. 14

1шт.

14

L127014

BUSHING,82.73mm ID x 95.38mm OD x 82mm L

- rod eye

1шт.

15

L104363

WIPER SEAL

- rod eye

2шт.

16

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- backup, gland O-ring, Serial Range: piston-rod

2шт.

Part of Seal Kit, P/N 1543303C1

1шт.

17

238-5234

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

1шт.

Part of Seal Kit, P/N 1543303C1

1шт.

18

1980351C2

JACK PISTON

PISTON - rod, 2-7/8 inch joint threads

1шт.

19

S228607

SEAL,145.16mm ID x 166.85mm OD x 9.32mm Thk

SEAL - piston

1шт.

Part of Seal Kit, P/N 1543303C1

1шт.

20

S109539

WEAR RING,Split, 158.75mm ID x 165.1mm OD x 38.1mm Thk

RING, WEAR, Serial Range: Piston-tube

1шт.

Part of Seal Kit, P/N 1543303C1

1шт.

21

G106602

LOCK PIN

PIN - locking, Serial Range: piston-rod

1шт.

22

1980352C1

RING

- retaining, locking pin

1шт.

1543303C1

SEAL KIT

KIT - seal, includes Ref. 7, 10 - 12, 16, 17, 19 and 20

1шт.
