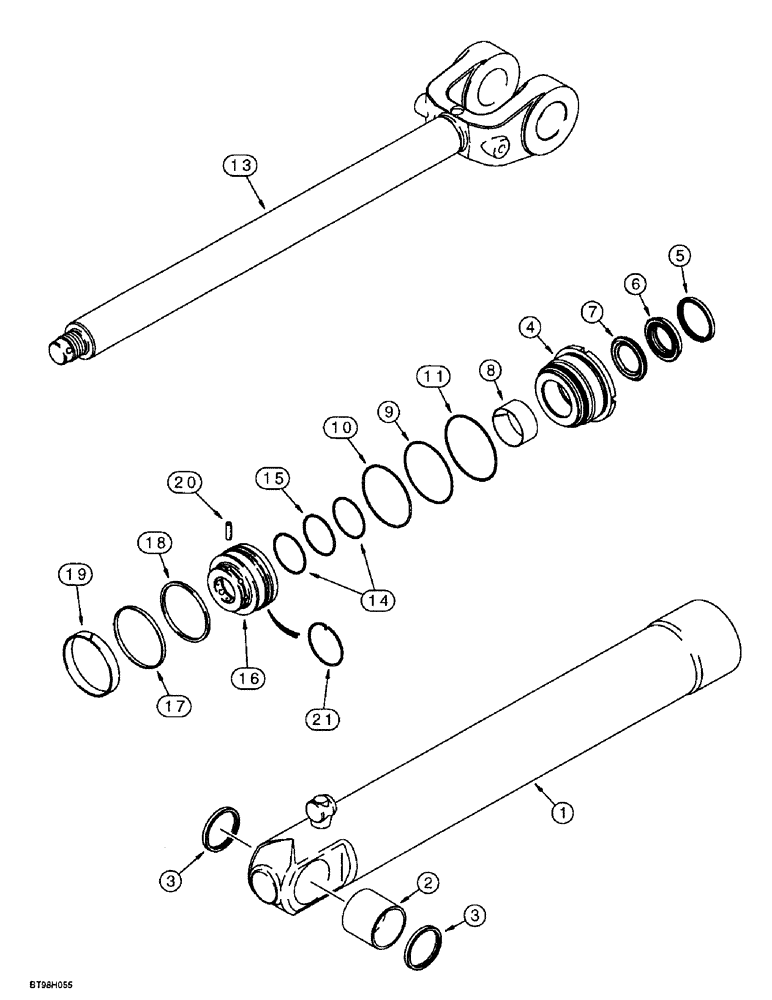

Запчасти Case 721B (8-051A) - LIFT CYLINDERS (08) - HYDRAULICS

280706A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 127 (5) ID x 834 mm (32-13/16 inch) stroke, right-hand lift, Includes: Ref. 1 - 20

1шт.

280707A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 127 (5) ID x 834 mm (32-13/16 inch) stroke, left-hand lift, Includes: Ref. 1 - 20

1шт.

1

280702A1

HYD CYL SLEEVE

TUBE ASSEMBLY - right-hand, extruded, Includes: Ref. 2 and 3

1шт.

1a

280703A1

HYD CYL SLEEVE

TUBE ASSEMBLY - left-hand, Includes: Ref. 2 and 3

1шт.

2

L127015

BUSHING,76.38mm ID x 89.03mm OD x 82mm L

- tube

1шт.

3

D95148

WIPER SEAL

WIPER - seal

2шт.

NSS

NOT SOLD SEPARAT

GLAND - cylinder, order 1543305C1 seal kit, below, Includes: Ref. 4 and 5

1шт.

4

198110A1

GLAND

- cylinder

1шт.

5

D95148

WIPER SEAL

WIPER - seal

2шт.

Part of Seal Kit, P/N 1543305C1

1шт.

1542881C1

SEAL KIT

KIT - seal, NSS, order 1543305C1 seal kit, below, Includes: Ref. 6 and 7

1шт.

Part of Seal Kit, P/N 1543305C1

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - rod, order 1543305C1 seal kit, below

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - buffer, order 1543305C1 seal kit, below

1шт.

8

G102429

BUSHING,76.2mm ID x 79.27mm OD x 37.85mm L

-, Serial Range: gland-rod

1шт.

Part of Seal Kit, P/N 1543305C1

1шт.

9

G107970

BACK-UP RING,120.27mm ID x 127.13mm OD x 1.4mm Thk

1шт.

Part of Seal Kit, P/N 1543305C1

1шт.

10

238-5247

O-RING,0.139" Thk x 4.609" ID, -247, Cl 5, 75 Duro

1шт.

Part of Seal Kit, P/N 1543305C1

1шт.

11

238-5248

O-RING,0.139" Thk x 4.734" ID, -248, Cl 5, 75 Duro

1шт.

12

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex hd, No. 8 x 3/8 "

1шт.

13

199952A1

PISTON ROD

ROD - 76 mm ID

1шт.

14

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- backup

2шт.

Part of Seal Kit, P/N 1543305C1

1шт.

15

238-5234

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

1шт.

Part of Seal Kit, P/N 1543305C1

1шт.

16

G110368

PISTON

- rod

1шт.

17

1986753C1

SEAL,Locking, 123.8mm ID x 128.52mm OD x 6.96mm Thk

- piston

1шт.

Part of Seal Kit, P/N 1543305C1

1шт.

18

G102092

RING,Square, 5.28mm Thk x 113.92mm ID

- backup

1шт.

Part of Seal Kit, P/N 1543305C1

1шт.

19

G102090

RING,127mm OD, Ext

- wear

1шт.

Part of Seal Kit, P/N 1543305C1

1шт.

20

G106602

LOCK PIN

PIN - locking

1шт.

21

G110333

CIRCLIP

RING - retaining

1шт.

1543305C1

SEAL KIT

KIT - seal, includes Ref. 5, 8 - 10, 14, 15, and 17 - 19

1шт.
