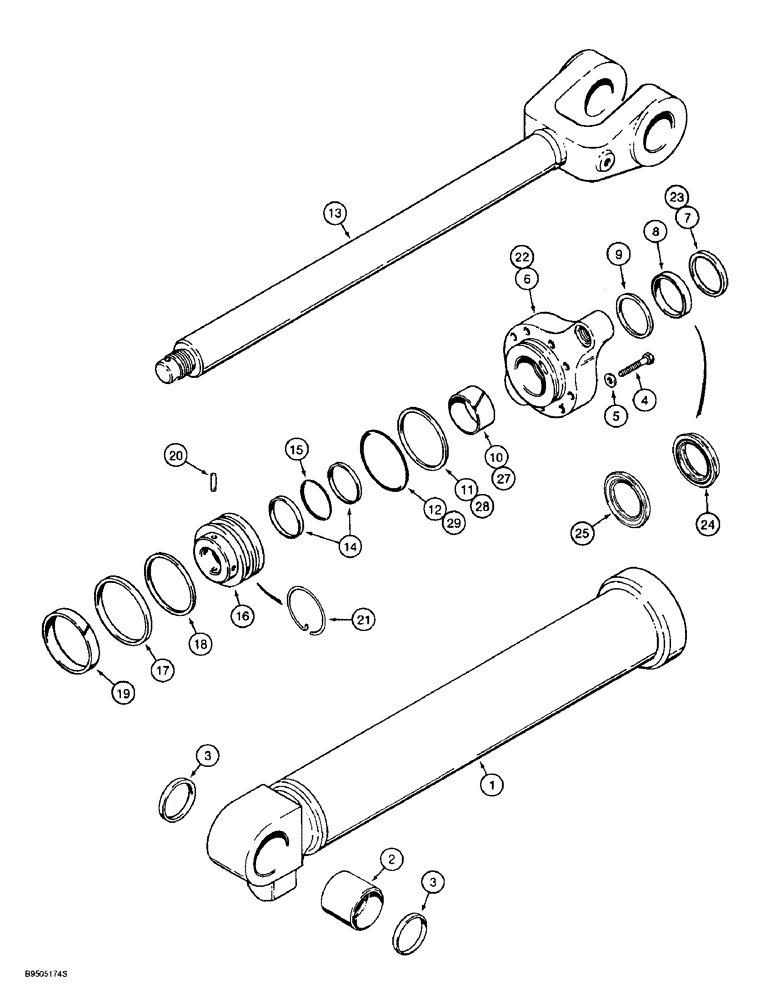

Запчасти Case 721B (8-050) - LIFT CYLINDERS (08) - HYDRAULICS

1343596C1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 127 (5) ID x 834 mm (32-13/16 inch) stroke, if used, no longer available, order 280706A1 cylinder and 280905A1 tube, Includes: Ref. 1 - 29

1шт.

1343595C1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 127 (5) ID x 834 mm (32-13/16 inch) stroke, if used, no longer available, order 280707A1 cylinder and 280904A1 tube, Includes: Ref. 1 - 29

1шт.

1

1343597C1

TUBE

- cylinder, 1343596C1 and 1343595C1 cylinders, Includes: Ref. 2

1шт.

2

L127015

BUSHING,76.38mm ID x 89.03mm OD x 82mm L

- tube

1шт.

3

D95148

WIPER SEAL

WIPER - seal

2шт.

4

28-944

BOLT,Hex, 9/16" - 18 x 2-3/4", Gr 8

- hex, 9/16 NF x 2-3/4 inch, grade 8

9шт.

5

G110688

WASHER

- flat, 16 x 25 x 2.54 mm, hardened

9шт.

G110365

CYLINDER END CAP

GLAND ASSEMBLY - cylinder, if used, no longer available, order Ref. 22, G110366 gland and 1543305C1 seal repair kit, Includes: Ref. 6 - 12

1шт.

For identification purposes, G110366 gland, Ref. 22, has a groove on the outside rim around the wiper. G110365 gland assembly does not have a groove.

1шт.

6

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

7

D95148

WIPER SEAL

WIPER - seal

1шт.

8

G109054

SEAL,76.15mm ID x 88.95mm OD x 10.69mm Thk

- U-cup, piston rod

1шт.

9

G109015

SEAL,75.69mm ID x 91.82mm OD x 4.9mm Thk

- buffer

1шт.

10

G102429

BUSHING,76.2mm ID x 79.27mm OD x 37.85mm L

-

1шт.

11

G107970

BACK-UP RING,120.27mm ID x 127.13mm OD x 1.4mm Thk

Gland O-Ring

1шт.

12

238-5247

O-RING,0.139" Thk x 4.609" ID, -247, Cl 5, 75 Duro

1шт.

13

199952A1

PISTON ROD

ROD - 76 mm ID, replaces 1343565C1

1шт.

14

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- backup, gland O-ring, Serial Range: piston-rod

2шт.

Part of Seal Kit, P/N 1543305C1

1шт.

15

238-5234

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

1шт.

Part of Seal Kit, P/N 1543305C1

1шт.

16

G110368

PISTON

- rod

1шт.

17

1986753C1

SEAL,Locking, 123.8mm ID x 128.52mm OD x 6.96mm Thk

- piston, replaces G102091

1шт.

Part of Seal Kit, P/N 1543305C1

1шт.

18

G102092

RING,Square, 5.28mm Thk x 113.92mm ID

- backup, piston seal

1шт.

Part of Seal Kit, P/N 1543305C1

1шт.

19

G102090

RING,127mm OD, Ext

- wear, Serial Range: piston-tube

1шт.

Part of Seal Kit, P/N 1543305C1

1шт.

20

G106602

LOCK PIN

PIN - locking, Serial Range: piston-rod

1шт.

21

G110333

CIRCLIP

RING - retaining, locking pin

1шт.

NSS

NOT SOLD SEPARAT

GLAND ASSEMBLY - cylinder, if used, Includes: Ref. 22 - 25

1шт.

For identification purposes, G110366 gland, Ref. 22, has a groove on the outside rim around the wiper. G110365 gland assembly does not have a groove.

1шт.

22

G110366

CYLINDER END CAP

GLAND - cylinder, uses Ref. 24 and 25

1шт.

For identification purposes, G110366 gland, Ref. 22, has a groove on the outside rim around the wiper. G110365 gland assembly does not have a groove.

1шт.

23

D95148

WIPER SEAL

WIPER - seal

1шт.

Part of Seal Kit, P/N 1543305C1

1шт.

1542881C1

SEAL KIT

KIT - seal, NSS, order 1543305C1

1шт.

Part of Seal Kit, P/N 1543305C1

1шт.

24

NSS

NOT SOLD SEPARAT

SEAL - rod, NSS, order 1543305C1

1шт.

25

NSS

NOT SOLD SEPARAT

SEAL - buffer, NSS, order 1543305C1

1шт.

27

G102429

BUSHING,76.2mm ID x 79.27mm OD x 37.85mm L

-, Serial Range: gland-rod

1шт.

Part of Seal Kit, P/N 1543305C1

1шт.

28

G107970

BACK-UP RING,120.27mm ID x 127.13mm OD x 1.4mm Thk

Gland O-Ring

1шт.

Part of Seal Kit, P/N 1543305C1

1шт.

29

238-5247

O-RING,0.139" Thk x 4.609" ID, -247, Cl 5, 75 Duro

1шт.

Part of Seal Kit, P/N 1543305C1

1шт.

1543305C1

SEAL KIT

KIT seal, includes Refs. 14, 15, 17-19, 23, P/N 1542881C1, 27-29 and an instruction sheet, used with G110366 gland

1шт.
