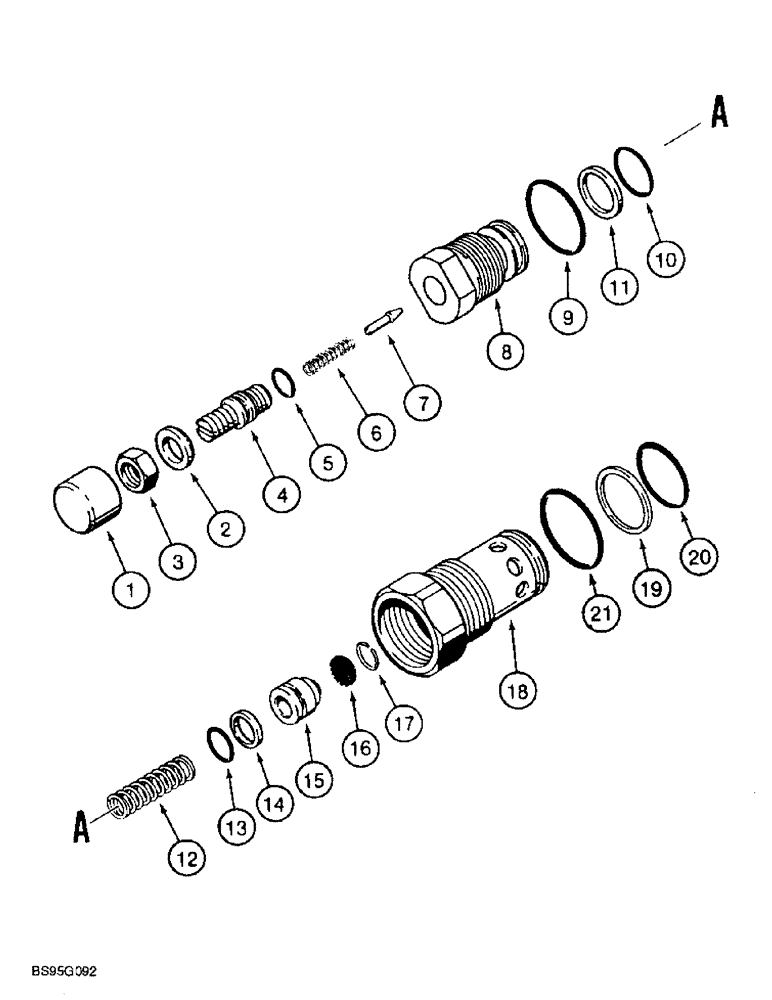

Запчасти Case 721B (8-049A) - CIRCUIT RELIEF VALVE - 121005A1 (08) - HYDRAULICS

121005A1

VALVE

ASSEMBLY - circuit relief, Includes: Ref. 1 - 21

1шт.

1

NSS

NOT SOLD SEPARAT

COVER - tamper proof, if used

1шт.

2

1978295C1

WASHER

- special

1шт.

3

425-156

JAM NUT,Jam, 3/8"-24, G5

- hex, jam, 3/8 inch NF

1шт.

4

N9463

ADJUSTMENT SCREW

- adjusting

1шт.

5

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

-012, 70 Duro, .364" ID x .070" Thk

1шт.

6

N9465

SPRING

- poppet

1шт.

7

N9464

PLUNGER

POPPET - relief valve

1шт.

8

N9769

BODY

- pilot plunger

1шт.

9

238-5019

O-RING,0.07" Thk x 0.801" ID, -19, Cl 5, 75 Duro

-019, 70 Duro, .801" ID x .070" Thk, Pilot body, large

1шт.

10

A55911

O-RING,0.807" ID

- pilot body, small

1шт.

11

N9768

BACK-UP RING,0.831mm ID x 0.939mm OD x 0.052mm

RING - backup, small O-ring

1шт.

12

191210A1

SPRING

- poppet

1шт.

13

191209A1

SEAL

O-RING - poppet

1шт.

14

121038A1

RING

- backup

1шт.

15

S300249

VALVE POPPET

POPPET - relief valve

1шт.

16

S300248

VALVE POPPET

SCREEN - poppet

1шт.

17

N9473

RING, SNAP

RING - retaining

1шт.

18

NSS

NOT SOLD SEPARAT

BODY - relief valve

1шт.

19

1978299C1

BACK-UP RING

RING - backup

1шт.

20

238-5021

O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro

-021, 70 Duro, .926" ID x .070" Thk

1шт.

21

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

14-1, 90 Duro, 1.048" ID x .116" Thk

1шт.
