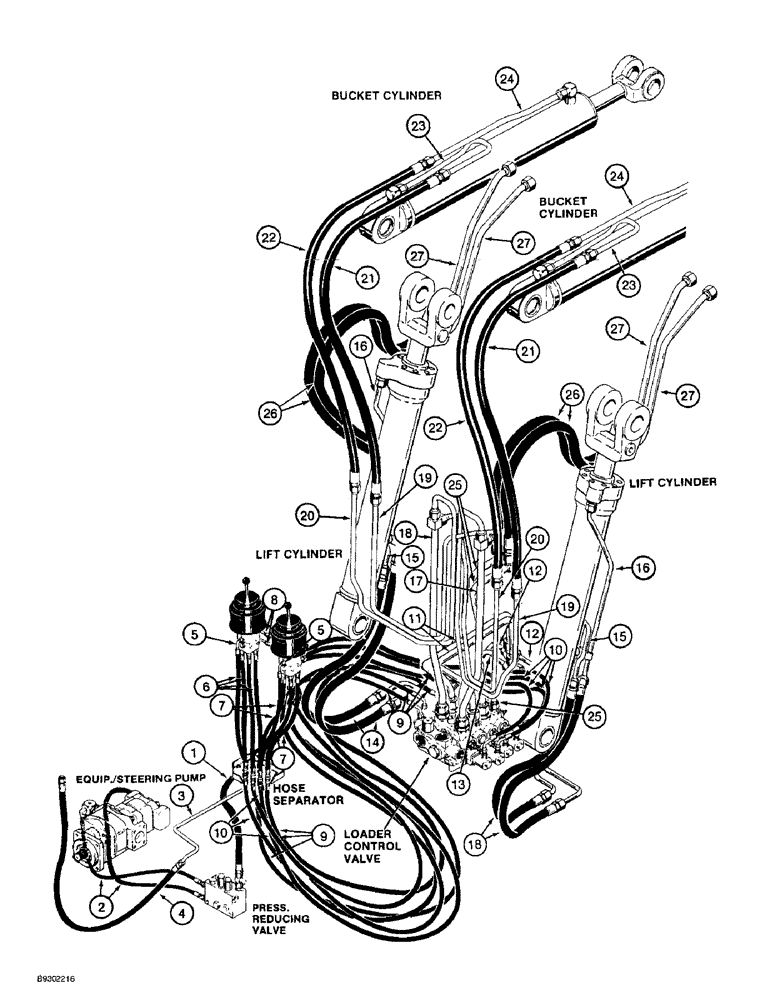

Запчасти Case 721B (1-30) - PICTORIAL INDEX, LOADER HYDRAULIC CIRCUIT - XT LOADER, FOUR SPOOL CONTROL VALVE (00) - PICTORIAL INDEX

1

Hose, hose separator to pressure 8-79

1шт.

reducing valve

1шт.

2

Hose, pressure reducing, Serial Range: valve-8-79

1шт.

elbow at steering pump

1шт.

3

Tube, hose separator to hose at 8-79

1шт.

hydraulic reservoir

1шт.

4

Hose, tube to hydraulic reservoir 8-79

1шт.

5

Hose, remote controls to hose 8-75

1шт.

separator, hydraulic reservoir and

1шт.

pressure reducing valve ports

1шт.

6

Hose, remote control to hose 8-75

1шт.

separator ports 1A, 1B, 2A and 2B

1шт.

7

Hose, auxiliary remote, Serial Range: control-8-75

1шт.

hose separator ports 3A, 3B, 4A and

1шт.

4B

1шт.

8

Hose, auxiliary remote, Serial Range: control-8-75

1шт.

remote control

1шт.

9

Hose, hose separator to ports 1B, 8-77

1шт.

2A, 3B, and 4B

1шт.

10

Hose, hose separator to ports 1A, 8-77

1шт.

2B, 3A, and 4A

1шт.

11

Tube, at valve to lift cylinders 8-11

1шт.

12

Tube, tube to lift cylinders, rod 8-11

1шт.

end

1шт.

13

Tube, tube to lift cylinders, 8-11

1шт.

closed end

1шт.

14

Hose, at cylinders 8-11

1шт.

15

Tube, lift cylinder, closed end 8-11

1шт.

16

Tube, lift cylinder, rod end 8-11

1шт.

17

Tube, right-hand, at valve to 8-15, 8-15B

1шт.

bucket cylinders

1шт.

18

Tube, left-hand, at valve to bucket 8-15, 8-15B

1шт.

cylinders

1шт.

19

Tube, tube to bucket cylinder, 8-15, 8-15B

1шт.

closed end

1шт.

20

Tube, tube to bucket cylinder, rod 8-15, 8-15B

1шт.

end

1шт.

21

Hose, to bucket cylinder, closed 8-15, 8-15B

1шт.

end

1шт.

22

Hose, to bucket cylinder, rod end 8-15, 8-15B

1шт.

23

Tube, at bucket cylinder, closed 8-15, 8-15B

1шт.

end

1шт.

24

Tube, at bucket cylinder, rod end 8-15, 8-15B

1шт.

25

Tube, auxiliary section to hose 8-23

1шт.

26

Hose, tube at loader valve to tube 8-23

1шт.

on lift arm

1шт.

27

Tube, at loader arm 8-23

1шт.
