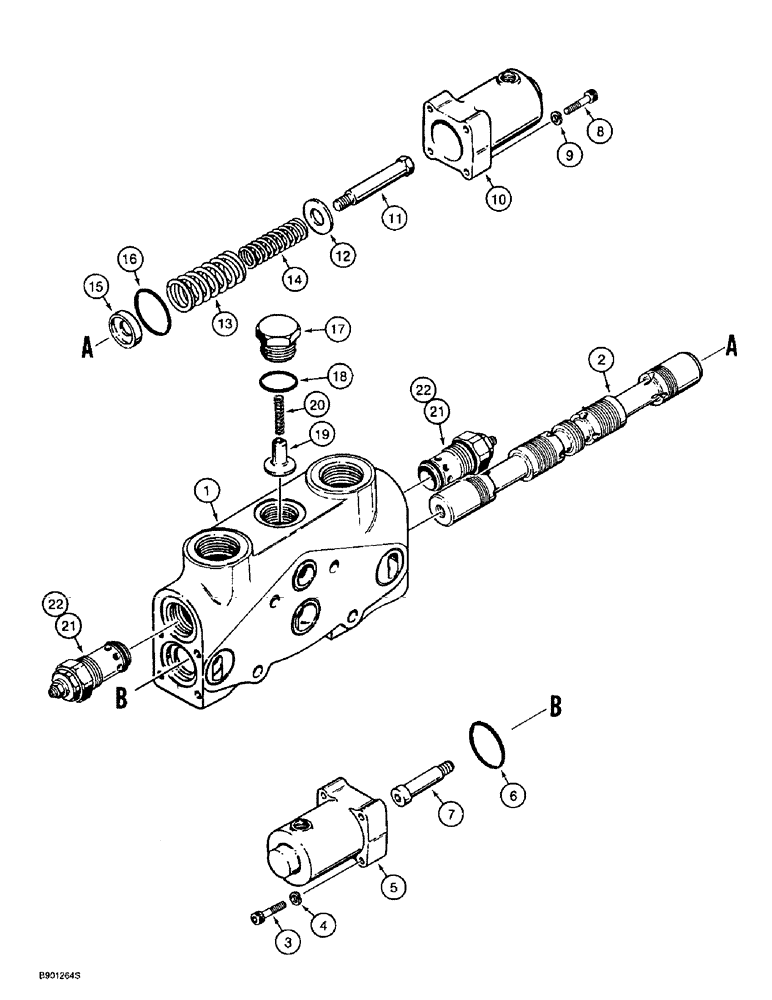

Запчасти Case 721B (8-044) - LOADER AUXILIARY SECTION - 1978280C1 (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1978280C1
SECTOR
SECTION ASSEMBLY - loader auxiliary, Includes: Ref. 1 - 22
1шт.
1
NSS
NOT SOLD SEPARAT
HOUSING - bucket section
1шт.
2
NSS
NOT SOLD SEPARAT
SPOOL - bucket section
1шт.
190016A1
TAPPET
KIT - spool positioner, spool end, replaces 1978284C2, Includes: Ref. 3 - 7
1шт.
3
326-424
BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 8
4шт.
4
92-61025
LOCK WASHER,1/4"
WASHER - Hi-Collar lock, 1/4 inch
4шт.
5
NSS
NOT SOLD SEPARAT
CAP - spring
1шт.
6
238-5128
O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro
Cap -128, 70 Duro, 1.487" ID x .103" Thk
1шт.
7
NSS
NOT SOLD SEPARAT
BOLT - spool guide
1шт.
190017A1
TAPPET
KIT - spool positioner, spring end, replaces 1978288C2, Includes: Ref. 8 - 16
1шт.
8
326-424
BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 8
4шт.
9
92-61025
LOCK WASHER,1/4"
WASHER - Hi-Collar lock, 1/4 inch
4шт.
10
NSS
NOT SOLD SEPARAT
CAP - spring
1шт.
11
NSS
NOT SOLD SEPARAT
BOLT - spool positioner
1шт.
12
NSS
NOT SOLD SEPARAT
SPACER - spring retainer
1шт.
13
NSS
NOT SOLD SEPARAT
SPRING - spool positioner, large
1шт.
14
NSS
NOT SOLD SEPARAT
SPRING - spool positioner, small
1шт.
15
NSS
NOT SOLD SEPARAT
SPACER - spring
1шт.
16
238-5128
O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro
1шт.
102204A1
SET
KIT - plug, load check, Includes: Ref. 17 - 20
1шт.
17
NSS
NOT SOLD SEPARAT
PLUG - load check
1шт.
18
237-6014
O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro
14-1, 90 Duro, 1.048" ID x .116" Thk
1шт.
19
NSS
NOT SOLD SEPARAT
POPPET - load check
1шт.
20
NSS
NOT SOLD SEPARAT
SPRING - load check
1шт.
21
102211A1
VALVE
ASSEMBLY - circuit relief and anticavitation, with flat screen on poppet, production only, for service order 102210A1 valve, Ref. 22
2шт.
22
102210A1
VALVE
ASSEMBLY - relief, with flat screen on poppet, circuit relief and anticavitation, service replacement, parts listfigure 8-46, see your service manual for proper pressure setting
2шт.
Выбрано товаров: 26
