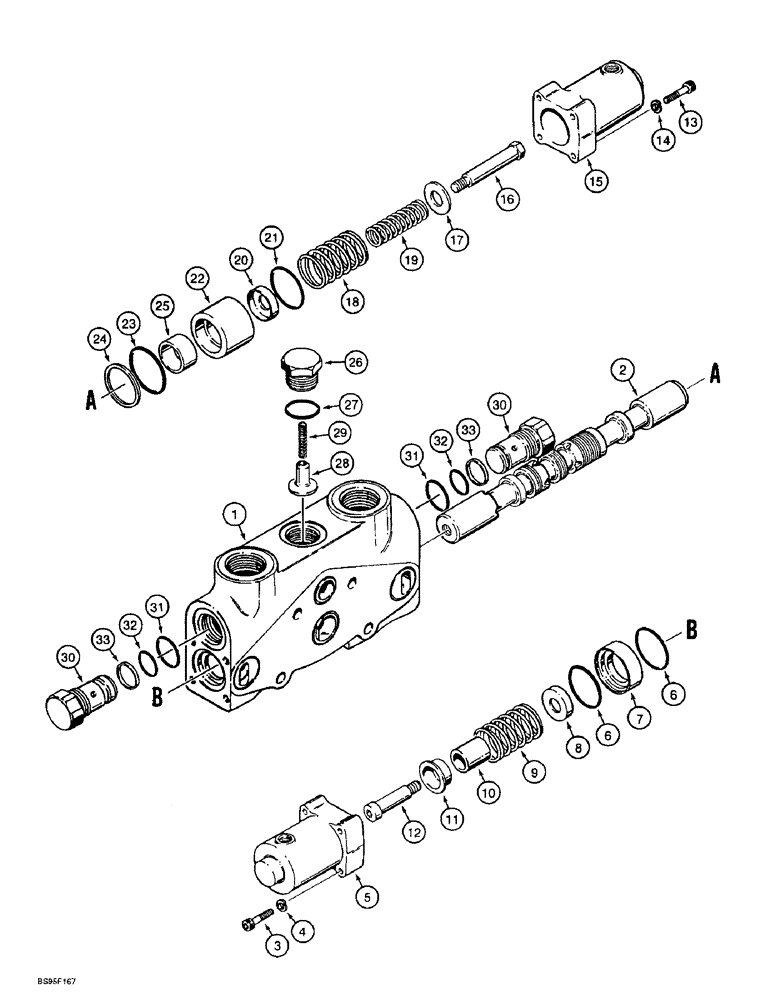

Запчасти Case 721B (8-039A) - LOADER LIFT SECTION - 125844A1 (08) - HYDRAULICS

125844A1

SECTOR

SECTION ASSEMBLY - lift, Includes: Ref. 1 - 33

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - lift section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - lift section

1шт.

1978303C1

SET

KIT - positioner, float, three position, Includes: Ref. 3 - 12

1шт.

3

326-432

BOLT,Hex, 1/4" - 20 x 2", Gr 8

4шт.

4

92-61025

LOCK WASHER,1/4"

WASHER - Hi-Collar lock, 1/4 inch

4шт.

5

NSS

NOT SOLD SEPARAT

CAP - spring

1шт.

6

238-5128

O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro

Cap -128, 70 Duro, 1.487" ID x .103" Thk

2шт.

7

NSS

NOT SOLD SEPARAT

SPACER - cap

1шт.

8

NSS

NOT SOLD SEPARAT

RETAINER - spring, inner

1шт.

9

NSS

NOT SOLD SEPARAT

SPRING - spool positioner

1шт.

10

NSS

NOT SOLD SEPARAT

SLIDE - spool positioner

1шт.

11

NSS

NOT SOLD SEPARAT

SEAT - spring, outer

1шт.

12

NSS

NOT SOLD SEPARAT

BOLT - spool guide

1шт.

1978310C1

SET

KIT - positioner, float, regeneration, Includes: Ref. 13 - 25

1шт.

13

NSS

NOT SOLD SEPARAT

SCREW - hex socket, 1/4 NC x 3 inch

4шт.

14

92-61025

LOCK WASHER,1/4"

WASHER - Hi-Collar lock, 1/4 inch

4шт.

15

NSS

NOT SOLD SEPARAT

CAP - spring

1шт.

16

NSS

NOT SOLD SEPARAT

BOLT - spool positioner

1шт.

17

NSS

NOT SOLD SEPARAT

SPACER - spring retainer

1шт.

18

NSS

NOT SOLD SEPARAT

SPRING - spool positioner, large

1шт.

19

NSS

NOT SOLD SEPARAT

SPRING - spool positioner, small

1шт.

20

NSS

NOT SOLD SEPARAT

SPACER - spring

1шт.

21

238-5128

O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro

Cap -128, 70 Duro, 1.487" ID x .103" Thk

1шт.

22

NSS

NOT SOLD SEPARAT

SPACER - cap

1шт.

23

238-5124

O-RING,0.103" Thk x 1.237" ID, -124, Cl 5, 75 Duro

Cap spacer -124, 70 Duro, 1.237" ID x .103" Thk

1шт.

24

NSS

NOT SOLD SEPARAT

SPACER - seal

1шт.

25

NSS

NOT SOLD SEPARAT

SLEEVE - cap spacer

1шт.

102204A1

SET

KIT - plug, load check, Includes: Ref. 26 - 29

1шт.

26

NSS

NOT SOLD SEPARAT

PLUG - load check

1шт.

27

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

14-1, 90 Duro, 1.048" ID x .116" Thk

1шт.

28

NSS

NOT SOLD SEPARAT

POPPET - load check

1шт.

29

NSS

NOT SOLD SEPARAT

SPRING - load check

1шт.

125846A1

VALVE

ASSEMBLY - anti-cav check, Includes: Ref. 30 - 33

2шт.

30

NSS

NOT SOLD SEPARAT

VALVE - lift section, internal components not serviced separately

1шт.

31

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

14-1, 90 Duro, 1.048" ID x .116" Thk

1шт.

32

238-5021

O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro

-021, 70 Duro, .926" ID x .070" Thk, Plug

1шт.

33

1986635C1

SEAL KIT

KIT - seal, small O-ring, replaces 1978299C1 ring

1шт.
