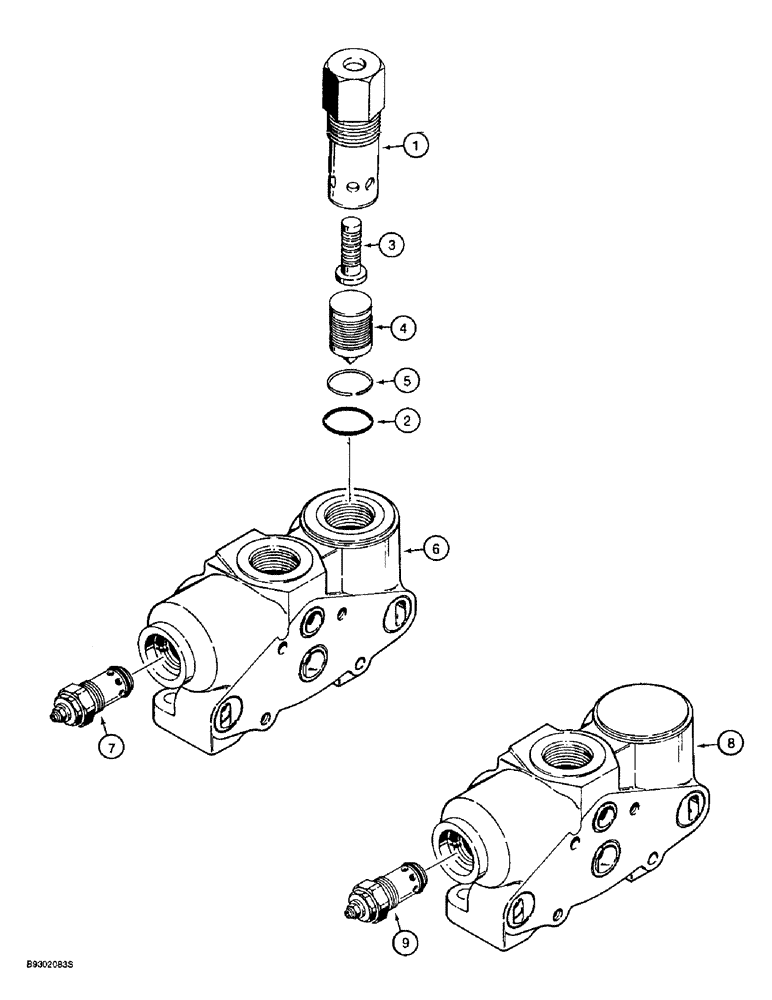

Запчасти Case 721B (8-036) - LOADER INLET AND OUTLET SECTION, INLET AND OUTLET SECTION - 197263C1 (08) - HYDRAULICS

1978263C1

VALVE

SECTION ASSEMBLY - inlet and outlet, Includes: Ref. 1 - 7

1шт.

1978274C1

GOVERNOR

VALVE ASSEMBLY - low pressure regeneration, Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

2

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

3

NSS

NOT SOLD SEPARAT

PLUNGER - valve

1шт.

4

NSS

NOT SOLD SEPARAT

VALVE - low pressure regeneration

1шт.

5

NSS

NOT SOLD SEPARAT

RING - retaining, valve

1шт.

6

NSS

NOT SOLD SEPARAT

HOUSING - inlet and outlet section

1шт.

7

102210A1

VALVE

ASSEMBLY - relief, with flat screen on poppet, parts list figure 8-46, see your service manual for proper pressure setting

1шт.

120978A1

SECTOR

SECTION ASSEMBLY - inlet and outlet, Includes: Ref. 8 and 9

1шт.

8

NSS

NOT SOLD SEPARAT

HOUSING - inlet and outlet section 120978A1

1шт.

9

102210A1

VALVE

ASSEMBLY - relief, with flat screen on poppet, parts list figure 8-46, see your service manual for proper pressure setting, inlet & outlet section 120978A1

1шт.
