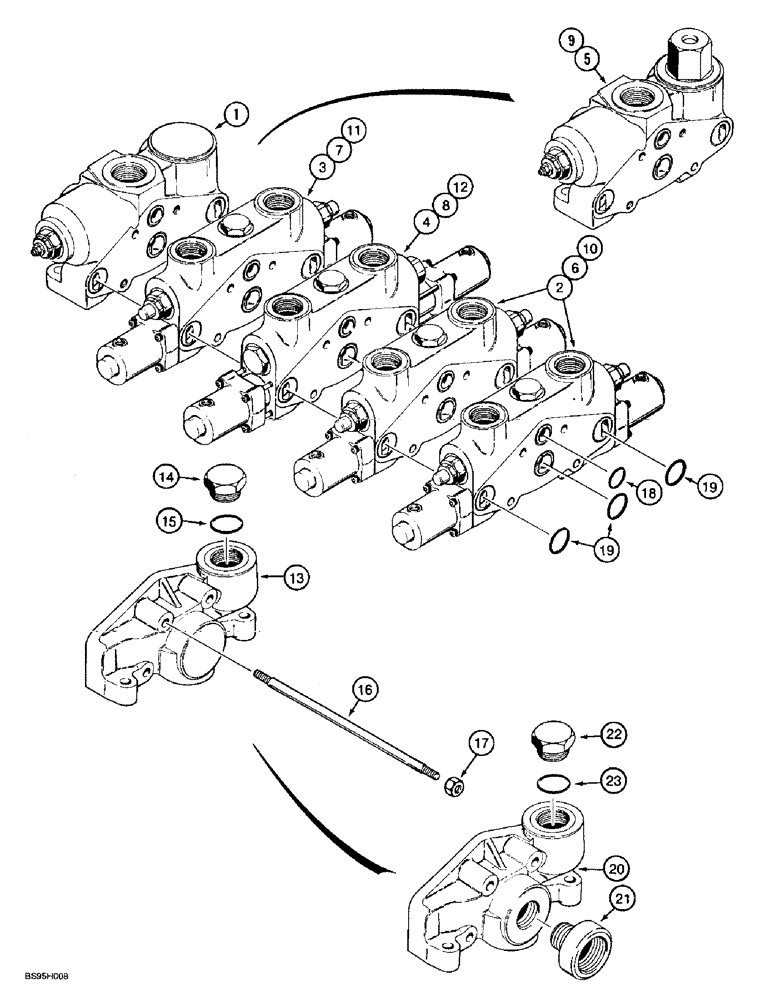

Запчасти Case 721B (8-035A) - LOADER CONTROL VALVE - FOUR SPOOL, XT LOADER, 108611A1 VALVE ASSEMBLY (08) - HYDRAULICS

108611A1

VALVE

ASSEMBLY - control, four spool, V50-465-D stamped on part, no longer available, order 138755A1 valve assembly, 135646A1 tube, 218-5222 tee, and 218-5278 elbow, Includes: Ref. 1 - 4

1шт.

1

120978A1

SECTOR

SECTION ASSEMBLY - inlet and outlet, parts list figure 8-36

1шт.

2

1978280C1

SECTOR

SECTION ASSEMBLY - auxiliary, parts list figure 8-44

2шт.

3

120984A1

SECTOR

SECTION ASSEMBLY - bucket, parts list figure 8-42

1шт.

4

125844A1

SECTOR

SECTION ASSEMBLY - lift, parts list figure 8-39A

1шт.

133732A1

VALVE

ASSEMBLY - control, four spool, V50-519 stamped on part, no longer available, order 138755A1 valve assembly, Includes: Ref. 5 - 8

1шт.

5

1978263C1

VALVE

SECTION ASSEMBLY - inlet and outlet, parts list figure 8-36, 133732A1 valve

1шт.

6

1978280C1

SECTOR

SECTION ASSEMBLY - auxiliary, parts list figure 8-44, 133732A1 valve

2шт.

7

120984A1

SECTOR

SECTION ASSEMBLY - bucket, parts list figure 8-42, 133732A1 valve

1шт.

8

190298A1

HYD VALVE SECTION

SECTION ASSEMBLY - lift, parts list figure 8-39C, 133732A1 valve

1шт.

138755A1

VALVE

ASSEMBLY - control, four spool, V50-519-C stamped on part, Includes: Ref. 9 - 12

1шт.

9

1978263C1

VALVE

SECTION ASSEMBLY - inlet and outlet, parts list figure 8-36, 138755A1 valve

1шт.

10

1978280C1

SECTOR

SECTION ASSEMBLY - auxiliary, parts list figure 8-44, 138755A1 valve

2шт.

11

120984A1

SECTOR

SECTION ASSEMBLY - bucket, parts list figure 8-42, 138755A1 valve

1шт.

12

190298A1

HYD VALVE SECTION

SECTION ASSEMBLY - lift, parts list figure 8-39C, 138755A1 valve

1шт.

13

1978278C1

SECTOR

PLATE - cover, end, parts common to all valve assemblies, Includes: Ref. 14 - 19

1шт.

14

86512512

PLUG,7/8" - 14 ORB

- hex, 7/8-14 inch O-ring boss, Parts common to all valve assemblies

1шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Parts common to all valve assemblies

1шт.

16

189911A1

TRUSS ROD

STUD - parts common to all valve assemblies

4шт.

17

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC, Parts common to all valve assemblies

4шт.

120989A1

SEAL KIT

KIT - seal, between sections, parts common to all valve assemblies, Includes: Ref. 18 and 19

1шт.

18

238-6122

O-RING,0.103" Thk x 1.11" ID, -122, Cl 6, 90 Duro

Parts common to all valve assemblies -122, 90 Duro, 1.112" ID x .103" Thk

5шт.

19

238-6126

O-RING,0.103" Thk x 1.362" ID, -126, Cl 6, 90 Duro

- 1-1/2 ID x 3/32 inch wide (Replaces 238-6128), Parts common to all valve assemblies

15шт.

L36348

KIT

- power beyond, includes instructions, Includes: Ref. 20 - 23

1шт.

20

S301432

COVER

- outlet, power beyond kit

1шт.

21

S301433

SLEEVE

- power beyond kit

1шт.

22

273916

PLUG,Hex, 1-5/16" - 12 ORB

Power beyond kit, Includes Ref. 23 Hex Hd, 1 5/16"-12 ORB

1шт.

23

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk, Power beyond kit

1шт.
