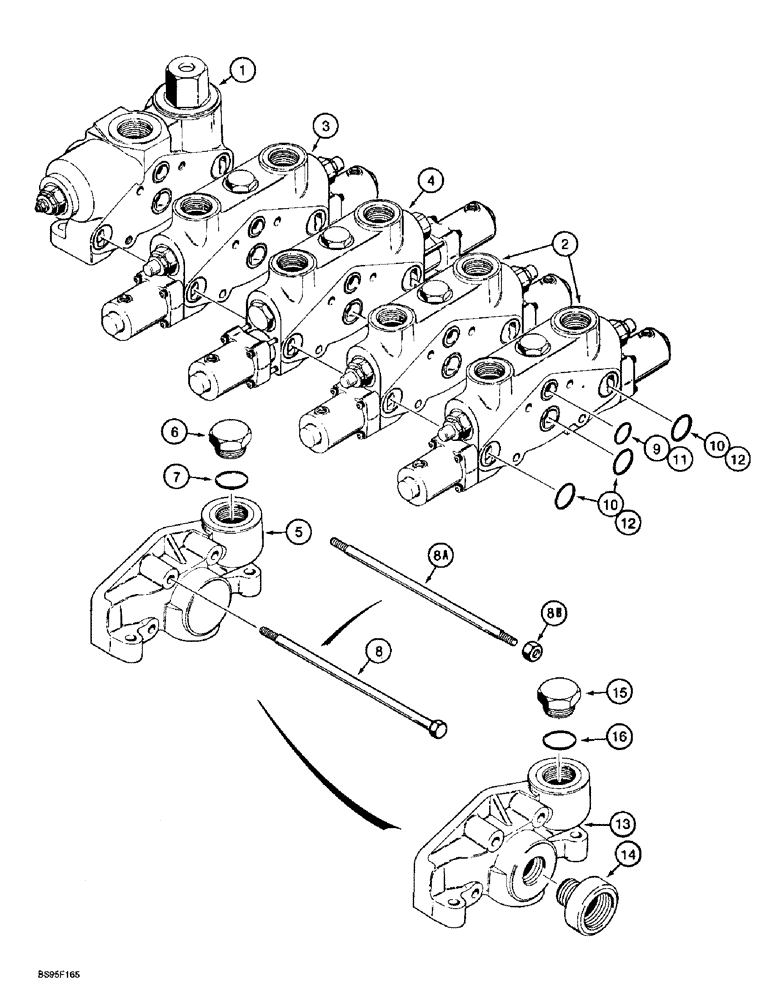

Запчасти Case 721B (8-034) - LOADER CONTROL VALVE - FOUR SPOOL, Z-BAR LOADER, L123736 VALVE ASSEMBLY (08) - HYDRAULICS

L123736

VALVE

ASSEMBLY - control, four spool, Includes: Ref. 1 - 12

1шт.

1

1978263C1

VALVE

SECTION ASSEMBLY - inlet and outlet, parts list figure 8-36

1шт.

2

1978280C1

SECTOR

SECTION ASSEMBLY - auxiliary, parts list figure 8-44

2шт.

3

1978296C1

VALVE

SECTION ASSEMBLY - bucket, parts list figure 8-40

1шт.

4

1978302C1

VALVE

SECTION ASSEMBLY - lift, parts list figure 8-38

1шт.

5

1978278C1

SECTOR

PLATE - cover, end, Includes: Ref. 6 and 7

1шт.

6

86512512

PLUG,7/8" - 14 ORB

- hex, 7/8-14 inch O-ring boss, Replaces D54275

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

8

1978321C1

TRUSS ROD,7/16" - 14 x 11 1/2"

BOLT - hex, special, 7/16 NC x 11-1/5 inch, no longer available, order 189911A1 stud, Ref. 8A and 425-107 nut, Ref. 8B

4шт.

8a

189911A1

TRUSS ROD

STUD - four spool control valve

4шт.

8b

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC

4шт.

1542847C1

SEAL KIT

KIT - seal, no longer available, order 120989A1, Includes: Ref. 9 and 10

5шт.

Consists of 238-6122 (1), 238-6126 (3), 238-5024 (1), and 238-5028 (3). The 238-5024 and 238-5028 have thinner cross section (1/16") than the 238-6122 and 238-6126.

1шт.

9

238-6122

O-RING,0.103" Thk x 1.11" ID, -122, Cl 6, 90 Duro

1шт.

10

238-6126

O-RING,0.103" Thk x 1.362" ID, -126, Cl 6, 90 Duro

- 1-3/8 ID x 3/32 inch wide

3шт.

120989A1

SEAL KIT

KIT - seal, between sections, Includes: Ref. 11 and 12

1шт.

11

238-6122

O-RING,0.103" Thk x 1.11" ID, -122, Cl 6, 90 Duro

5шт.

12

238-6126

O-RING,0.103" Thk x 1.362" ID, -126, Cl 6, 90 Duro

- 1-1/2 ID x 3/32 inch wide (Replaces 238-6128)

15шт.

L36348

KIT

- power beyond, includes instructions, Includes: Ref. 13 - 16

1шт.

13

S301432

COVER

- outlet, power beyond kit

1шт.

14

S301433

SLEEVE

- power beyond kit

1шт.

15

273916

PLUG,Hex, 1-5/16" - 12 ORB

Power beyond kit, Includes Ref. 16 Hex Hd, 1 5/16"-12 ORB

1шт.

16

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk, Power beyond kit

1шт.
