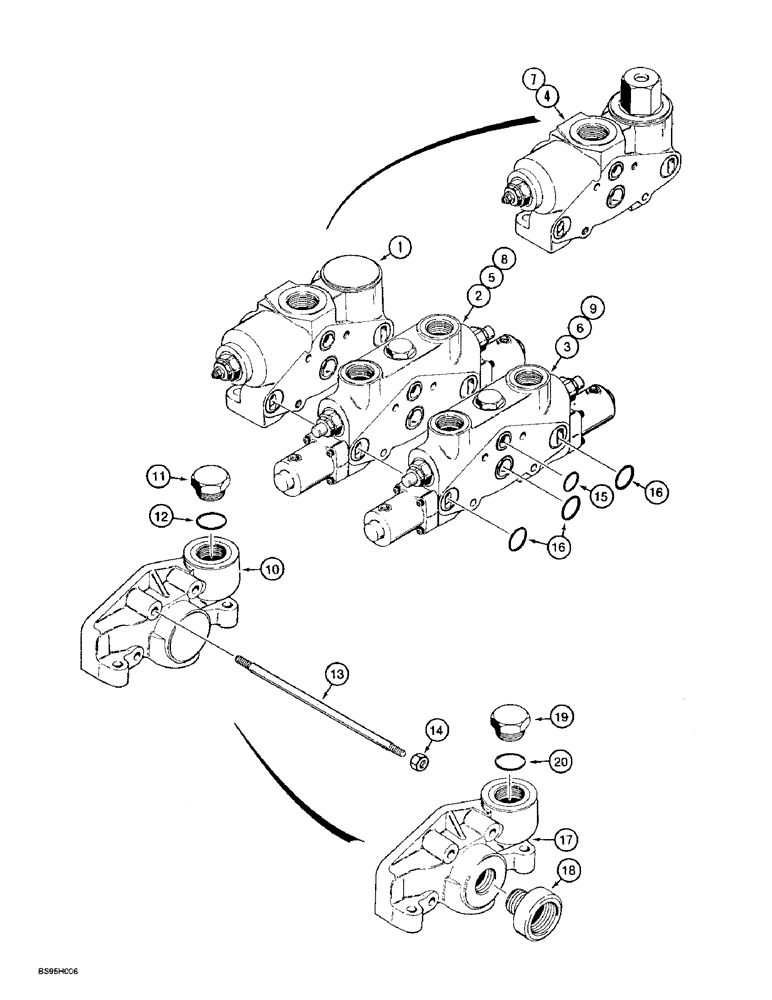

Запчасти Case 721B (8-031A) - LOADER CONTROL VALVE - TWO SPOOL, XT LOADER, 117764A1 VALVE ASSEMBLY (08) - HYDRAULICS

117764A1

VALVE

ASSEMBLY - control, two spool, V50-488-B stamped on part, no longer available, order 138753A1 valve assembly, 135646A1 tube, 218-5222 tee, and 218-5278 elbow, Includes: Ref. 1 - 3

1шт.

1

120978A1

SECTOR

SECTION ASSEMBLY - inlet and outlet, parts list figure 8-36

1шт.

2

120984A1

SECTOR

SECTION ASSEMBLY - bucket, parts list figure 8-42

1шт.

3

125844A1

SECTOR

SECTION ASSEMBLY - lift, parts list figure 8-39A

1шт.

133729A1

VALVE

ASSEMBLY - control, two spool, V50-517 stamped on part, no longer available, order 138753A1 valve assembly, Includes: Ref. 4 - 6

1шт.

4

1978263C1

VALVE

SECTION ASSEMBLY - inlet and outlet, parts list figure 8-36, 133729A1 valve

1шт.

5

120984A1

SECTOR

SECTION ASSEMBLY - bucket, parts list figure 8-42, 133729A1 valve

1шт.

6

190298A1

HYD VALVE SECTION

SECTION ASSEMBLY - lift, parts list figure 8-39C, 133729A1 valve

1шт.

138753A1

VALVE

ASSEMBLY - control, two spool, V50-517-C stamped on part, Includes: Ref. 7 - 9

1шт.

7

1978263C1

VALVE

SECTION ASSEMBLY - inlet and outlet, parts list figure 8-36, 138753A1 valve

1шт.

8

120984A1

SECTOR

SECTION ASSEMBLY - bucket, parts list figure 8-42, 138753A1 valve

1шт.

9

190298A1

HYD VALVE SECTION

SECTION ASSEMBLY - lift, parts list figure 8-39C, 138753A1 valve

1шт.

10

1978278C1

SECTOR

PLATE - cover, end, parts common to all valve assemblies, Includes: Ref. 11 and 12

1шт.

11

86512512

PLUG,7/8" - 14 ORB

- hex, 7/8-14 inch O-ring boss, Replaces D54275 plug, parts common to all valve assemblies

1шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Plate, end cover, parts common to all valve assemblies

1шт.

13

189895A1

STUD

- two spool control valve, parts common to all valve assemblies

4шт.

14

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC, Parts common to all valve assemblies

4шт.

120987A1

SEAL KIT

KIT - seal, parts common to all valve assemblies, Includes: Ref. 15 and 16

1шт.

15

238-6122

O-RING,0.103" Thk x 1.11" ID, -122, Cl 6, 90 Duro

Parts common to all valve assemblies -122, 90 Duro, 1.112" ID x .103" Thk

3шт.

16

238-6126

O-RING,0.103" Thk x 1.362" ID, -126, Cl 6, 90 Duro

- 1-1/2 ID x 3/32 inch wide (Replaces 238-6128), Parts common to all valve assemblies

9шт.

L36348

KIT

- power beyond, includes instructions, Includes: Ref. 17 - 20

1шт.

17

S301432

COVER

- outlet, power beyond kit

1шт.

18

S301433

SLEEVE

- power beyond kit

1шт.

19

273916

PLUG,Hex, 1-5/16" - 12 ORB

Power beyond kit, Includes Ref. 20 Hex Hd, 1 5/16"-12 ORB

1шт.

20

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk, Power beyond kit

1шт.
