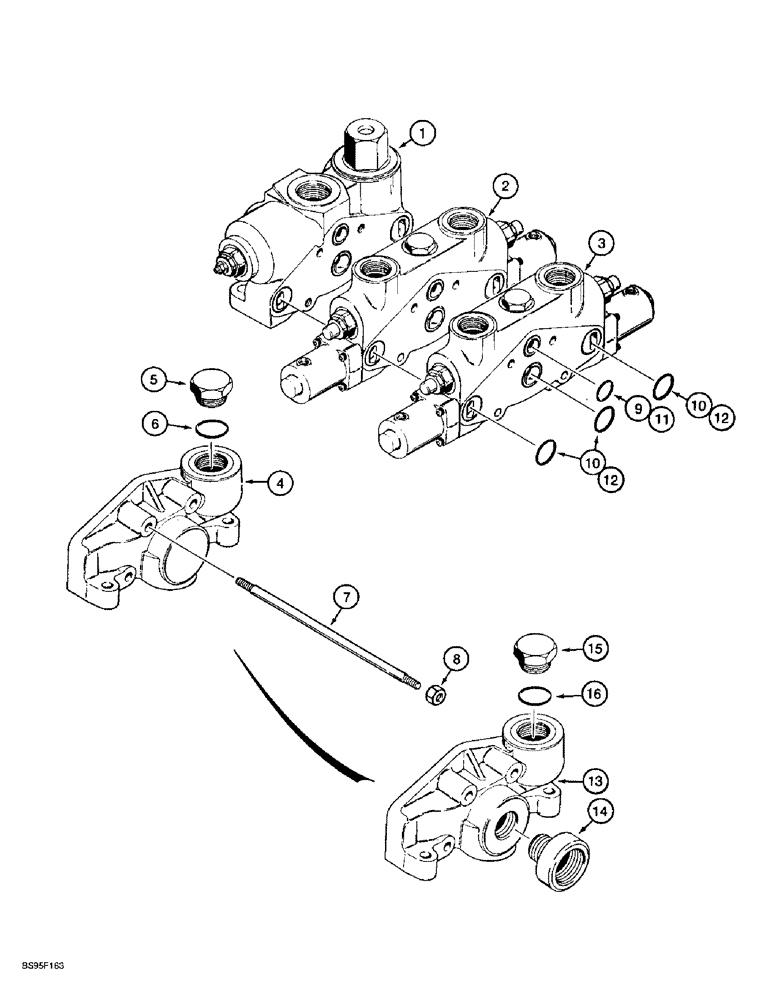

Запчасти Case 721B (8-030) - LOADER CONTROL VALVE - TWO SPOOL, Z-BAR LOADER, L123735 VALVE ASSEMBLY (08) - HYDRAULICS

L123735

VALVE

ASSEMBLY - control, two spool, Includes: Ref. 1 - 12

1шт.

1

1978263C1

VALVE

SECTION ASSEMBLY - inlet and outlet, parts list figure 8-36

1шт.

2

1978296C1

VALVE

SECTION ASSEMBLY - bucket, parts list figure 8-40

1шт.

3

1978302C1

VALVE

SECTION ASSEMBLY - lift, parts list figure 8-38

1шт.

4

1978278C1

SECTOR

PLATE - cover, end, Includes: Ref. 5 and 6

1шт.

5

86512512

PLUG,7/8" - 14 ORB

- hex, 7/8-14 inch O-ring boss, Replaces D54275

1шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Plate, end cover

1шт.

7

189895A1

STUD

- two spool control valve

4шт.

8

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC

4шт.

1542847C1

SEAL KIT

KIT - seal, no longer available, order 120987A1, Includes: Ref. 9 - 12

3шт.

Consists of 238-6122 (1), 238-6126 (3), 238-5024 (1), and 238-5028 (3). The 238-5024 and 238-5028 have thinner cross section (1/16") than the 238-6122 and 238-6126.

1шт.

9

238-6122

O-RING,0.103" Thk x 1.11" ID, -122, Cl 6, 90 Duro

1шт.

10

238-6126

O-RING,0.103" Thk x 1.362" ID, -126, Cl 6, 90 Duro

- 1-3/8 ID x 3/32 inch wide

3шт.

120987A1

SEAL KIT

KIT - seal, between sections

1шт.

11

238-6122

O-RING,0.103" Thk x 1.11" ID, -122, Cl 6, 90 Duro

- 1 1/8 ID x 1/16 inch wide (Replaces 238-5024)

3шт.

12

238-6126

O-RING,0.103" Thk x 1.362" ID, -126, Cl 6, 90 Duro

- 1-3/8 x 1/16 inch wide (Replaces 238-5028)

9шт.

L36348

KIT

- power beyond, includes instructions, Includes: Ref. 13 - 16

1шт.

13

S301432

COVER

- outlet, power beyond kit

1шт.

14

S301433

SLEEVE

- power beyond kit

1шт.

15

273916

PLUG,Hex, 1-5/16" - 12 ORB

Power beyond kit Hex Hd, 1 5/16"-12 ORB

1шт.

16

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk, Power beyond kit

1шт.
