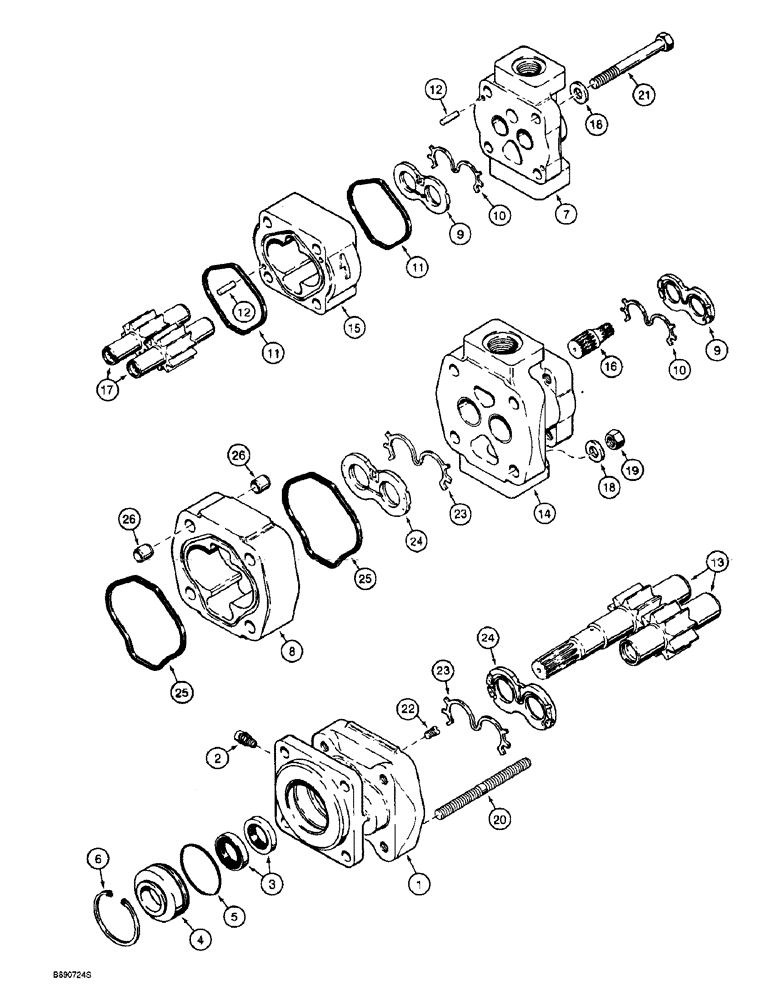

Запчасти Case 721B (8-028) - EQUIPMENT AND STEERING PUMP - L127270 (08) - HYDRAULICS

L127270

PUMP, HYDRAULIC

PUMP ASSEMBLY - hydraulic equipment and steering, Includes: Ref. 1 - 27

1шт.

L127270R

REMAN-HYD PUMP

721B (3/93-12/98)

1шт.

L127270C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

S300592

COVER

- shaft end, includes bushings

1шт.

2

1978259C1

VALVE POPPET

VENT - air

1шт.

3

S300419

SEAL,34.92mm ID x 54.08mm OD x 7.92mm Thk

SEAL - lip, shaft

2шт.

4

1978254C1

SEAL RETAINER

RETAINER - seal

1шт.

5

S300727

O-RING,0.103" Thk x 2.862" ID, -150, Cl 5, 75 Duro

- special, replaces S300420

1шт.

6

100-21315

SNAP RING,3.156", Int, #315

Ring, Snap, 3.156", Int, #315

1шт.

7

S300594

COVER

- port end, includes bushing

1шт.

8

1340773C1

BODY

HOUSING - gear, shaft end

1шт.

9

N13582

THRUST PLATE

PLATE, THRUST, Port end gear housing

2шт.

10

N13583

SEAL

- gear housing, formed, port end

2шт.

11

L32100

SEAL,Square, 3.17mm Thk x 101.6mm ID, 70 Duro

- gear housing, port end

2шт.

12

W16323

DOWEL

PIN - dowel, gear housing, port end

4шт.

13

1340775C1

GEAR

- set, shaft end

1шт.

14

S300593

BODY

CARRIER - bearing, includes bushings

1шт.

15

1340774C1

HOUSING

- gear, port end

1шт.

16

1340777C1

SHAFT

- connecting

1шт.

17

S300726

GEAR-SET

GEAR - set, port end, replaces 1340776C1

1шт.

18

19-488

WASHER

- flat, replaces 524443R1

8шт.

19

429-1010

NUT,5/8"-11, G8

4шт.

20

1978260C1

STUD

- pump

4шт.

21

426-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 8

- hex, 5/8 NC x 5 inch, grade 8

4шт.

22

L32320

PLUG

- slotted, 7/16 inch NF

1шт.

23

1978256C1

SEAL

- groved, shaft end

2шт.

24

194255A1

BACK-UP RING

PLATE - thrust, bronze, shaft end gear housing, replaces 1978255C1

2шт.

25

1978257C1

SEALING RING

SEAL - square section, shaft end

2шт.

26

1978258C1

CENTERING RING

BUSHING - alignment, gear housing, shaft end

8шт.

27

S300421

RESTRICTOR

REDUCER - special, cover to air vent, not shown

1шт.
