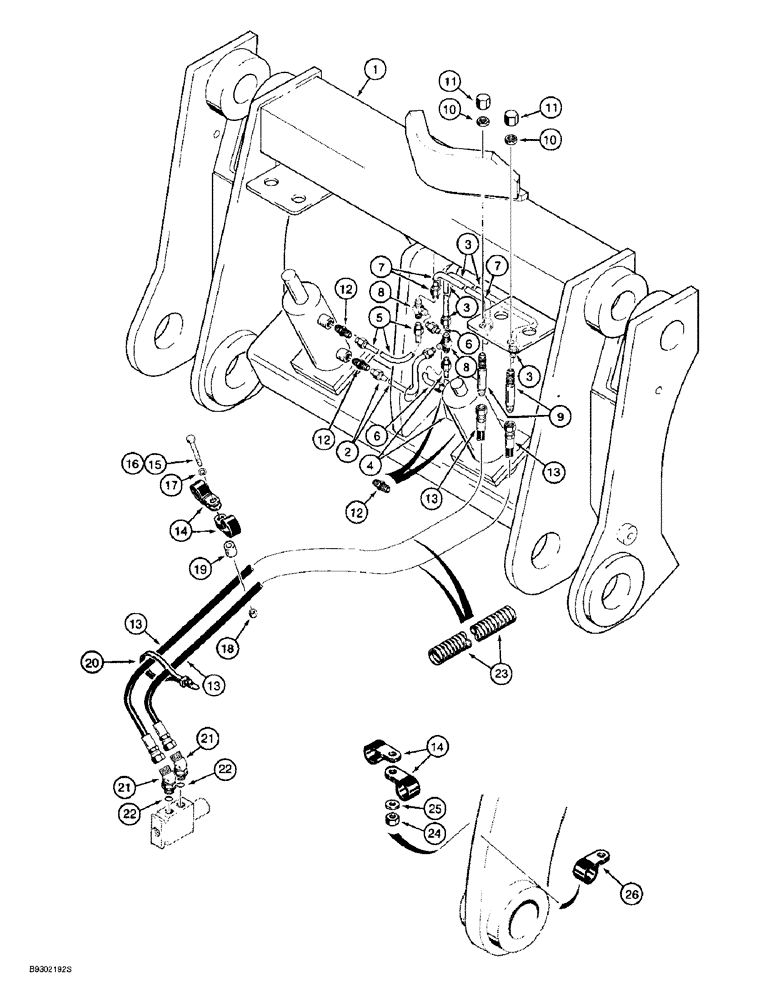

Запчасти Case 721B (8-026) - HYDRAULIC CIRCUIT, SOLENOID VALVE TO MALE MASTER COUPLER, XT LOADER (08) - HYDRAULICS

1

114513A1

COUPLING

COUPLER ASSEMBLY - male master, no longer available

1шт.

Part is available from the supplier through your local dealer. See figure 9-14 for pins to attach male master coupler to lift arm.

1шт.

2

118173A1

TUBE,9.52 mm OD, 162, 99 mm Length

- unlock, left-hand, l

1шт.

3

118176A1

TUBE

- unlock, supply

1шт.

4

118178A1

TUBE,9.52 mm OD, 119, 27 mm Length

- unlock, right-hand

1шт.

5

118180A1

TUBE

- lock, left-hand

1шт.

6

118182A1

TUBE

- lock, right-hand

1шт.

7

118184A1

TUBE,9.52 mm OD, 219, 83 mm Length

- lock, supply

1шт.

8

218-593

TEE,9/16"-18, 37 Degree

- 9/16-18 inch flare branch x flare x flare

2шт.

9

218-1240

FITTING

TEE - 9/16-18 inch flare branch x flare x bulkhead flare

2шт.

10

218-1254

LOCK NUT,Blkhd, 9/16"-18

NUT - hex, lock, bulkhead, 9/16 inch NF

2шт.

11

218-754

CAP,37 Degree, 9/16"-18

- hex, 9/16-18 inch

2шт.

12

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

ADAPTER - straight, 9/16-18 flare x 1/4 inch PT

4шт.

13

115783A1

HOSE ASSY.

HOSE - 4900 mm (193 inch) long, coupler to solenoid valve

2шт.

14

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type 3/4", Insul, 3/8" Bolt

6шт.

15

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

3 and 4 spool valve models Hex, 3/8"-16 x 2 3/4", G5

2шт.

16

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

2 Spool valve models Hex, 3/8"-16 x 1 1/4", G8, Full Thd

2шт.

17

492-11038

LOCK WASHER,3/8"

2шт.

18

425-106

NUT,3/8"-16, Cl 5

2шт.

19

D146035

SPACER,10.31mm ID x 16mm OD x 15.5mm L

- clamp

2шт.

20

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

21

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 45 degree, 9/16-18 inch flare x adj., O-ring boss, Includes: Ref. 22

2шт.

23

118979A1

COVER

GUARD - spiral, hose

1шт.

24

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC

1шт.

25

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

26

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type, Mounting hardware shown on figure 8-24, Ref. 8 - 11 3/4", Insul, 3/8" Bolt

2шт.

If looking for a breakdown on the cylinder or pins see figure 8-58 for detail.

1шт.

22

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
