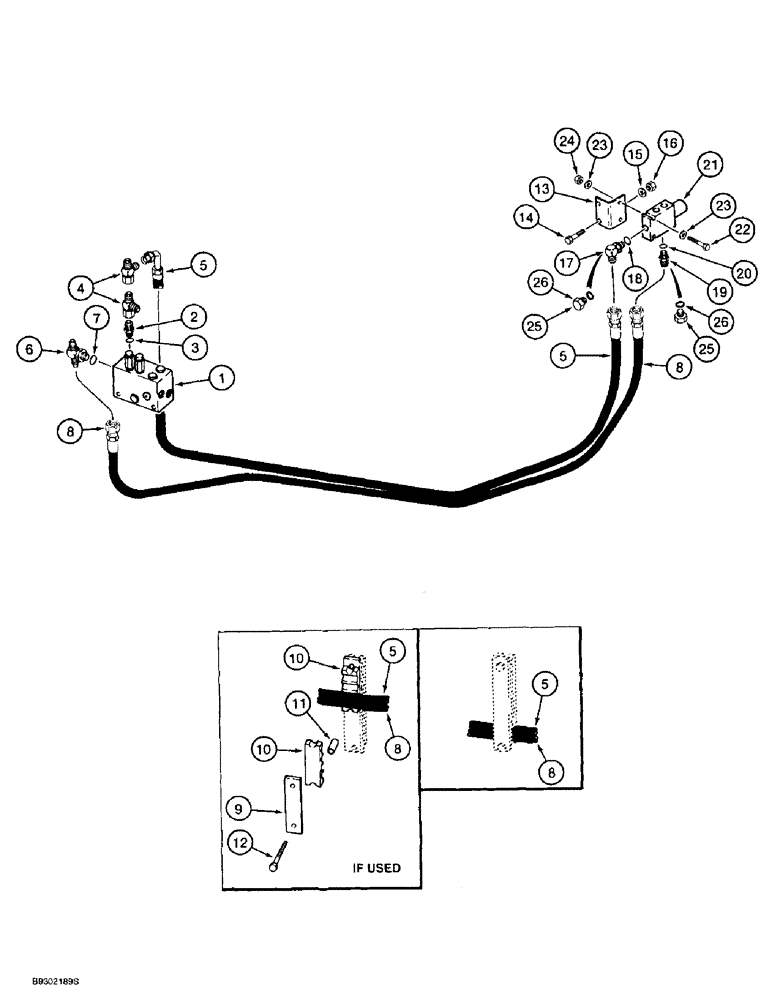

Запчасти Case 721B (8-024) - HYDRAULIC CIRCUIT, COUPLER LOCKING, XT LOADER (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - sequence, pressure reducing, see Ref. 15, figure 8-78

1шт.

2

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss, Incl. Ref. 3

1шт.

4

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

- swivel, 9/16-18 inch flare branch x flare x swivel

2шт.

5

115782A1

HOSE ASSY.

HOSE - 1605 mm (63-3/16 inch) long, pressure reducing valve to coupler locking solenoid valve

1шт.

6

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 9/16-18 inch adj., O-ring branch x flare x flare, Includes: Ref. 7

1шт.

8

115781A1

HOSE ASSY.

HOSE - 1745 mm (68-3/4 inch) long, coupler locking solenoid valve to pressure reducing valve

1шт.

9

L124270

LARGE PLATE

PLATE - mounting, hose clamp, if used

2шт.

10

L124271

FIXING BRACKET

CLAMP - rubber, hose retaining, if used

4шт.

11

L126936

SPACER

- 34 mm long, if used

4шт.

12

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

If used Hex, 3/8"-16 x 2 3/4", G5

4шт.

13

115784A1

BRACKET

- valve mounting

1шт.

14

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

2шт.

15

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

16

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC

2шт.

17

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x adj., O-ring boss, Includes: Ref. 18

1шт.

19

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss, Incl. Ref. 20

1шт.

21

118857A1

VALVE

ASSEMBLY - solenoid, coupler locking, parts list figure 8-60

1шт.

22

426-432

BOLT,Hex, 1/4" - 20 x 2", Gr 8

- hex, 1/4 NC x 2 inch, grade 8

2шт.

23

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

4шт.

24

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

2шт.

25

76349

PLUG,9/16" - 18 ORB

Incl. Ref. 26 Hex Hd, 9/16"-18 ORB

2шт.

Used on models without coupler to plug work ports on Ref. 21, coupler locking solenoid valve.

1шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

7

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

18

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

20

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

26

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
