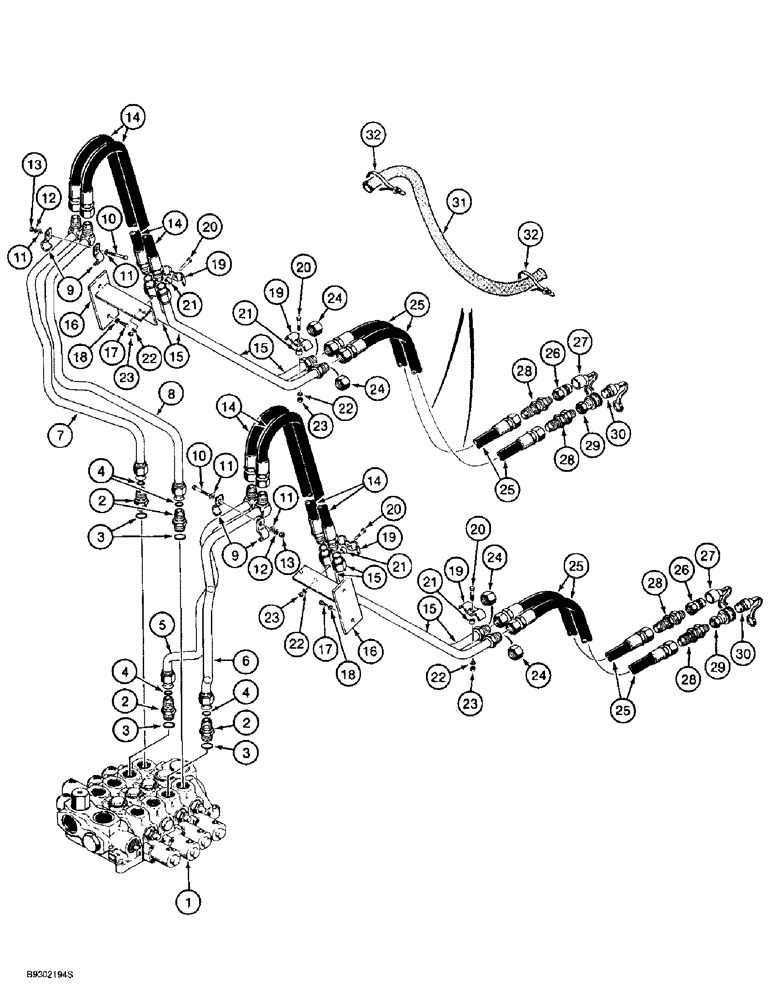

Запчасти Case 721B (8-022) - HYDRAULIC CIRCUIT, FOUR SPOOL VALVE TO AUX. BUCKET COUPLING, XT LOADER (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - loader control, see figure 8-6 for correct assembly

1шт.

2

L124291

FITTING

ADAPTER - straight, special, valve to tubes, Includes: Ref. 3 and 4

4шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk, Boss end

1шт.

4

238-6020

O-RING,0.07" Thk x 0.864" ID, -20, Cl 6, 90 Duro

Flare end -020, 90 Duro, .864" ID x .070" Thk

1шт.

5

L126182

TUBE,25.4 mm OD

- left-hand, third spool to right-hand hoses

1шт.

6

L126180

TUBE,25.4 mm OD x 802, 248 mm L

- right-hand, third spool to right-hand hoses

1шт.

7

118741A1

TUBE,25.4 mm OD, 752, 369 mm Length

- left-hand, fourth spool to left-hand hoses

1шт.

8

118743A1

TUBE

- right-hand, fourth spool to left-hand hoses

1шт.

9

L32065

CLAMP

- tube

4шт.

10

426-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 8

- hex, 3/8 NC x 2-1/2 inch, grade 8

2шт.

11

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

- flat, 13/32 x 1-1/16 x 3/32 inch, hardened

4шт.

12

492-11038

LOCK WASHER,3/8"

2шт.

13

425-106

NUT,3/8"-16, Cl 5

2шт.

14

L126184

HOSE,19.1mm ID x 1100mm L, SAE 100R12

- 1100 mm (43-5/16 inch) long

4шт.

15

114371A1

TUBE,25.4 mm OD, 683, 422 mm Length

- auxiliary, at loader arms

4шт.

16

L126511

SUPPORT

BRACKET - mounting, tubes

2шт.

17

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

4шт.

18

492-11038

LOCK WASHER,3/8"

4шт.

19

R15257

CLAMP

- tube

4шт.

20

426-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

- hex, 3/8 NC x 1-3/4 inch, grade 8

4шт.

21

D146035

SPACER,10.31mm ID x 16mm OD x 15.5mm L

- tube

4шт.

22

492-11038

LOCK WASHER,3/8"

4шт.

23

425-106

NUT,3/8"-16, Cl 5

4шт.

24

218-335

CAP,37 Degree, 1 1/16"-12

- hex, 1-1/16-12 inch, used on models without auxiliary bucket

4шт.

25

114374A1

HOSE ASSY.

HOSE - 1650 mm (65 inch) long, auxiliary

4шт.

26

114531A1

COUPLING

- quick disconnect

2шт.

27

114533A1

DUST CAP

CAP - dust

2шт.

28

31-2090

ADAPTER

- special

4шт.

29

114532A1

COUPLING

- quick disconnect, right-hand

2шт.

30

114534A1

PLUG

- dust

2шт.

31

S120577

COVER

GUARD - hose

2шт.

32

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.
