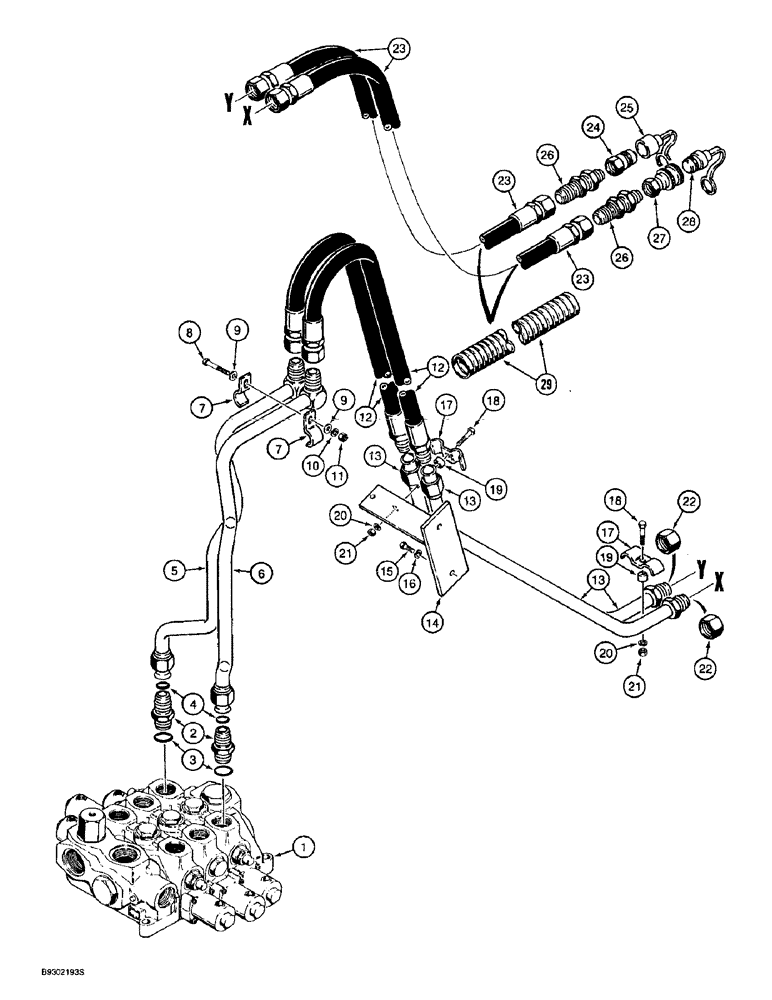

Запчасти Case 721B (8-020) - HYDRAULIC CIRCUIT, THREE SPOOL VALVE TO AUXILIARY BUCKET COUPLING ,XT LOADER (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
VALVE ASSEMBLY - loader control, see figure 8-6 for correct assembly
1шт.
2
L124291
FITTING
ADAPTER - straight, special, valve to tubes, Includes: Ref. 3 and 4
4шт.
3
O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro
16-1, 90 Duro, 1.171" ID x .118" Thk, Boss end
1шт.
4
238-6020
O-RING,0.07" Thk x 0.864" ID, -20, Cl 6, 90 Duro
Flare end -020, 90 Duro, .864" ID x .070" Thk
1шт.
5
L126182
TUBE,25.4 mm OD
- left-hand, at loader control valve
1шт.
6
L126180
TUBE,25.4 mm OD x 802, 248 mm L
- right-hand, at loader control valve
1шт.
7
L32065
CLAMP
- tube
2шт.
8
426-640
BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 8
- hex, 3/8 NC x 2-1/2 inch, grade 8
1шт.
9
496-81003
WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk
- flat, 13/32 x 1-1/16 x 3/32 inch, hardened
2шт.
10
492-11038
LOCK WASHER,3/8"
1шт.
11
425-106
NUT,3/8"-16, Cl 5
1шт.
12
L126184
HOSE,19.1mm ID x 1100mm L, SAE 100R12
- 1100 mm (43-5/16 inch) long
2шт.
13
114371A1
TUBE,25.4 mm OD, 683, 422 mm Length
- auxiliary, at loader arms
2шт.
14
L126511
SUPPORT
BRACKET - mounting, tubes
1шт.
15
426-616
BOLT,Hex, 3/8" - 16 x 1", Gr 8
2шт.
16
492-11038
LOCK WASHER,3/8"
2шт.
17
R15257
CLAMP
- tube
2шт.
18
426-628
BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8
- hex, 3/8 NC x 1-3/4 inch, grade 8
2шт.
19
D146035
SPACER,10.31mm ID x 16mm OD x 15.5mm L
- tube
2шт.
20
492-11038
LOCK WASHER,3/8"
2шт.
21
425-106
NUT,3/8"-16, Cl 5
2шт.
22
218-335
CAP,37 Degree, 1 1/16"-12
- hex, 1-1/16-12 inch, used on models without auxiliary bucket
2шт.
23
114374A1
HOSE ASSY.
HOSE - 1650 mm (65 inch) long, auxiliary
2шт.
24
114531A1
COUPLING
- quick disconnect
1шт.
25
114533A1
DUST CAP
CAP - dust
1шт.
26
31-2090
ADAPTER
- special
2шт.
27
114532A1
COUPLING
- quick disconnect, right-hand
1шт.
28
114534A1
PLUG
- dust
1шт.
29
118979A1
COVER
GUARD - spiral, hose
1шт.
Выбрано товаров: 29
