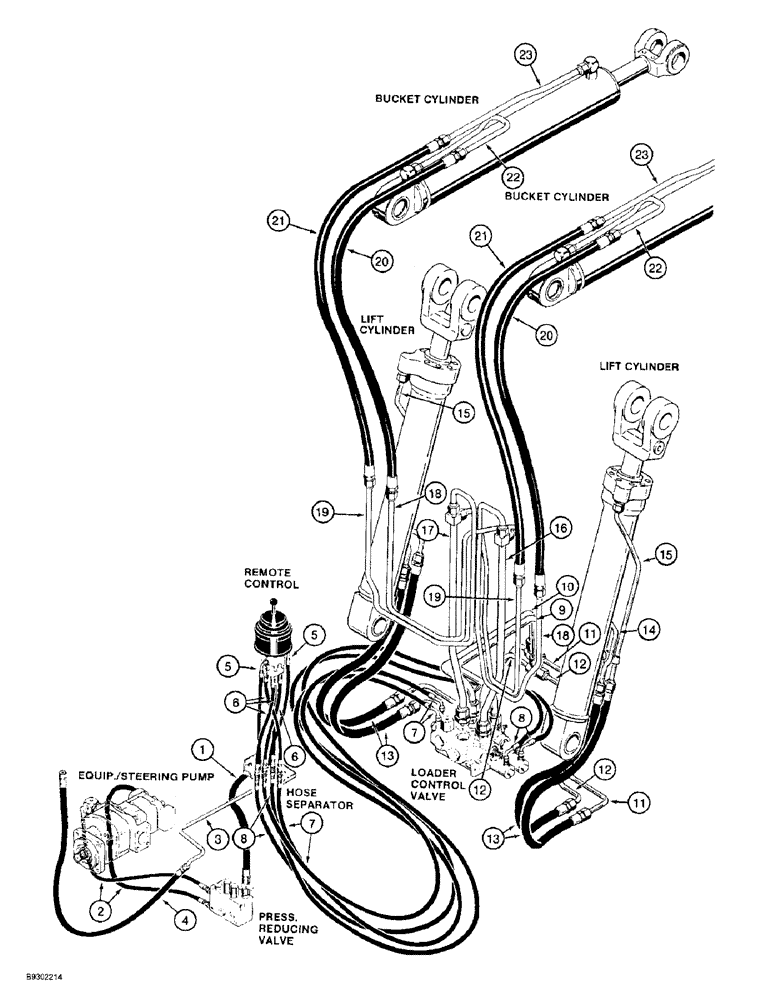

Запчасти Case 721B (1-26) - PICTORIAL INDEX, LOADER HYDRAULIC CIRCUIT - XT LOADER, TWO SPOOL CONTROL VALVE (00) - PICTORIAL INDEX

1

Hose, hose separator to pressure 8-79

1шт.

reducing valve

1шт.

2

Hose, pressure reducing, Serial Range: valve-8-79

1шт.

elbow at steering pump

1шт.

3

Tube, hose separator to hose at 8-79

1шт.

hydraulic reservoir

1шт.

4

Hose, tube to hydraulic reservoir 8-79

1шт.

5

Hose, remote control to hose 8-63, 8-65

1шт.

separator, hydraulic reservoir and

1шт.

pressure reducing valve ports

1шт.

6

Hose, hose separator to remote 8-63, 8-65

1шт.

control

1шт.

7

Hose, hose separator to ports 1B 8-67

1шт.

and 2A

1шт.

8

Hose, hose separator to ports 1A 8-67

1шт.

and 2B

1шт.

9

Tube, right-hand, at valve to lift 8-11

1шт.

cylinders

1шт.

10

Tube, left-hand, at valve to lift 8-11

1шт.

cylinders

1шт.

11

Tube, tube to lift cylinder, rod 8-11

1шт.

end

1шт.

12

Tube, tube to lift cylinder, closed 8-11

1шт.

end

1шт.

13

Hose, at cylinders 8-11

1шт.

14

Tube, lift cylinder, closed end 8-11

1шт.

15

Tube, lift cylinder, rod end 8-11

1шт.

16

Tube, right-hand, at valve to 8-15, 8-15B

1шт.

bucket cylinders

1шт.

17

Tube, left-hand, at valve to bucket 8-15, 8-15B

1шт.

cylinders

1шт.

18

Tube, tube to bucket cylinder, 8-15, 8-15B

1шт.

closed end

1шт.

19

Tube, tube to bucket cylinder, rod 8-15, 8-15B

1шт.

end

1шт.

20

Hose, to bucket cylinder, closed 8-15, 8-15B

1шт.

end

1шт.

21

Hose, to bucket cylinder, rod end 8-15, 8-15B

1шт.

22

Tube, at bucket cylinder, closed 8-15, 8-15B

1шт.

end

1шт.

23

Tube, at bucket cylinder, rod end 8-15, 8-15B

1шт.
