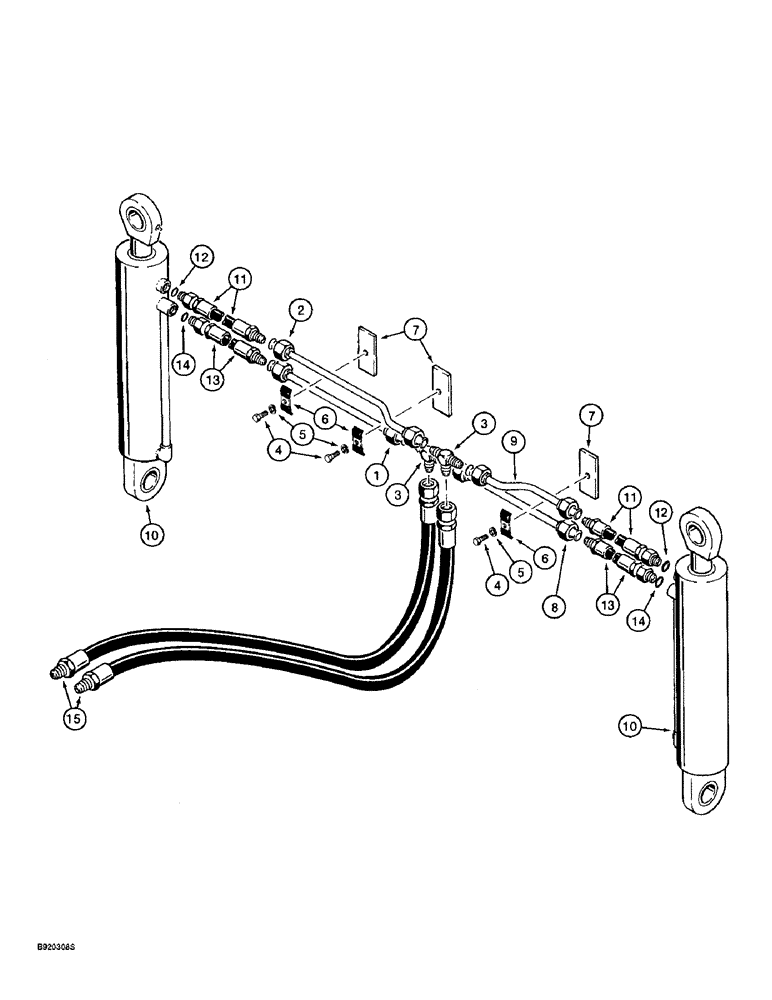

Запчасти Case 721B (8-018) - HYDRAULIC CIRCUIT, AUXILIARY CYLINDERS TO CLAM BUCKET (08) - HYDRAULICS

1

S300151

PIPE

TUBE - auxiliary cylinder hydraulics, lower left-hand

1шт.

2

S301638

TUBE ASSY.

TUBE - auxiliary cylinder hydraulics, upper left-hand

1шт.

3

218-596

TEE,1 1/16"-12 37 Degree

- 1-1/16-12 inch flare branch x flare x flare

2шт.

4

426-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

- hex, 1/2 NC x 1-1/4 inch, grade 8

3шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.

6

S300148

FIXING BRACKET

CLAMP - tube

3шт.

7

S300779

SUPPORT

BLOCK - tapped, clamp support

3шт.

8

S301641

TUBE ASSY.

TUBE - auxiliary cylinder hydraulics, lower right-hand

1шт.

9

S301637

TUBE ASSY.

TUBE - auxiliary cylinder hydraulics, upper right-hand

1шт.

10

S301431

CYLINDER ASSY.,Double Acting, 50.8mm Rod, 254mm Stroke

CYLINDER ASSEMBLY - 102 (4) ID x 254 mm (10 inch) stroke, ports are parallel to bushing in tube, parts list figure 8-56

2шт.

11

108816A1

HOSE ASSY.

HOSE - upper auxiliary cylinder, Includes: Ref. 12

2шт.

12

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

13

108815A1

HOSE ASSY.

HOSE - lower auxiliary cylinder, Includes: Ref. 14

2шт.

14

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

15

S300149

HYDRAULIC HOSE

HOSE - auxiliary cylinder tee to tubes at loader arm cross tube

2шт.
