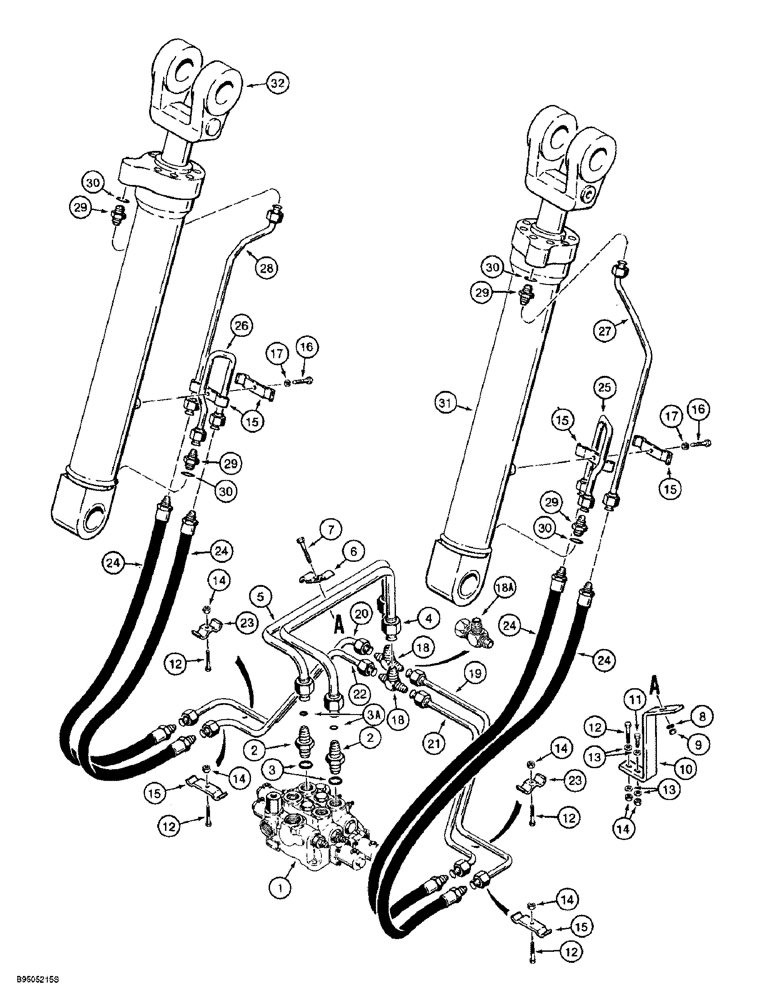

Запчасти Case 721B (8-010) - HYDRAULIC CIRCUIT, LOADER LIFT, Z-BAR AND XT LOADERS (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - control, loader, see figure 8-6 for correct assembly

1шт.

2

L124291

FITTING

ADAPTER - straight, special, valve to lift tubes, Includes: Ref. 3 and 3A

2шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk, Boss end

1шт.

3a

238-6020

O-RING,0.07" Thk x 0.864" ID, -20, Cl 6, 90 Duro

Flare end -020, 90 Duro, .864" ID x .070" Thk

1шт.

4

L118618

PIPE,25.4 mm OD

TUBE - supply, right-hand, valve

1шт.

5

L118616

PIPE

TUBE - supply, left-hand, valve

1шт.

6

L124257

CLAMP

- tubes

1шт.

7

426-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 8

- hex, 3/8 NC x 2-1/4 inch, grade 83/8 x 2-1/4; 8

1шт.

8

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

1шт.

9

231-1406

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

1шт.

10

L119010

SUPPORT

- tube

1шт.

11

426-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

- hex, 3/8 NC x 1-1/2 inch, grade 8

1шт.

12

426-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

- hex, 3/8 NC x 1-3/4 inch, grade 8

5шт.

13

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

- flat, 13/32 x 1-1/16 x 3/32 inch, hardened

4шт.

14

231-1406

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

6шт.

15

L119234

CLAMP

CLAMP - tube

6шт.

16

426-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

- hex, 3/8 NC x 1-1/2 inch, grade 8

2шт.

17

492-11038

LOCK WASHER,3/8"

2шт.

18

218-606

TEE,37 Degree, 1 1/16"-12 x 1 5/16"-12, Br

- 1-5/16-12 flare branch x 1-1/16-12 inch flare x flare

2шт.

Used on models without ride control

1шт.

18a

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

Used on models with ride control 37º, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

2шт.

See figures 8-94 - 8-98 for the ride control hydraulic circuit.

1шт.

19

L118620

PIPE,19.04 mm OD

TUBE - lift cylinder, right-hand rod end

1шт.

Used on models without ride control

1шт.

19

132798A1

TUBE

- lift cylinder, right-hand rod end, used on models with ride control

1шт.

See figures 8-94 - 8-98 for the ride control hydraulic circuit.

1шт.

20

L118622

PIPE,19.04 mm OD x 431, 407 mm L

TUBE - lift cylinder, left-hand rod end

1шт.

21

L118624

PIPE,19.04 mm OD

TUBE - lift cylinder, right-hand closed end

1шт.

Used on models without ride control

1шт.

21

132796A1

TUBE

- lift cylinder, right-hand closed end, not shown, used on models with ride control

1шт.

See figures 8-94 - 8-98 for the ride control hydraulic circuit.

1шт.

22

L118626

PIPE,19.04 mm OD

TUBE - lift cylinder, left-hand closed end

1шт.

23

R15257

CLAMP

- tubes

2шт.

24

L124240

HOSE,19.1mm ID x 1100mm L, SAE 100R12

- 1100 ,, (43-3/8 inch) long, Serial Range: tube-tube

4шт.

25

L118686

PIPE,19.04 mm OD

TUBE - right-hand, cylinder closed end

1шт.

26

L118684

PIPE,19.04 mm OD

TUBE - left-hand, cylinder closed end

1шт.

27

L118682

PIPE,19.04 mm OD

TUBE - right-hand, cylinder rod end

1шт.

27

280905A1

TUBE,805, 187 mm Length

- right-hand, cylinder rod end, not shown, replaces 241520A1

1шт.

28

L118680

PIPE,19.04 mm OD

TUBE - left-hand, cylinder rod end

1шт.

28

280904A1

TUBE,805, 187 mm Length

- left-hand, cylinder rod end, not shown, replaces 242076A1

1шт.

29

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 inch flare x O-ring boss, Incl. Ref. 30

4шт.

30

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

31

1343596C1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 127 (5) ID x 834 mm (32-13/16 inch) stroke, right-hand, parts list figure 8-50, no longer available, order 280706A1 cylinder and 280905A1

1шт.

If you are replacing either 1343596C1 or 1343595C1 cylinders with 280706A1 or 280707A1, you must replace both cylinders. The old and new cylinders can not be mixed.

1шт.

32

1343595C1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 127 (5) ID x 834 mm (32-13/16 inch) stroke, left-hand, parts list figure 8-50, no longer available, order 280707A1 cylinder and 280904A1 tube

1шт.

If you are replacing either 1343596C1 or 1343595C1 cylinders with 280706A1 or 280707A1, you must replace both cylinders. The old and new cylinders can not be mixed.

1шт.

33

280706A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 127 (5) ID x 834 mm (32-13/16 inch) stroke, right-hand, parts list figure 8-51A, not shown

1шт.

If you are replacing either 1343596C1 or 1343595C1 cylinders with 280706A1 or 280707A1, you must replace both cylinders. The old and new cylinders can not be mixed.

1шт.

34

280707A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 127 (5) ID x 834 mm (32-13/16 inch) stroke, left-hand, parts list figure 8-51A, not shown

2шт.

If you are replacing either 1343596C1 or 1343595C1 cylinders with 280706A1 or 280707A1, you must replace both cylinders. The old and new cylinders can not be mixed.

1шт.
