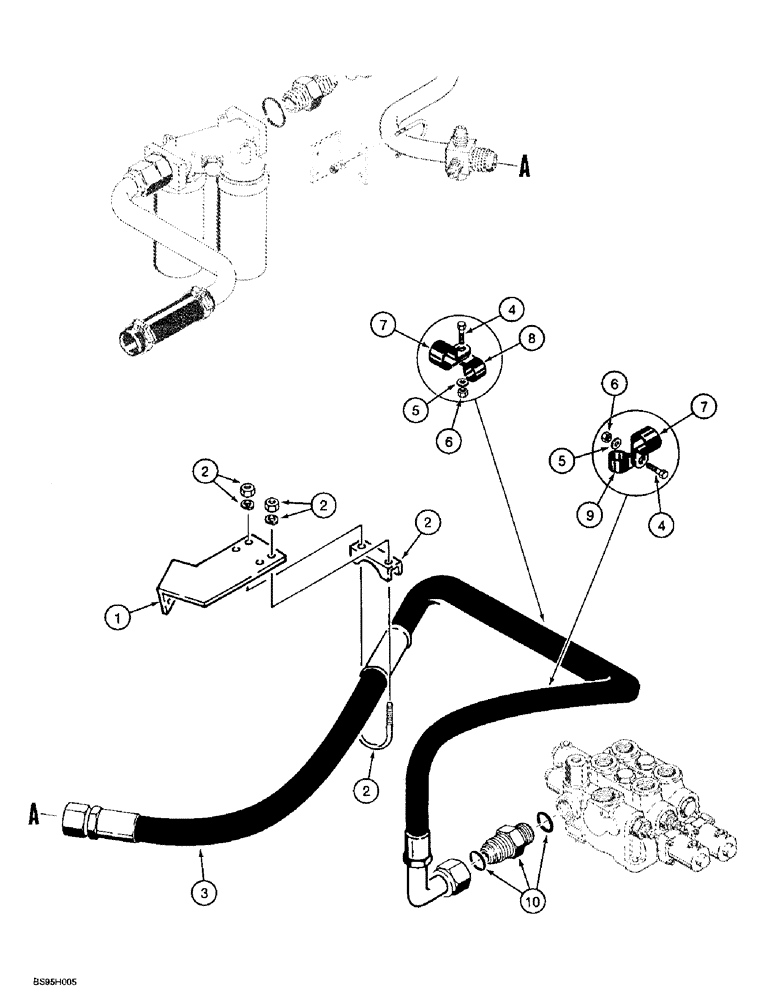

Запчасти Case 721B (8-007E) - HYDRAULIC CIRCUIT, NOISE REDUCTION KIT, Z-BAR OR XT LOADER (08) - HYDRAULICS

134653A1

SET

KIT - hydraulic noise reduction, includes instructions, Includes: Ref. 1 - 10

1шт.

1

108207A1

SUPPORT

BRACKET - mounting, hose

1шт.

2

L73301

CLAMP,51mm ID

ASSEMBLY - includes hardware

2шт.

3

108948A1

HOSE,31.75mm ID x 2510mm L, SAE 100R3

- 2510 mm (99 inch) long

1шт.

4

426-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 8

- hex, 3/8 NC x 1-1/8 inch, grade 8

2шт.

5

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

6

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC

2шт.

7

515-25444

CLAMP,1 3/4", Insul, 7/16" Bolt

- P-type, 1-3/4 inch ID, replaces S98801

2шт.

8

515-25254

CLAMP,1", Insul, 1/2" Bolt

P-type, Replaces 49891 1", Insul, 1/2" Bolt

1шт.

9

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

P-type, Replaces D41564 clamp 1 1/4", Insul, 3/8" Bolt

1шт.

10

L124289

CONNECTOR, ELEC

ADAPTER - straight, special, includes O-rings, Serial Range: hose-valve

1шт.
