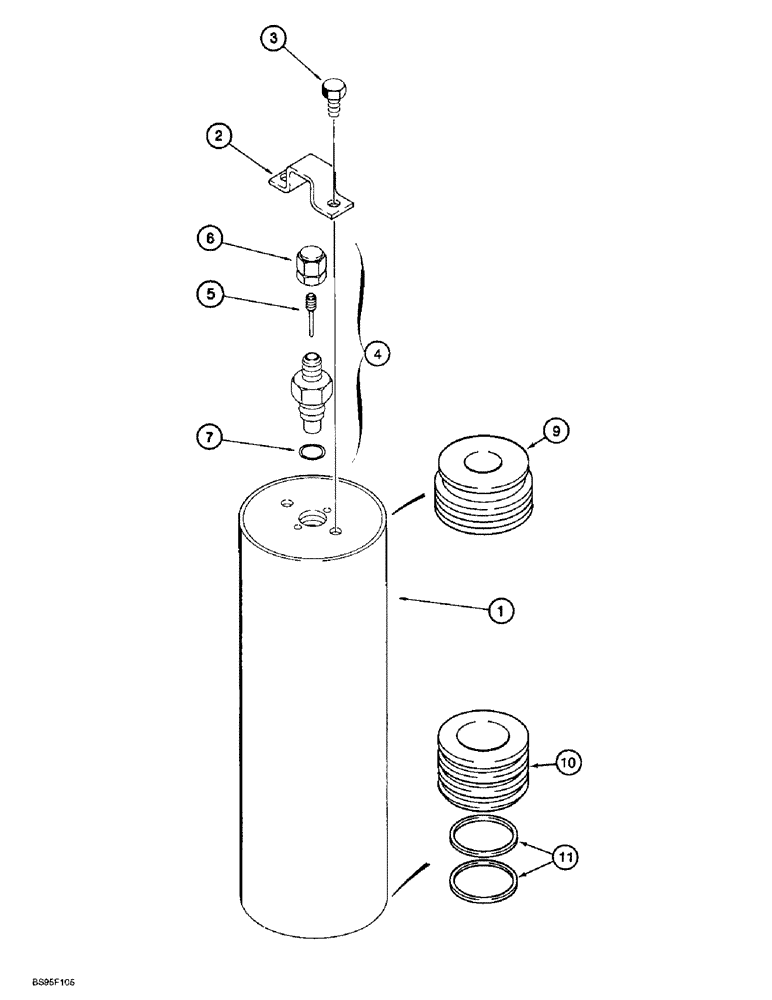

Запчасти Case 721B (7-26) - BRAKE ACCUMULATOR (07) - BRAKES

1978111C1

TANK

ACCUMULATOR ASSEMBLY - hydraulic, with welded ends, no longer available, order 128191A1 accumulator assembly, Includes: Ref. 1 - 8, 1978111C1

2шт.

1

NSS

NOT SOLD SEPARAT

TUBE - accumulator, assembly, 1978111C1

1шт.

2

1341920C1

PROTECTOR

GUARD - valve, gas, accumulator assembly, 1978111C1

1шт.

3

276-14912

SELF-TAP SCREW,Hex Hd, 3/8" x 3/4"

SCREW - self-tapping, hex head, 3/8 NC x 3/4 inch, accumulator assembly, 1978111C1

2шт.

4

1978142C1

VALVE

ASSEMBLY - charge, accumulator assembly,, Includes: Ref. 5 - 7, 1978111C1

1шт.

5

1978143C1

PISTON

CORE - valve, accumulator assembly, 1978111C1

1шт.

6

1978144C1

CAP

- valve, accumulator assembly, 1978111C1

1шт.

7

1978158C1

O-RING

- valve, accumulator assembly, 1978111C1

1шт.

8

1341919C1

SEAL KIT

KIT - seal, accumulator, not shown, assembly, 1978111C1

1шт.

128191A1

ACCUMULATOR,1.9L

ASSEMBLY - hydraulic, with threaded ends, replaces 1978111C1 accumulator assembly, Includes: Ref. 1 - 11, 128191A1

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - accumulator, assembly, 128191A1

1шт.

2

1341920C1

PROTECTOR

GUARD - valve, accumulator assembly, 128191A1

1шт.

3

276-14912

SELF-TAP SCREW,Hex Hd, 3/8" x 3/4"

SCREW - self-tapping, hex head, 3/8 NC x 3/4 inch, accumulator assembly, 128191A1

2шт.

1978142C1

VALVE

ASSEMBLY - charge, accumulator assembly, Includes: Ref. 4 - 7, 128191A1

1шт.

4

NSS

NOT SOLD SEPARAT

VALVE - accumulator charging, assembly, 128191A1

1шт.

5

1978143C1

PISTON

CORE - valve, accumulator assembly, 128191A1

1шт.

6

1978144C1

CAP

- valve, accumulator assembly, 128191A1

1шт.

7

1978158C1

O-RING

- valve, accumulator assembly, 128191A1

1шт.

8

1341919C1

SEAL KIT

KIT - seal, accumulator, assembly, 128191A1

1шт.

9

S301363

GLAND

- accumulator, assembly, 128191A1

1шт.

10

S301364

PISTON

- accumulator, assembly, 128191A1

1шт.

11

S301365

RING

- wear, teflon, piston, accumulator assembly, 128191A1

2шт.
