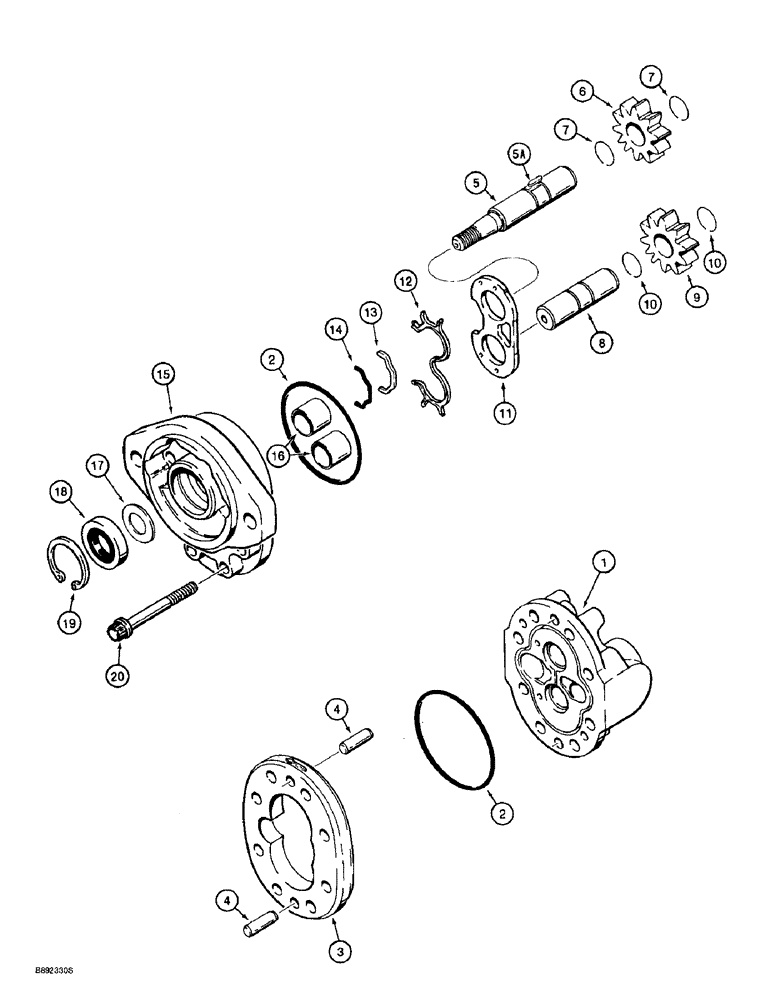

Запчасти Case 721B (7-22) - BRAKE PUMP (07) - BRAKES

S515954

PUMP, HYDRAULIC

PUMP ASSEMBLY - brake, for mounting hardware see figure 7-8, Ref. 17 and 18, Includes: Ref. 1 - 20, Serial Range: -JEE0054469

1шт.

387411A2R

REMAN-HYD PUMP

721B Serial Range: -JEE0054469 (3/93-12/98), Reman for New P/N S515954

1шт.

387411A2C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

S300370

COVER

- port end

1шт.

2

238-5041

O-RING,0.07" Thk x 2.989" ID, -41, Cl 5, 75 Duro

-041, 70 Duro, 2.989" ID x .070" Thk (Replaces H758599)

2шт.

Part of Repair kit, P/N S300373

1шт.

N13657

BODY

HOUSING ASSEMBLY - gear, Includes: Ref. 3 and 4

1шт.

3

NSS

NOT SOLD SEPARAT

BODY - gear housing

1шт.

4

71120

VALVE

PIN - dowel

2шт.

S300372

PINION

GEAR ASSEMBLY - drive, Includes: Ref. 5 - 7

1шт.

5

S300379

DRIVE SHAFT

SHAFT - drive

1шт.

5a

S300378

BUCKET TOOTH KEY

KEY - round, shaft

1шт.

6

S300375

PINION

GEAR - shaft

1шт.

7

S300377

RING, SNAP

RING - snap

2шт.

N13658

SPROCKET ASSY.

GEAR ASSEMBLY - idler, Includes: Ref. 8 - 10

1шт.

8

S300376

DRIVE SHAFT

SHAFT - idler

1шт.

9

S300375

PINION

GEAR - shaft

1шт.

10

S300377

RING, SNAP

RING - snap

2шт.

11

NSS

NOT SOLD SEPARAT

PLATE - wear

1шт.

Part of Repair kit, P/N S300373

1шт.

12

NSS

NOT SOLD SEPARAT

RETAINER - seal

1шт.

Part of Repair kit, P/N S300373

1шт.

13

NSS

NOT SOLD SEPARAT

RING - backup, seal

1шт.

Part of Repair kit, P/N S300373

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL - pump

1шт.

Part of Repair kit, P/N S300373

1шт.

S300371

COVER

ASSEMBLY - drive end, Includes: Ref. 15 and 16

1шт.

15

NSS

NOT SOLD SEPARAT

COVER - drive end

1шт.

16

S300374

BUSHING

- cover

2шт.

17

N13135

WASHER

- special

1шт.

Part of Repair kit, P/N S300373

1шт.

18

S300380

SEAL

- shaft

1шт.

Part of Repair kit, P/N S300373

1шт.

19

100-21137

SNAP RING,1.375", Int, #137

Ring, Snap, 1.375", Int, #137

1шт.

Part of Repair kit, P/N S300373

1шт.

20

380-2532

12 PT SCREW,Flg, 5/16" - 18 x 2", Gr 8

BOLT - 12 point flange, chemical locking, 5/16 NC x 2 inch

8шт.

S300373

SEAL KIT

KIT - repair, seal, includes Ref. 2, 11 - 14, and 17 - 19

1шт.

284516A1

PUMP, HYDRAULIC

PUMP ASSEMBLY - brake, not shown, production only, for service order 244573A1 pump assembly, 284516A1, Start Serial: JEE0054469

1шт.

244573A1

PUMP, HYDRAULIC

PUMP ASSEMBLY - brake, not shown, 284516A1 and 244573A1, Start Serial: JEE0054469

1шт.

87453065R

REMAN-HYD PUMP

721B CASE WHEEL LOADER (NORTH AMERICA), PUMP ASSEMBLY - brake, Start Serial: JEE0054469 (3/93-12/98), Reman for New PN 244573A1

1шт.

87453065C

CORE-HYDRAULIC PUMP

Return Number

1шт.

258247A1

SEAL KIT

KIT, SEALS, services 284516A1 or 244573A1, pump assembly, Includes: Ref. 21 - 24

1шт.

21

NSS

NOT SOLD SEPARAT

SEAL - lip, not shown

1шт.

22

NSS

NOT SOLD SEPARAT

SEAL - section, not shown

2шт.

23

NSS

NOT SOLD SEPARAT

SEAL - channel, not shown

2шт.

24

NSS

NOT SOLD SEPARAT

SEAL - backup, not shown

2шт.
