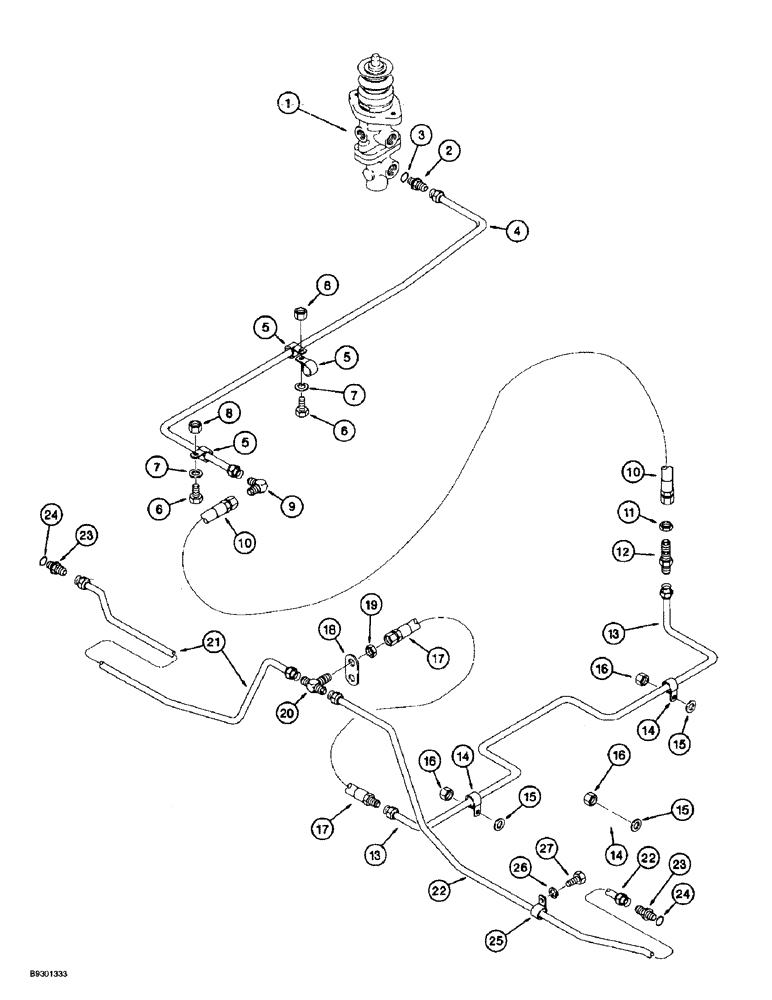

Запчасти Case 721B (7-18) - MAIN BRAKE HYDRAULIC CIRCUIT, MAIN BRAKE VALVE TO REAR AXLE, PRIOR TO P.I.N. JEE051723 (07) - BRAKES

1

L129699

VALVE

ASSEMBLY - brake, main, parts list figure 7-24

1шт.

2

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss, Includes: Ref. 3

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

107305A1

TUBE,9.53 mm OD, 885, 187 mm Length

- valve to hose

1шт.

5

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

Closed 3/8", Insul, 3/8" Bolt

3шт.

6

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

2шт.

7

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

8

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC

2шт.

9

218-473

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male JIC

- 90 degree, 9/16-18 inch flare x flare

1шт.

10

107372A1

HOSE ASSY.

HOSE - 280 mm (11 inch) long, rear brakes, Serial Range: tube-tube

1шт.

11

218-1254

LOCK NUT,Blkhd, 9/16"-18

NUT - hex, lock, bulkhead, 9/16 inch NF

1шт.

12

218-673

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

ADAPTER - straight, 9/16-18 inch flare x bulkhead flare

1шт.

13

107439A1

TUBE,9.5 mm OD, 623, 103 mm Length

- hose to tee at axle

1шт.

14

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

Closed 3/8", Insul, 3/8" Bolt

2шт.

15

187563A1

SPACER

- 13 x 25 x 28 mm

2шт.

16

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC

2шт.

17

192825A

HOSE - 745 mm (29-1/2 inch) long, tube to tee at rear axle

1шт.

18

107334A1

BRACKET

- tube mounting, use bolt from rear, Serial Range: axle-mount

1шт.

19

218-1254

LOCK NUT,Blkhd, 9/16"-18

NUT - hex, lock, bulkhead, 9/16 inch NF

1шт.

20

218-804

TEE,9/16"-18, 37 Degree, Blkhd

- 9/16-18 inch bulkhead flare branch x flare x flare

1шт.

21

107428A1

TUBE

- left-hand

1шт.

22

107430A1

TUBE

- right-hand

1шт.

23

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss, Incl. Ref. 24

2шт.

25

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

- P-type, 7/16 inch, rear brake, replaces S64985

4шт.

26

492-11038

LOCK WASHER,3/8"

4шт.

27

413-68

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

4шт.

24

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
